6.2 Mounting overview
The following figure is showing examples of possible design.

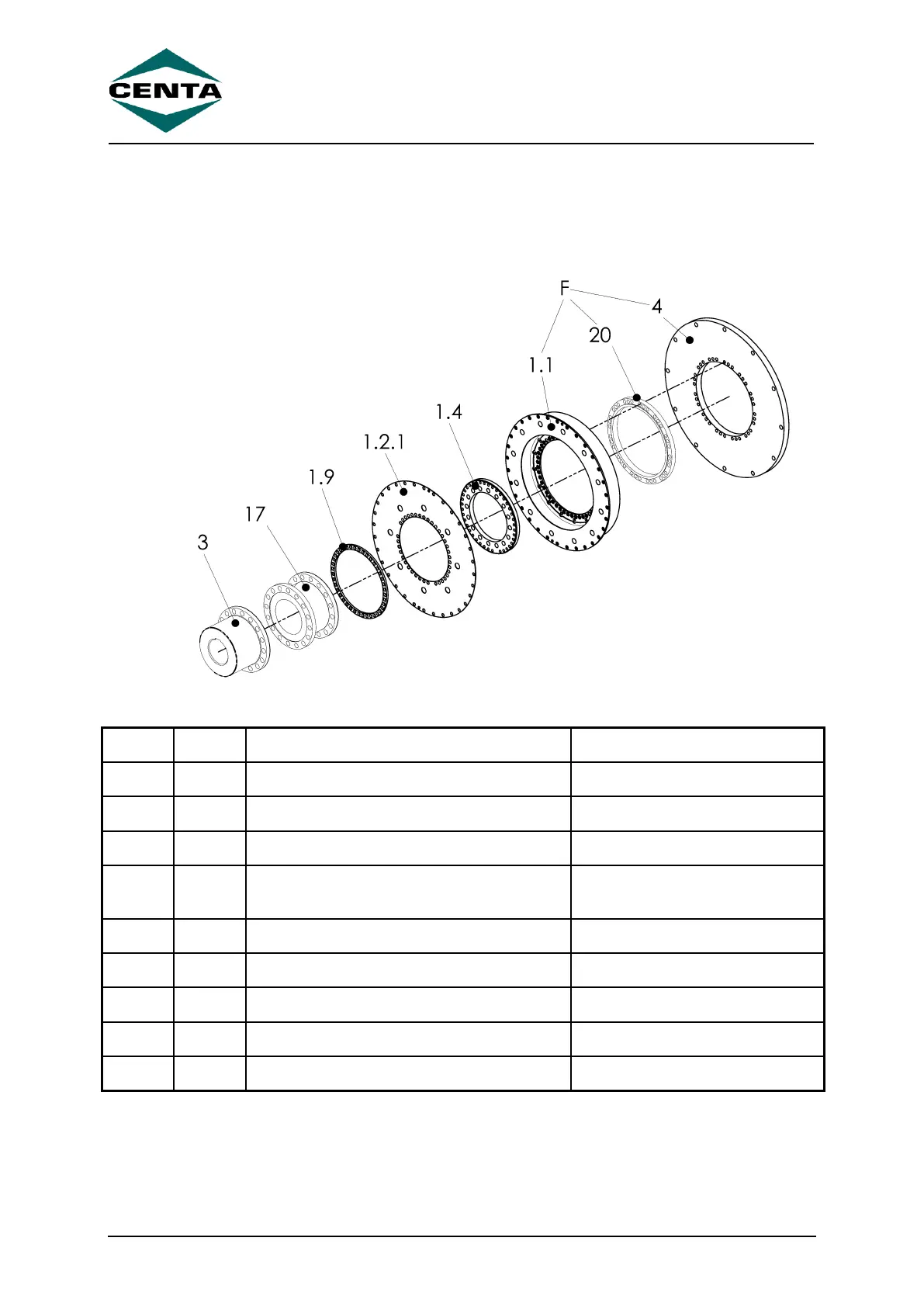

Fig. 6-1 Example: 020G-00050...00090-F.10
Item
Info
Designation
Remark
1.1
Rubber element
1.2.1
Membrane
1.4
Ring
1.9
Ring
Design and size see
installation drawing
3
Hub
If scope of supply
4
Adapter
17
Adapter
If scope of supply
20
Ring
If scope of supply
F
Rubber element assembly
Pre-mounted by CENTA
