6.10.2 Mounting the adapter (4) to the flywheel

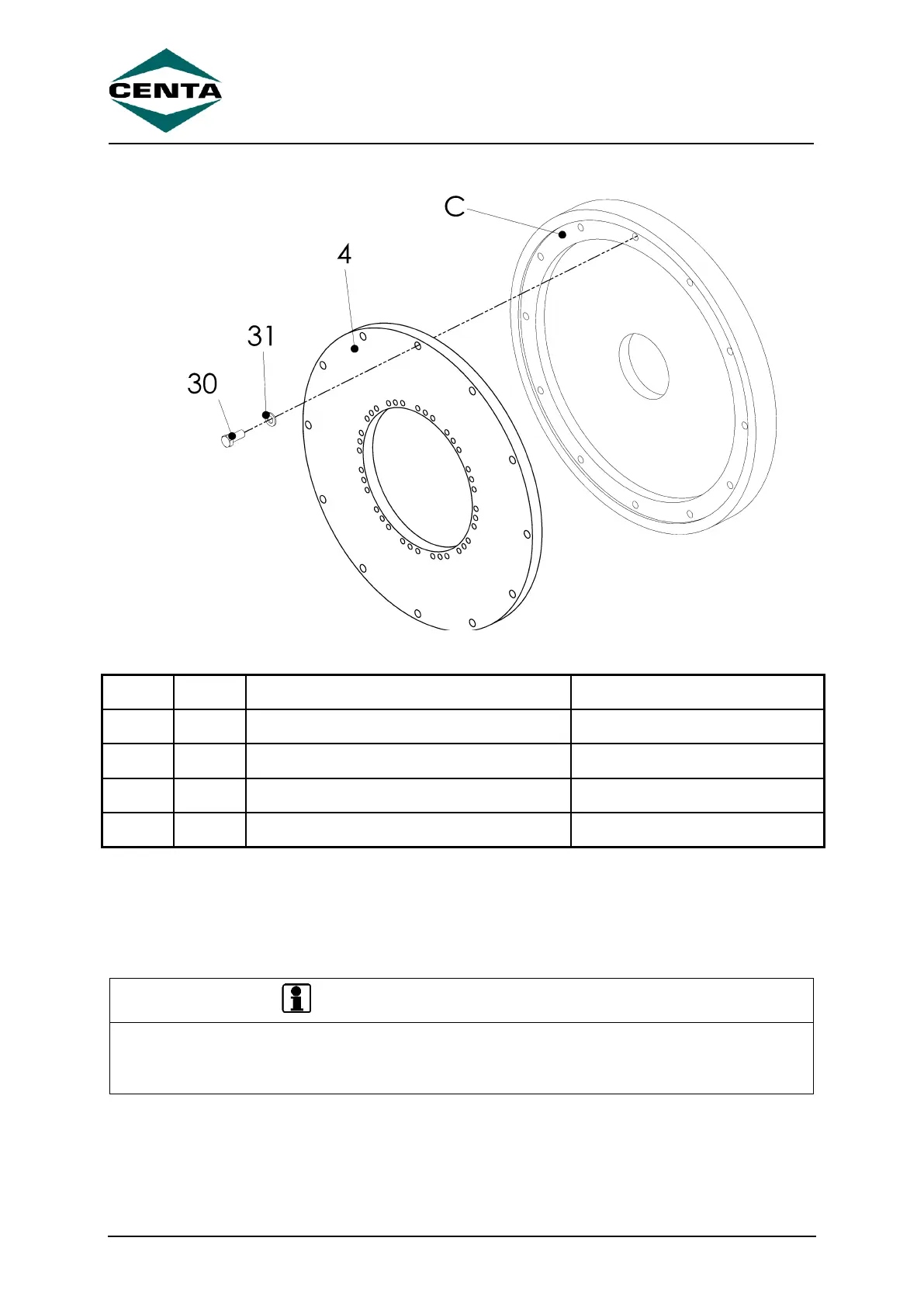

Fig. 6-9 Mounting the adapter (4) to the flywheel
Item
Info
Designation
Remark
4
Adapter
31
Washer
If ordered
30
Screw
If ordered
C
Flywheel
Customer part
 Push the adapter (4) into the centring of the flywheel (C).
 Screw the adapter (4) to the flywheel (C) using the screws (30) and the
washers (31).
IMPORTANT
Tightening torques for elements to connect couplings with customer parts could deviate
from CENTA data sheet D013-013.
Consider specifications on installation drawing.
