6.6 Positioning the membrane (1.2.1)

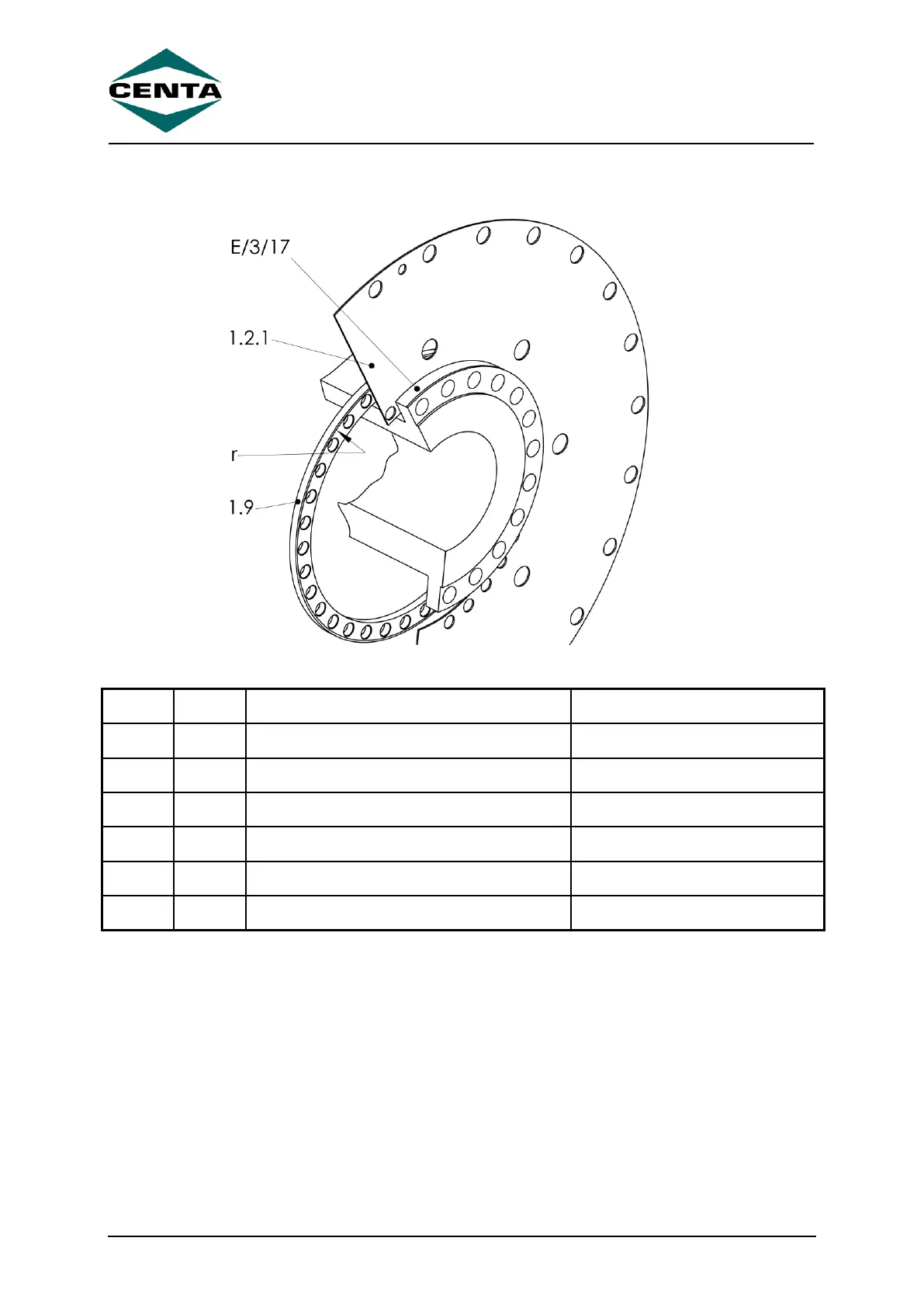

Fig. 6-5 Positioning the membrane (1.2.1)
Item
Info
Designation
Remark
1.2.1
Membrane
1.9
Ring
Only at sizes 00050…00075
3
Hub
If scope of supply
17
Adapter
If scope of supply
E
Flange
Customer part
r
Radius
 Position the membrane (1.2.1) as appropriate for the coupling size supplied
(see installation drawing).
 Positioning the membrane and the ring
(coupling sizes 00050…00075)
Place the ring (1.9) and the membrane (1.2.1) on the flange/hub/adapter
(E/3/17; see installation drawing).
The radius (r) of the ring (1.9) must point towards the membrane
(1.2.1).
 Positioning the membrane (coupling sizes 00078…00090)
Place the membrane (1.2.1) on the flange/hub/adapter (E/3/17; see
installation drawing).
