6.12.2 Mounting the membrane (coupling sizes 00078…00090)

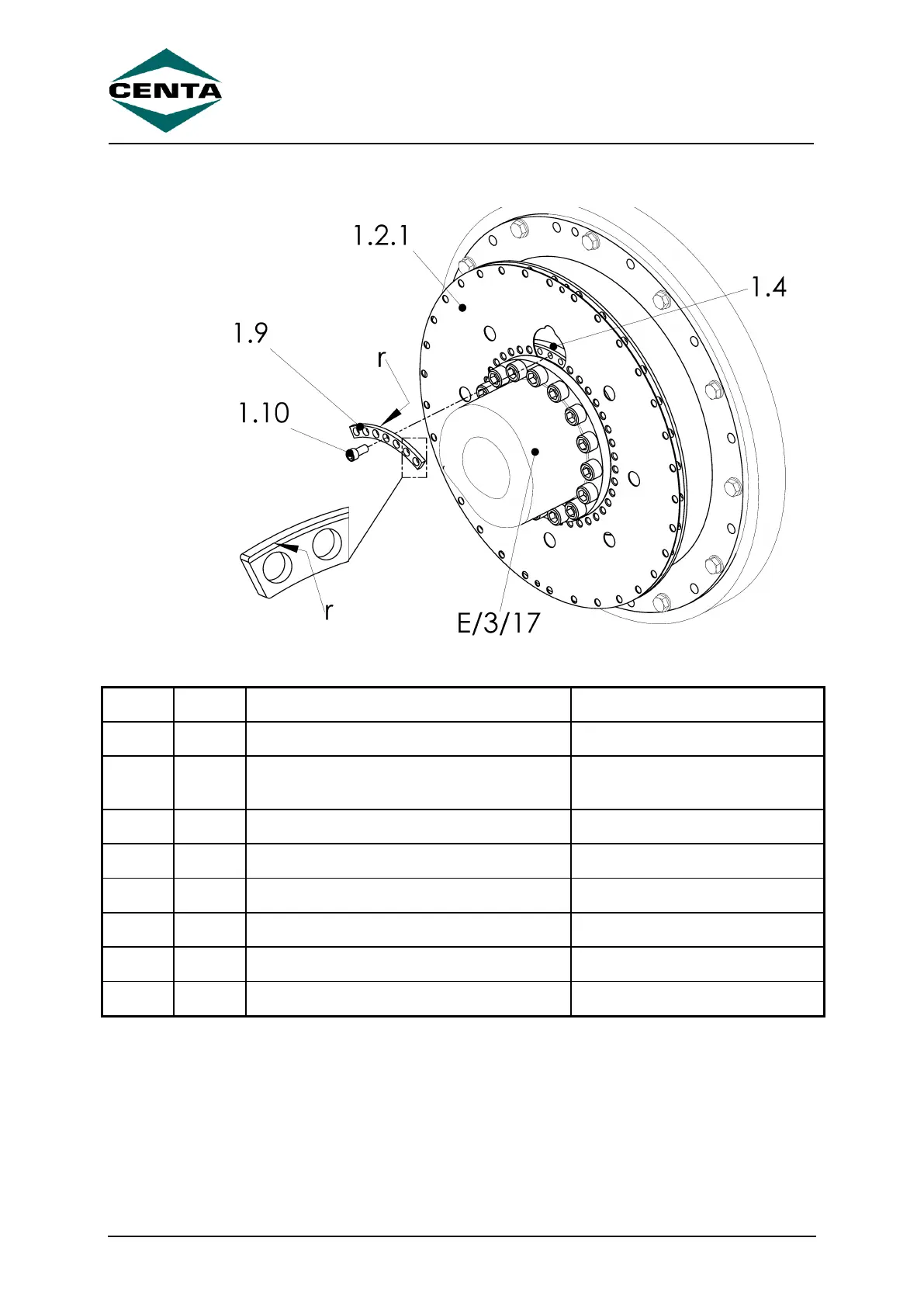

Fig. 6-13 Mounting the membrane (coupling sizes 00078…00090)
Item
Info
Designation
Remark
1.2.1
Membrane
1.4
Ring
Covered by membrane
(1.2.1)
1.9
Ring (segmented)
1.10
Screw ISO4762-10.9
3
Hub
If scope of supply
17
Adapter
If scope of supply
E
Flange
Customer part
r
Radius
 Push the membrane (1.2.1) onto the centring of the flange/hub/adapter
(E/3/17).
 Screw the ring (segmented; 1.9) and the membrane (1.2.1) to the
ring (1.4) using the screws (1.10).
The radius (r) of the ring (segmented; 1.9) must be on the side of the
membrane (1.2.1).
 Repeat the mounting section above, until the ring (segmented; 1.9) is
completely mounted.
