Assembly and operating instructions
CENTAX-G
020G-00050…00090-F.10
M020-00009-EN
Rev. 4
CENTA Antriebe Kirschey GmbH 24 / 52
6.3 Mounting the hub (3; if existing)
 Mount the hub (3) as appropriate for the supplied design (see installation
drawing):
 Mounting the hub with cylindrical bore and keyway, see chapter 6.3.1.
 Mounting the hub with conical oil interference fit, see chapter 6.3.2.
6.3.1 Mounting the hub with cylindrical bore and keyway

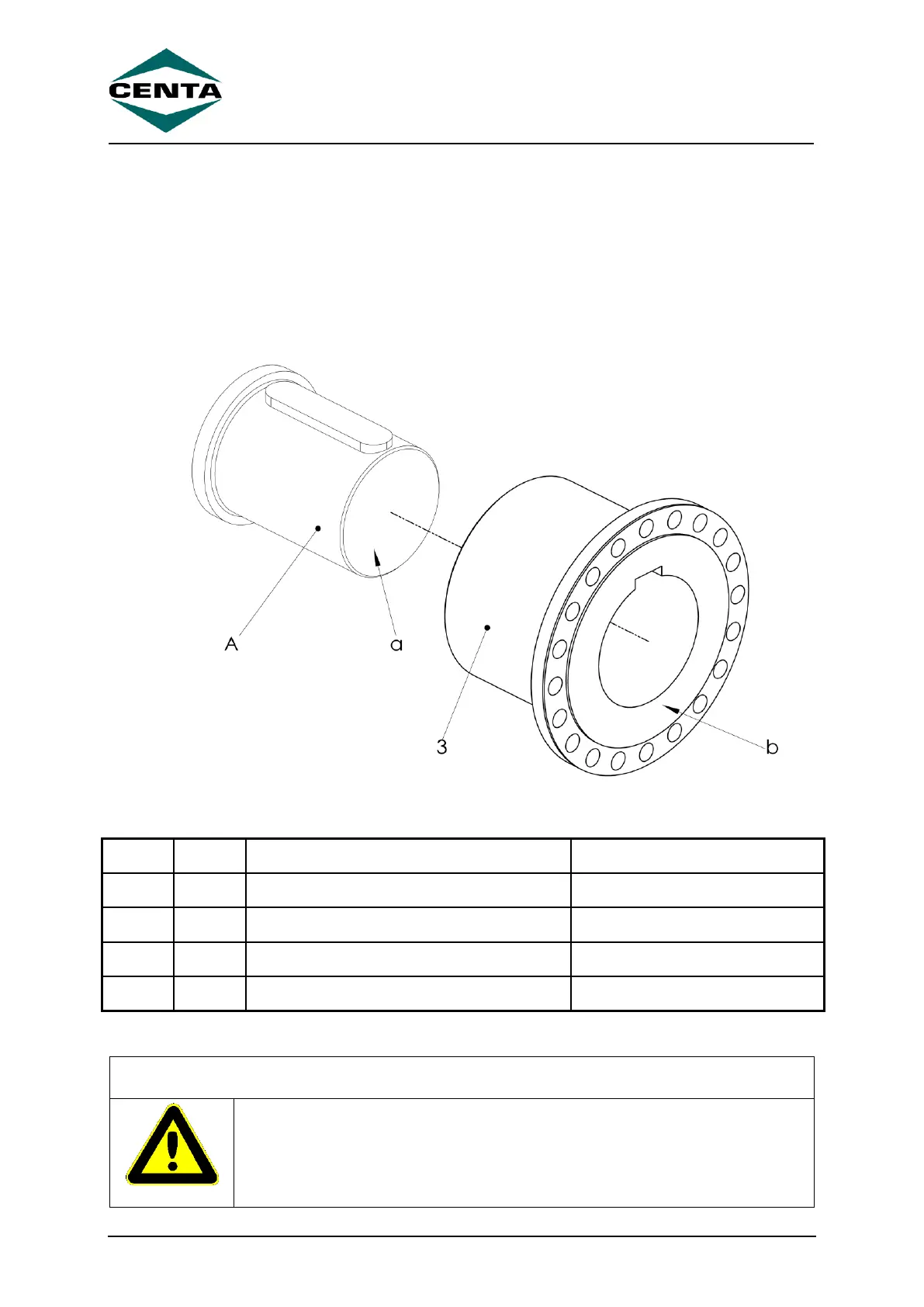

Fig. 6-2 Mounting the hub with cylindrical bore and keyway
Item
Info
Designation
Remark
3
Hub
A
Shaft
Customer part
a
Face of shaft
b
Face of hub
CAUTION
Material damage can occur as a result of:
 Incorrect heating of the hubs/flange hubs
Heat the hubs/flange hubs steadily in an oil bath, a fan oven, on an
electric hot plate, either inductive or with a flame (ring burner).
