6.7 Positioning the ring (1.4) inside the rubber element (1.1)

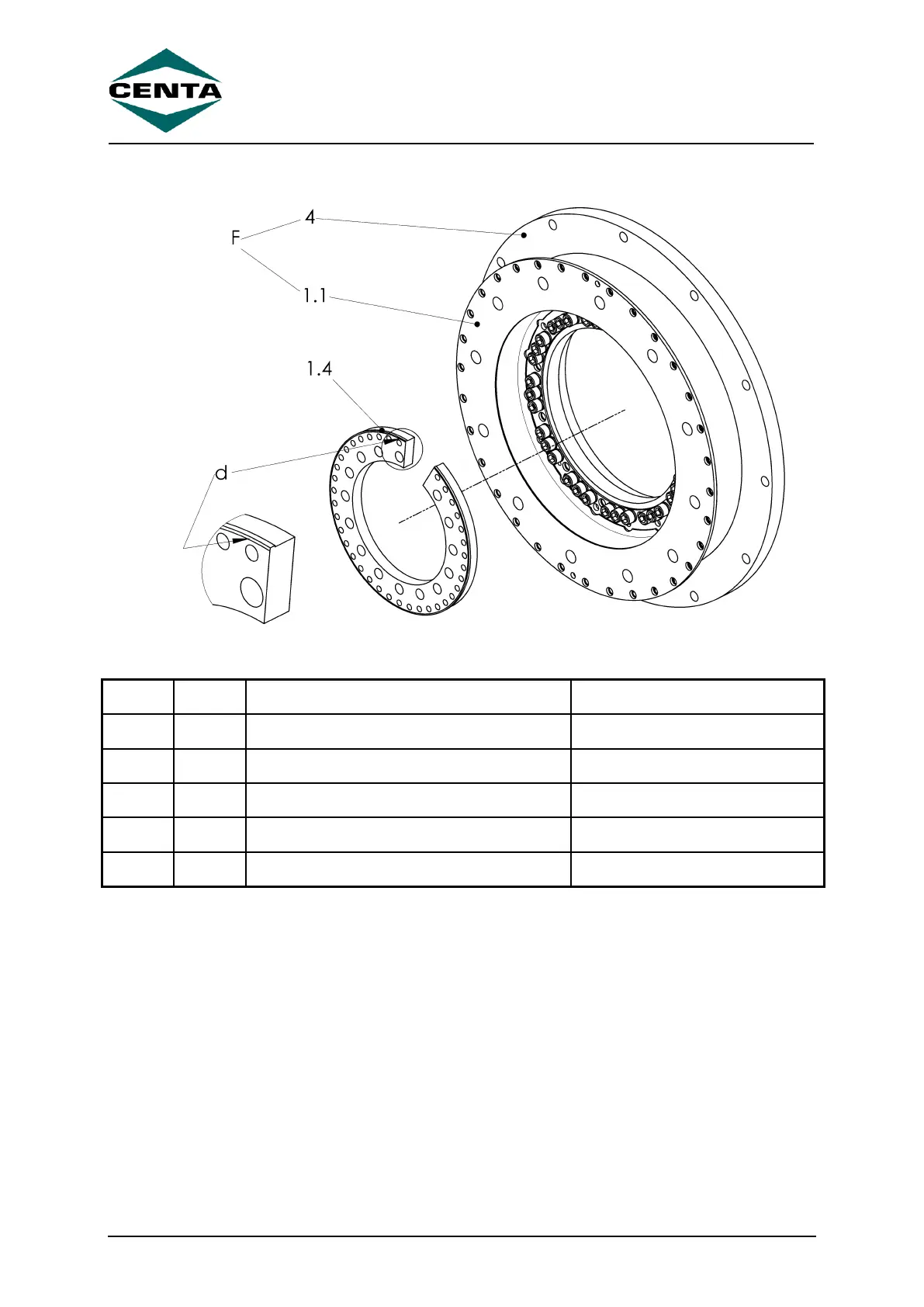

Fig. 6-6 Positioning the ring (1.4) inside the rubber element (1.1)
Item
Info
Designation
Remark
1.1
Rubber element
1.4
Ring
4
Adapter
F
Pre-mounted rubber element
Pre-mounted by CENTA
d
Radius
 Loosely place the ring (1.4) inside the rubber element (1.1).
The radius (d) must be directed outwards.
6.8 Mounting the rubber element and the adapter
 Mount the rubber element and adapter (4) as appropriate for the type
supplied (see installation drawing):
 Mounting the pre-mounted rubber element (F) to the flywheel,
see chapter 6.9.
 Mounting the rubber element (1.1), the ring (20; if existing) and the
adapter (4) to the flywheel, see chapter 6.10.
