CENTRALINE I/O MODULES – INSTALLATION & COMMISSIONING INSTRUCTIONS
13 EN1Z-0973GE51 R0119
NOTICE
Risk of malfunction!
► Wire Panel Bus I/O modules and LONWORKS Bus
I/O modules separately.
► When using both Panel Bus and LONWORKS Bus
I/O modules in a CentraLine controller system,
L
ONWORKS Bus I/O modules must be connected to the
controller via LON terminals 11 … 14.
Position the bridge connector on terminals 71 … 74 of the
right hand terminal socket or mixed I/O module or controller
and on terminals 75 … 78 of the left hand terminal socket or
mixed I/O module or controller. Then press the bridge
connector down.

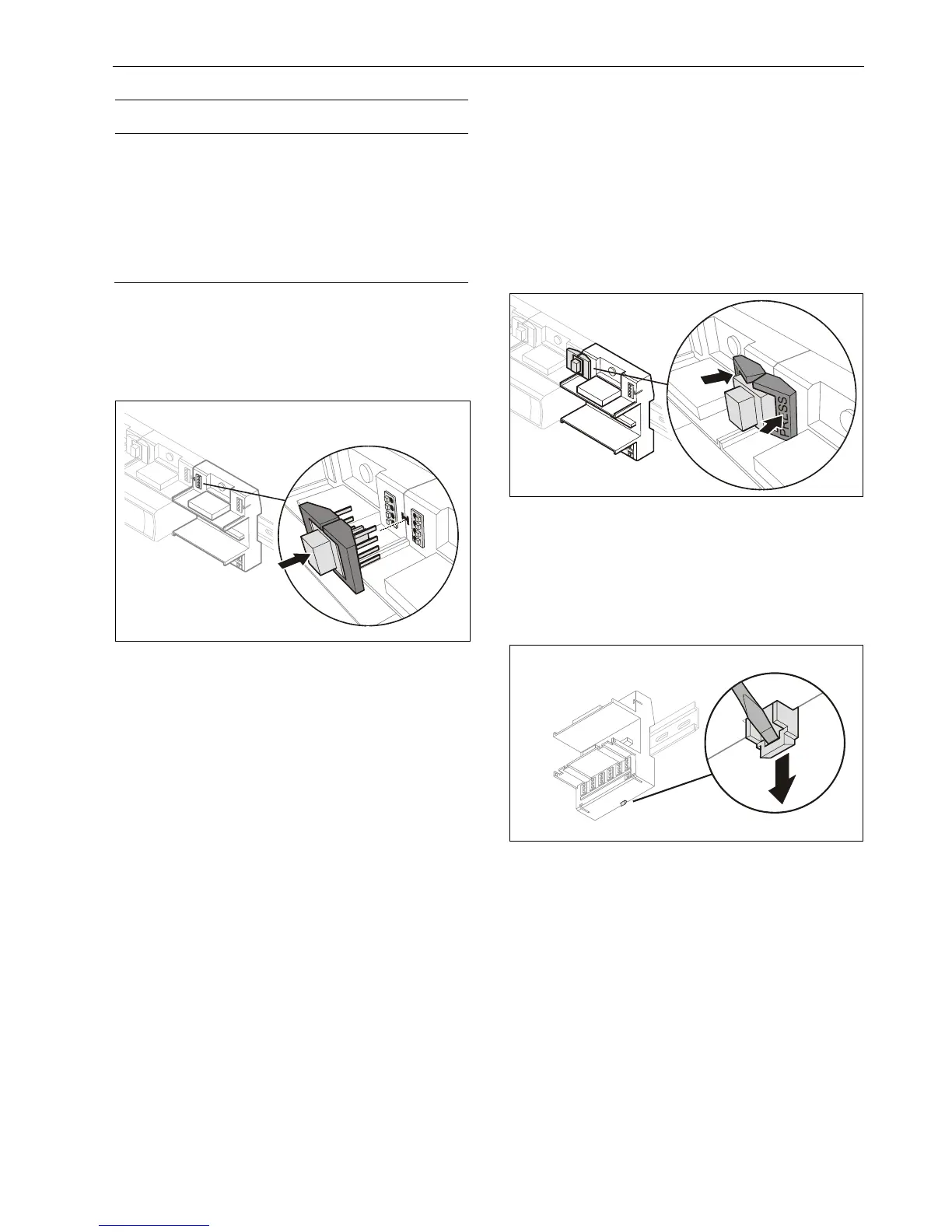

Fig. 8. Connecting terminal sockets with bridge
connector
NOTE: Bridge connectors transmit both communication
signals and power supply between modules.
Removing bridge connectors will thus interrupt
the transmission of both communication signals
and power supply between the modules.
Dismounting Sockets
Disconnecting Sockets
Release all bridge connectors before removing the controller
module and/or the terminal sockets and/or mixed I/O
modules from the DIN rail.
► Press down at the same time both the gray side wings
next to the red button and then pull the bridge connector
out of the module.
Fig. 9. Releasing bridge connectors
Dismounting Controller / Terminal Sockets / Mixed
I/O Modules
► Insert a screwdriver into the latch on the underside of the
module and lever the red latch 2–3 mm downwards. The
module can then be swung away from the rail.
Fig. 10. Releasing latch
