CENTURION SYSTEMS R6 - Product Identification and Components

page 11 www.centsys.com
PRODUCT IDENTIFICATIONSECTION 3
3. Product Identication

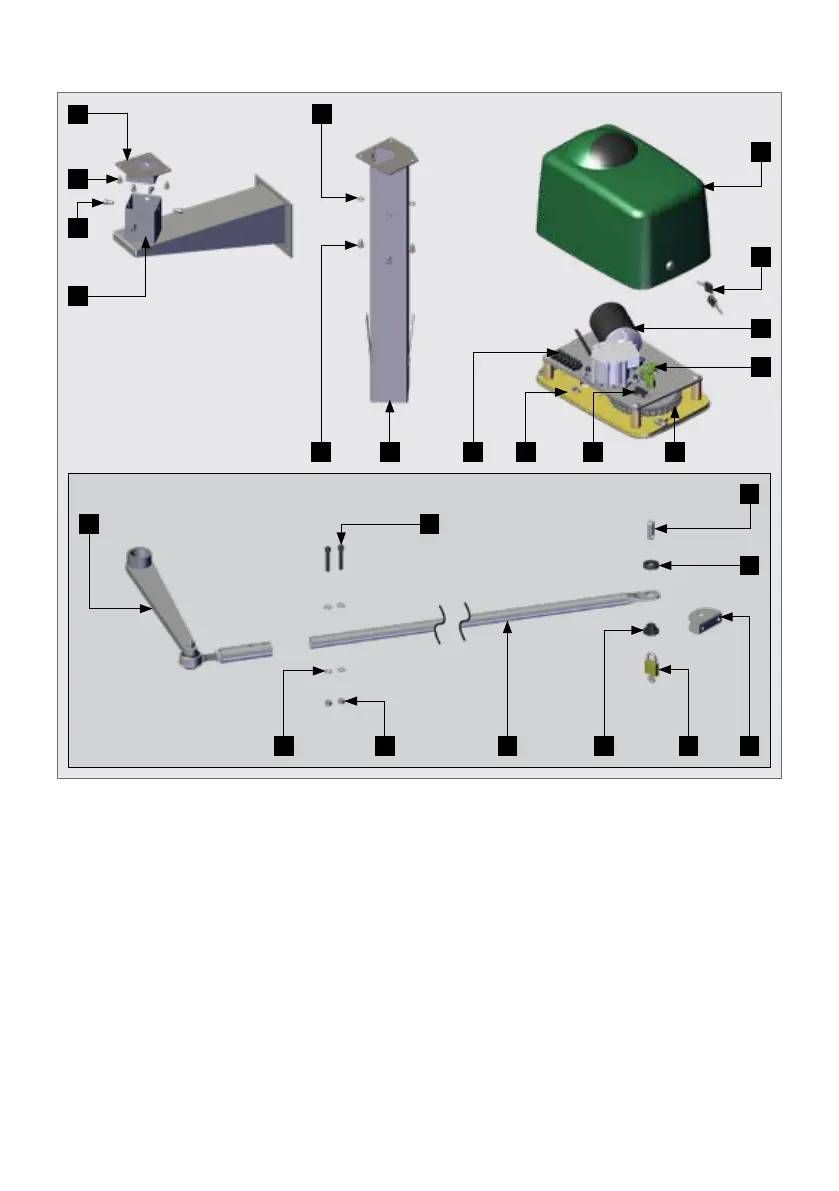

FIGURE 2. PRODUCT IDENTIFICATION - R6
15
3
2
1
14
4
2
16
5
17
24
18 19 20 21
22
23
13
1. Pedestal Adapter
2. M8x16 Button Head Bolt
3. M10x20 Bolt
4. Wall Mount Pedestal
5. Pedestal
6. Electrical Connection Block
7. Base Plate
8. Limit Switch
9. 08B Drive Chain
10. Limit Arm
11. 12V DC Electric Motor
12. Keys
13. Cover
14. M8 Washer
15. Drive Arm
16. M8 Washer (x4)
17. M8 Nut (x2)
18. Connecting Arm
19. Connecting Arm Bush (Bottom)
20. Padlock and Key
21. Gate Bracket
22. Connecting Arm Bush (Top)
23. Clevis Pin
24. M8x50 Socket Head Cap Screw (x2)
DRIVE AND CONNECTING ARM ASSEMBLY
87
9
6
12
11
10
