7. Electrical Connections

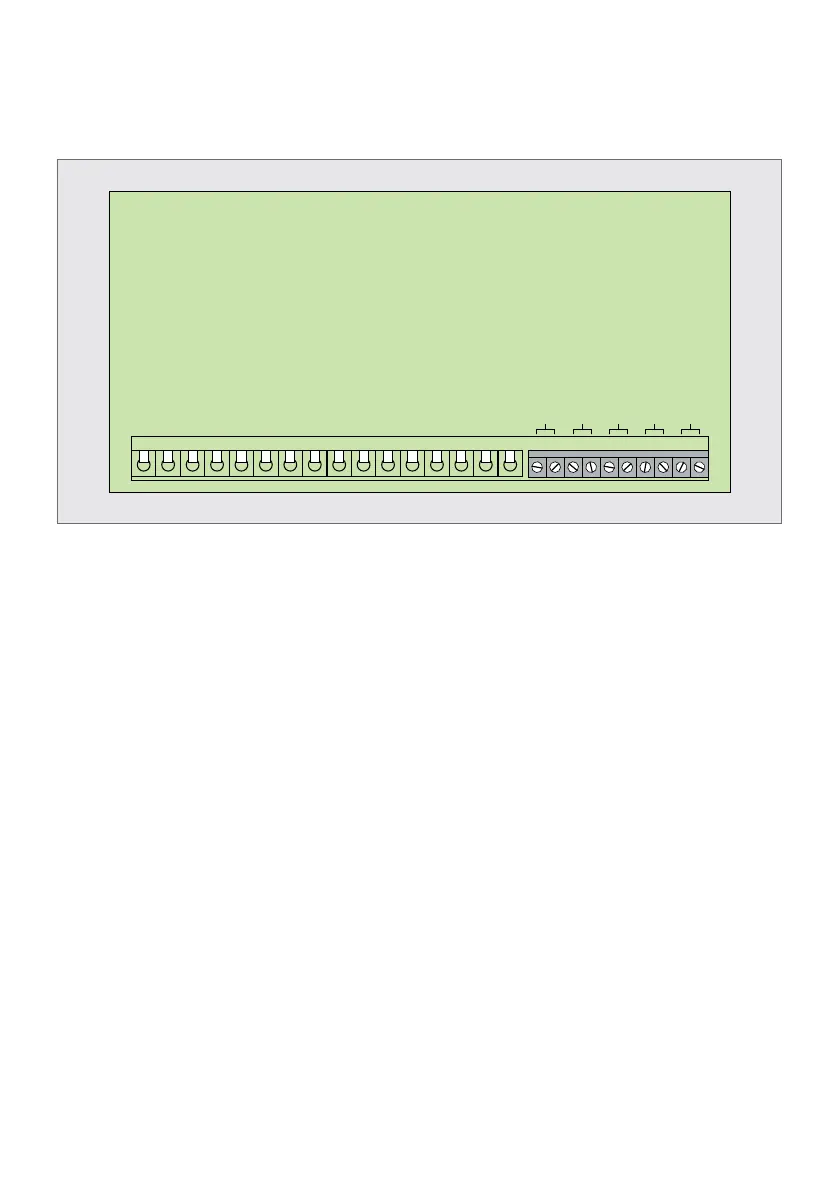

7.1. CP77 Controller
Double/single swing controller with multiple features.
3. NORMAL TRIGGER
2. HOLIDAY LOCKOUT
4. FREE EXIT LOOP
5. AUTO CLOSE CONTROL
6. PILLAR LIGHT OVER-RIDE
7. REMOTE STATUS LED
8. INFRA-RED BEAM
9. MASTER LIMIT SW OPEN
10. MASTER LIMIT SW CLOSED
11. SLAVE LIMIT SW OPEN
12. SLAVE LIMIT SW CLOSED
13. + 12V DC, 3A AUX SUPPLY
14. SOLENOID STRIKE
15. 15V AC SUPPLY
16. 15V AC SUPPLY
PILLAR LIGHT CONTACT
(Potential Free)
SIGNAL COMMONS
(NEG)
SLAVE MOTOR
BATTERY
- +
MASTER MOTOR
FIGURE 30
ELECTRICAL CONNECTIONSSECTION 7
