CENTURION SYSTEMS R6 - Wall Mount Pedestal Installation (Inward Opening)

page 24 www.centsys.com
6.4. Wall Mount Pedestals (Gate Inward Opening)
Step 1 - 3
To determine the gate opening angle
and dimension “C” for positioning
the Gate Bracket, refer to page 16 to
17 (steps 1-3).
Step 4
AxtheGateCrackettothegate
using Dimension “C” from the hinge
centre line, then mark “S4” on the
ground using a plumb bob.

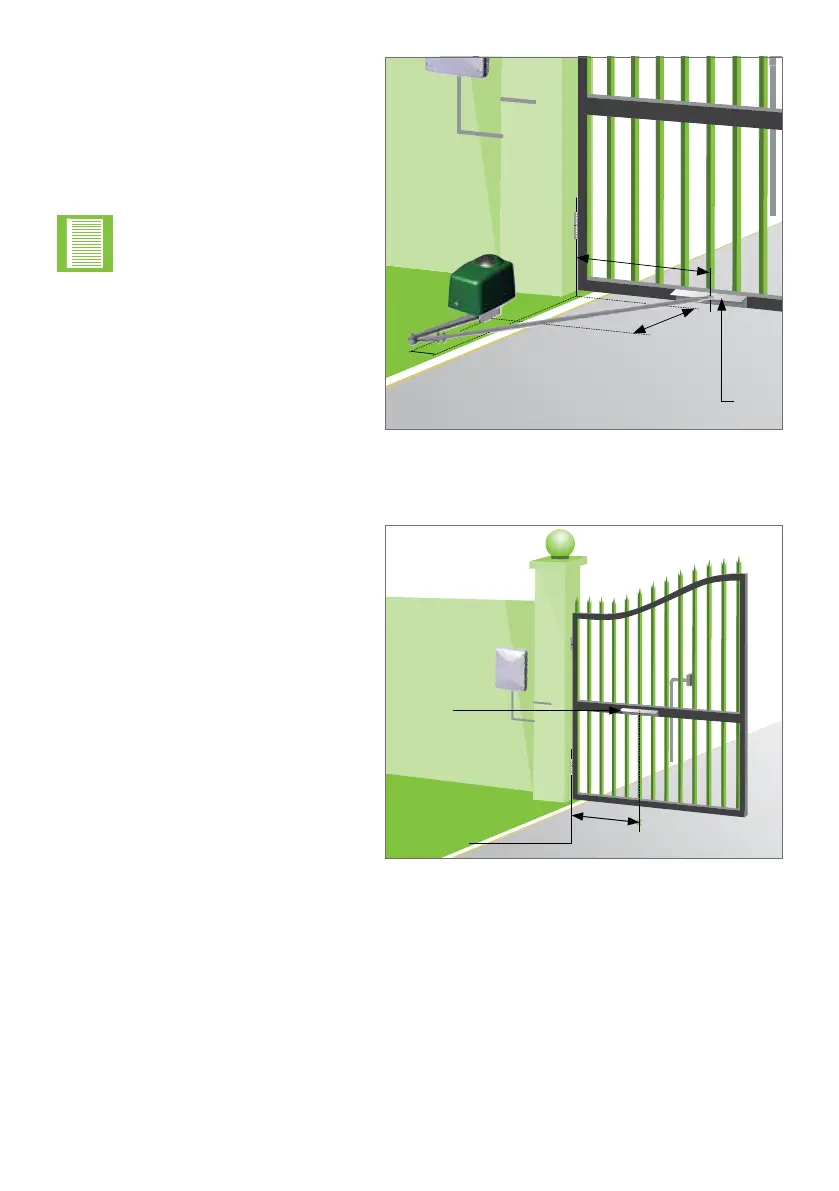

FIGURE 20. POSITIONING GATE BRACKET
Hinge
centreline
Gate
Bracket
S4
C
OPERATOR INSTALLATIONSECTION 6
•
Critical Dimensions
The Gate opens outwards
but motor remains inside
property
250mm Drive Arm must
be used
Long Connecting Arm
required
•
•
FIGURE 19. OUTWARD SWING - DRIVE ARM
SHOWN IN GATE CLOSED POSITION
84mm
743mm
743mm
Gate
bracket
