page 29 www.centsys.com
Motor 1
(MASTER)
Motor 2
(SLAVE)

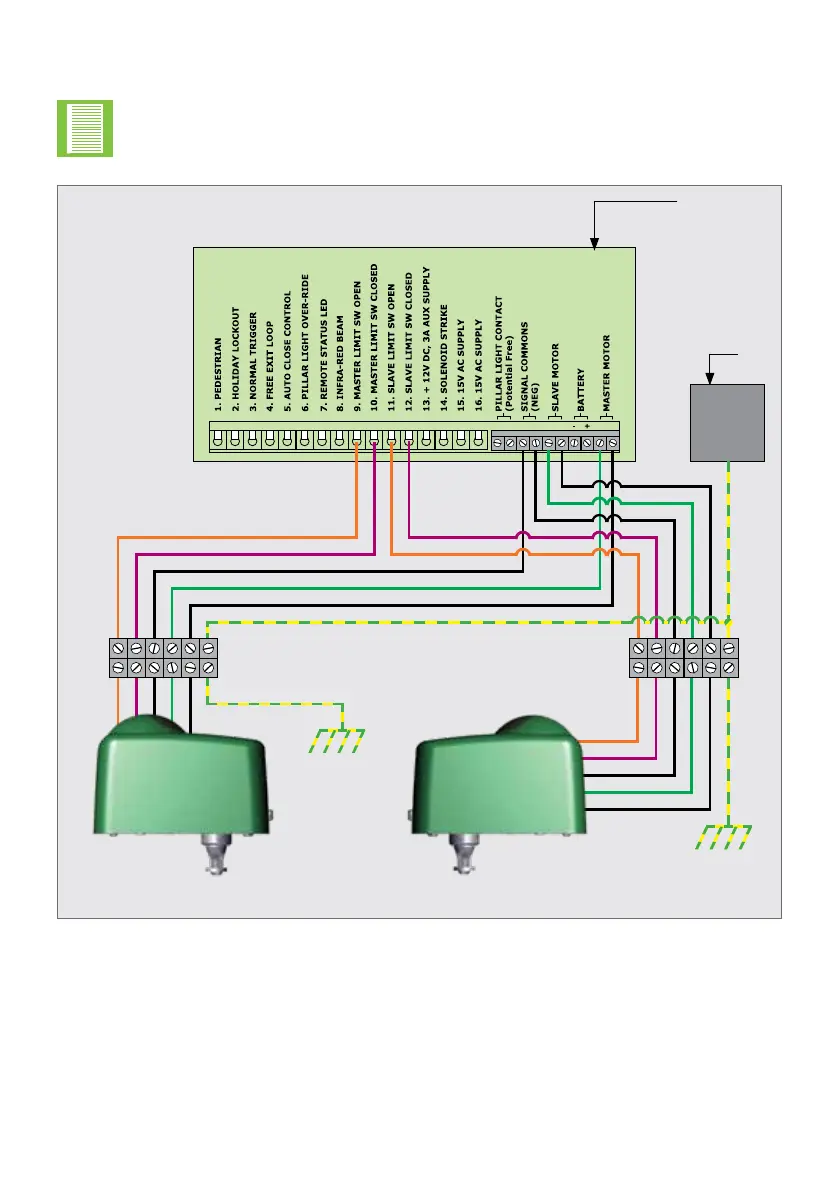

7.2. Motor and Limit Switch Connections
MOTOR FUSE RATING - 8A Slow Blow.
CP77 Control
Card
PSU
FIGURE 31. CP77
