CENTURION SYSTEMS R6 - Standard Pedestal Positioning (Inward Opening)

page 16 www.centsys.com
6.2. Mounting the Control Box
1. Remove chassis plate.
2. Mount enclosure to wall.
3. Drill cable entry holes.
4. Replace chassis plate and wire
equipment.
5. Use cable glands to protect the
cables passing through the box.
Control Box preferably
mounted at eye level.
6.3. Standard Pedestal Positioning (Gate Inward Opening)
Step 1
Measure 1 metre along gate and
mark “S1” on the ground.

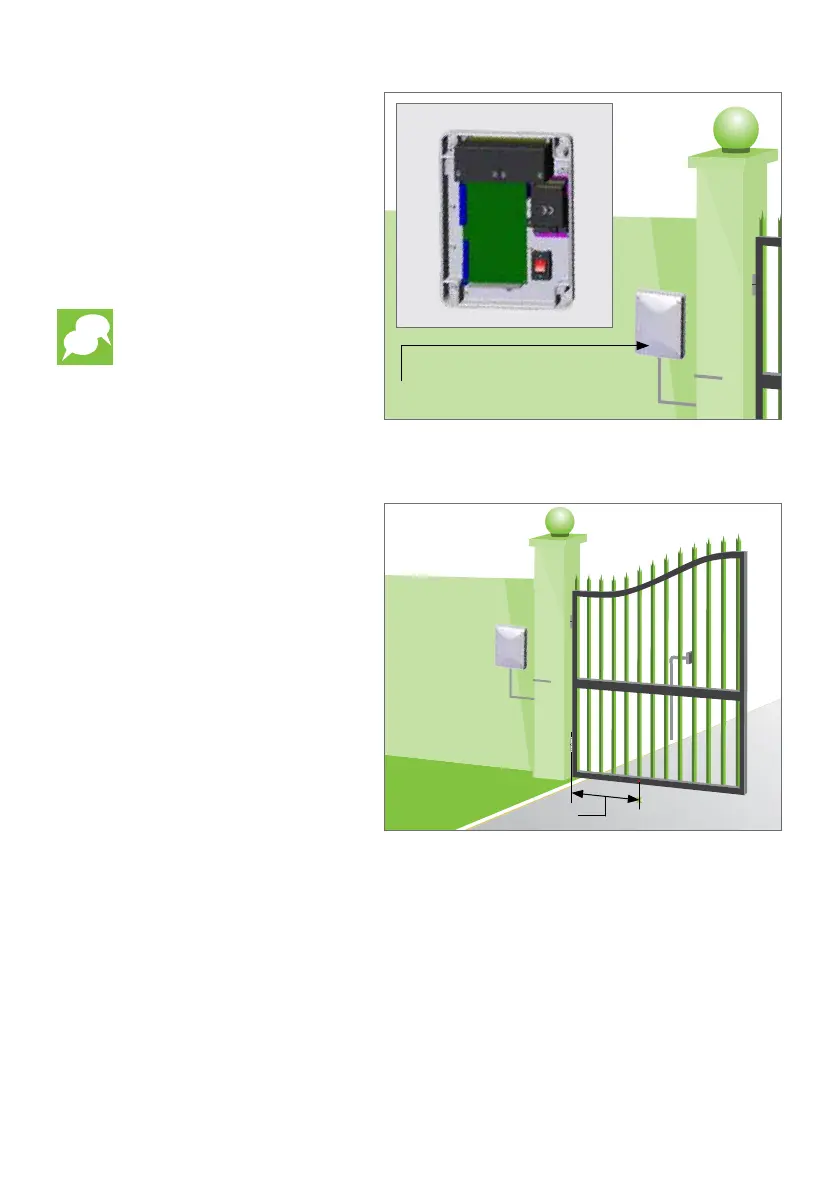

FIGURE 7. DETERMINE GATE OPENING ANGLE
FIGURE 6. MOUNTING CONTROL BOX
1 Metre
S1
Control
box
OPERATOR INSTALLATIONSECTION 6
CONTROL BOX
