CENTURION SYSTEMS R6 - Solar Panel

page 40 www.centsys.com

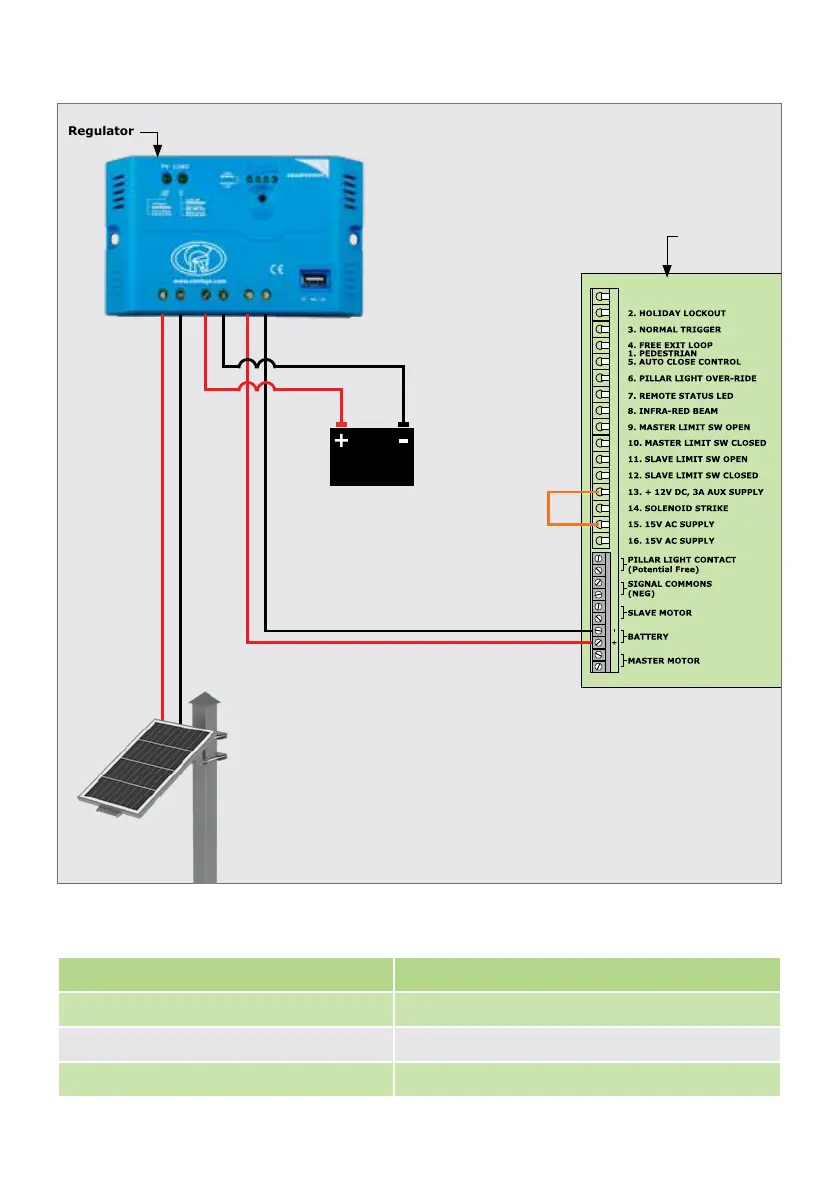

FIGURE 49
Solar
Regulator
Specied
Solar Battery
Battery: 33Ah - 200Ah
*
Solar Panel: 20W - 150W
Solar Panel Bracket: 20W - 150W
+ -
CP77 Control
Card
Angle
1
Location
30° Johannesburg
40° Gqeberha(PortElizabeth)&EastLondon
45° Cape Town
TABLE 7
7.17. Solar Panel
ELECTRICAL CONNECTIONSSECTION 7
1. Solar Panels should be north-facing and tilted to these angles.
* In a Solar application if the R6 statuses need to be monitored, the Mains Fail 2 Flash indication can be suppressed by linking the +12V DC
output to one of the 15 V AC Supply inputs as indicated in the image.
