CENTURION SYSTEMS R6 - Status LED

page 37 www.centsys.com

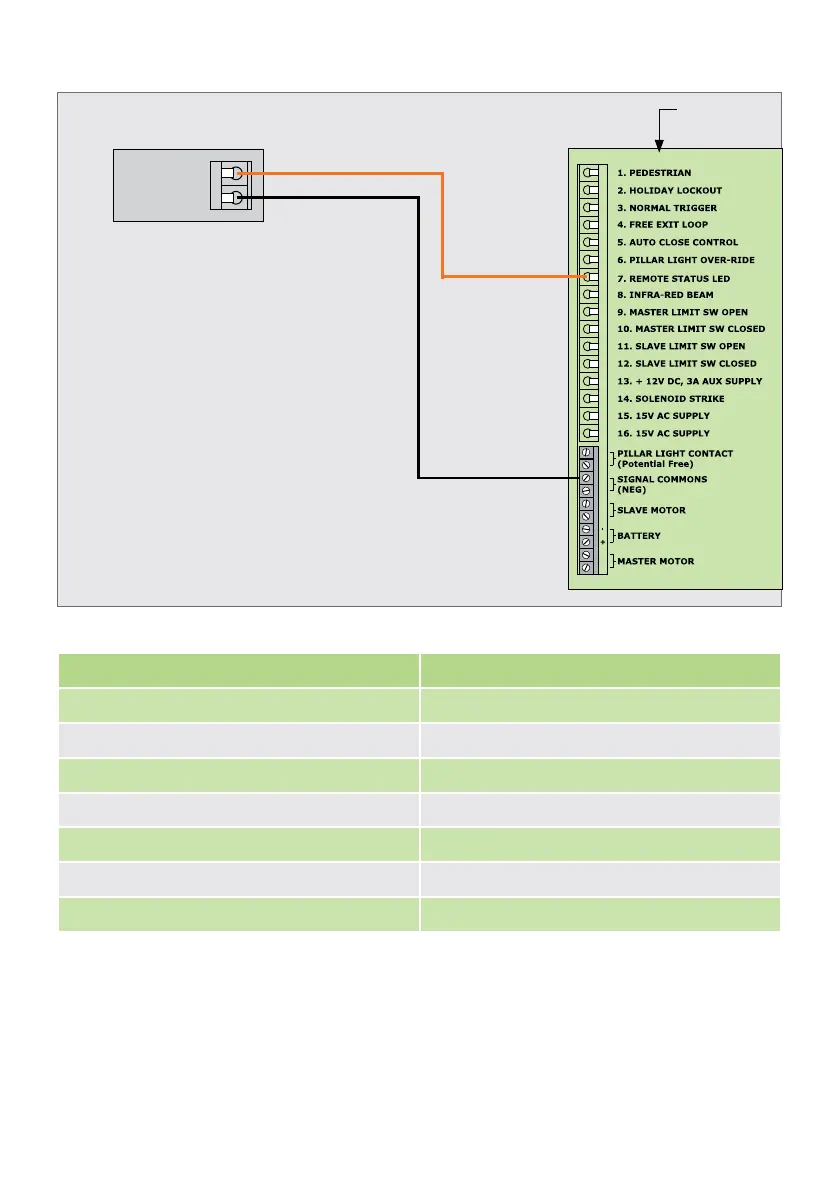

FIGURE 44
CP77 Control
Card
CATHODE -
ANODE +
Status LED
Gate Status LED Indication
Mains Loss 2ashes/2sec
Battery Low 3ashes/2sec
Collision Detection 4ashes/2sec
Gate Closed O
Gate Open On
Gate Opening Slowevenash
Gate Closing Fastevenash
TABLE 6
7.13. Status LED
ELECTRICAL CONNECTIONSSECTION 7
