CENTURION SYSTEMS R6 - Solenoid Lock; Magnetic Lock

page 32 www.centsys.com
ELECTRICAL CONNECTIONSSECTION 7

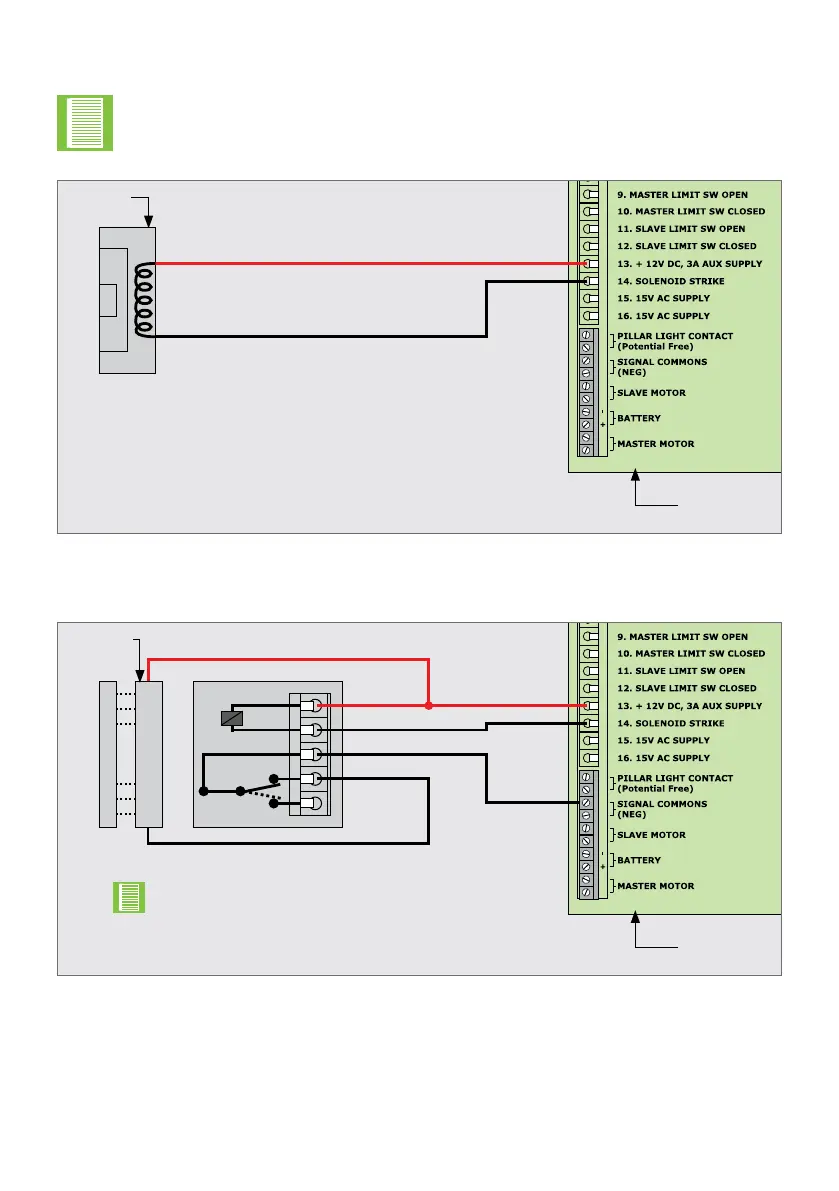

FIGURE 36. OPTION 2
CP77 Control
Card
12V +
SOL
COM
Magnetic
Lock
NO
NC
COM
COIL
12V RELAY
N
S
7.6. Magnetic Lock
MAGNET SUPPLY
Could be +12V from gate motor battery depending on
the type of magnetic lock used.
A Solenoid lock is used typically on single and double swing gates.
FIGURE 35. OPTION 1
CP77 Control
Card
Solenoid
Lock
12V +
SOL
7.5. Solenoid Lock
