CENTURION SYSTEMS R6 - Holiday Lockout

page 35 www.centsys.com
CP77 Control
Card
CP77 Control
Card
12V +
NEG
LOCK
NO
NC
COM
OR
COIL
12V RELAY
Pushbutton keypad
NEG
LOCK
2 Position Switch
CENTURION Receiver
FIGURE 40
FIGURE 41

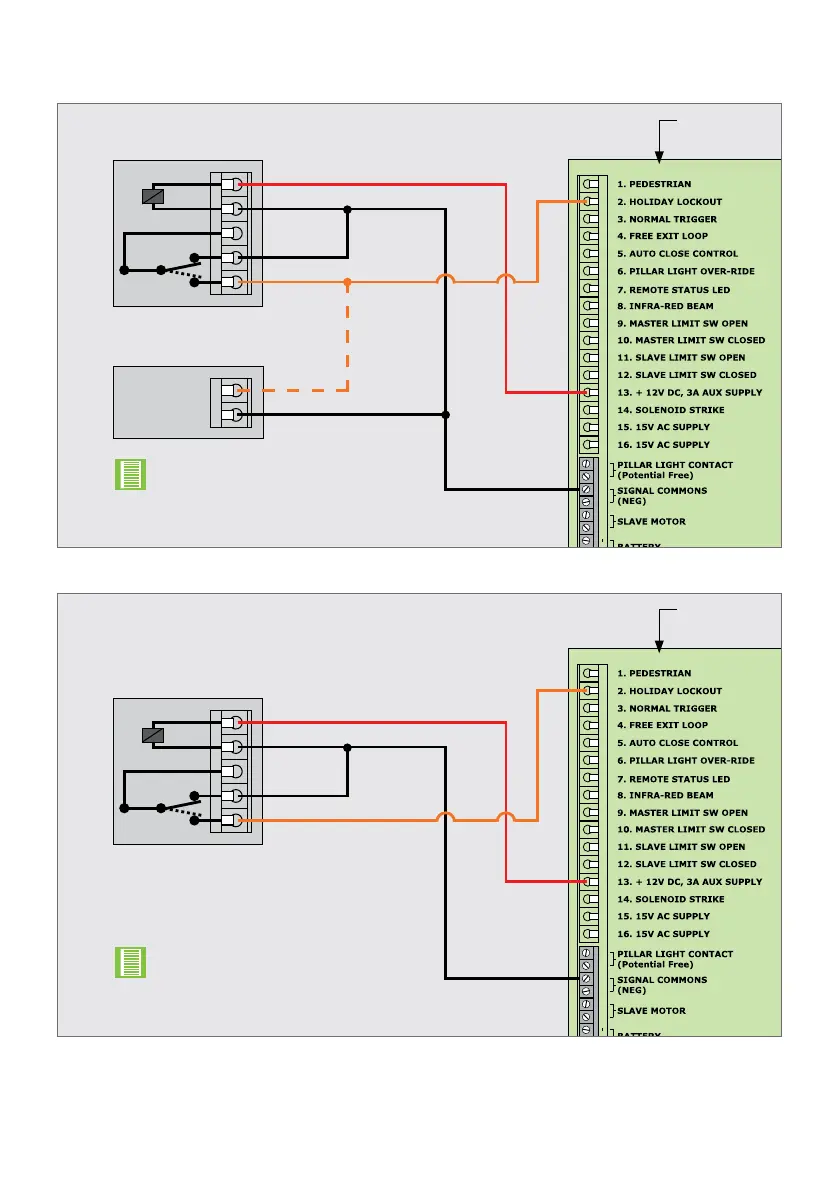

7.10. Holiday Lockout
ELECTRICAL CONNECTIONSSECTION 7
Relay must have latching contact.
Relay must have latching contact.
12V +
NEG
LOCK
NO
NC
COM
COIL
12V RELAY
