page 25 www.centsys.com
Step 5
Mark point “S5” on the ground using
a plumb bob.
Step 6
Mark horizontal line shown on pillar
100mm below the top of the Gate
Bracket.

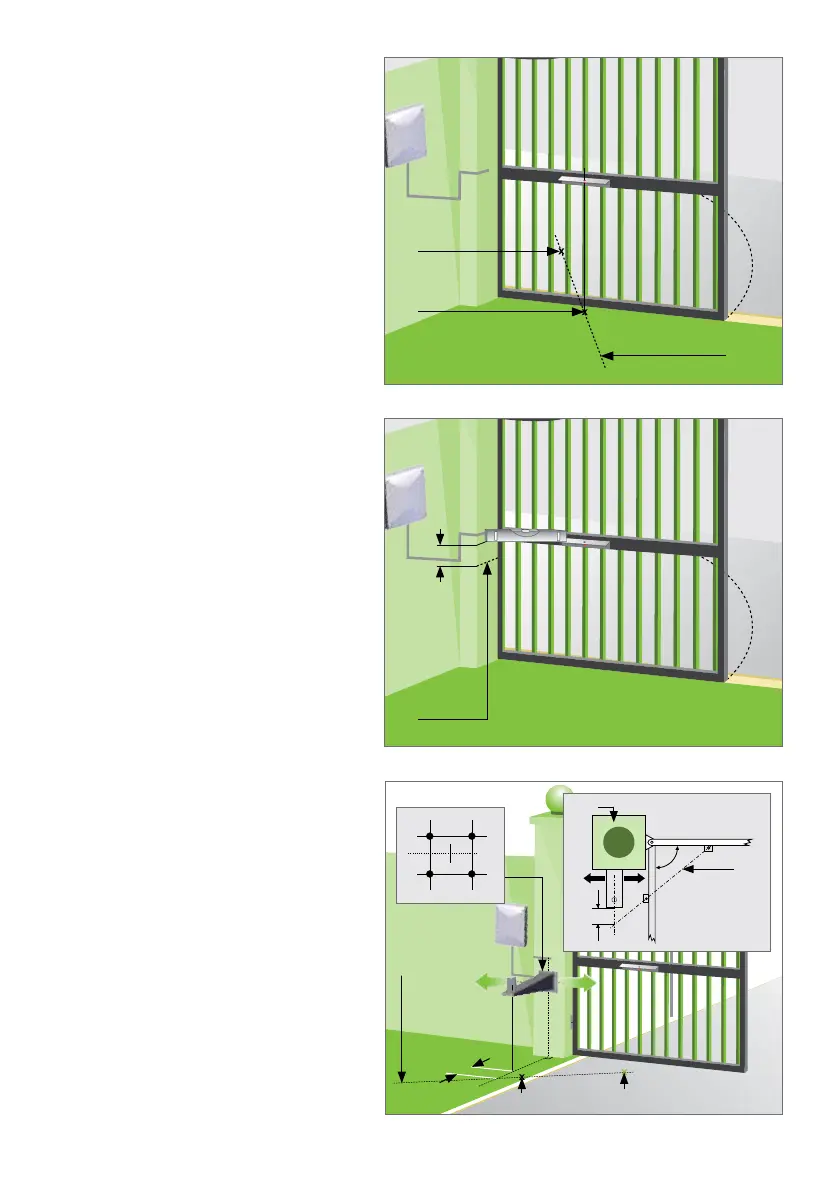

FIGURE 21. MARKING SETUP LINE
S4
S5
Setup
line
FIGURE 22. DETERMINE HEIGHT OF PEDESTAL
L1
100mm
Step 7
Move the Wall Bracket left or right
along line “L1” until the plumb bob
is 60mm back from the setup line.
FIGURE 23. LOCATE PEDESTAL
Setup
line
S5 S4
60mm
L1
97mm
Pillar
Setup
line
60mm
90°
Gate closed
Gate opened
Use
M12
rawl
bolts
59mm
74.5mm
OPERATOR INSTALLATIONSECTION 6
