page 26 www.centsys.com

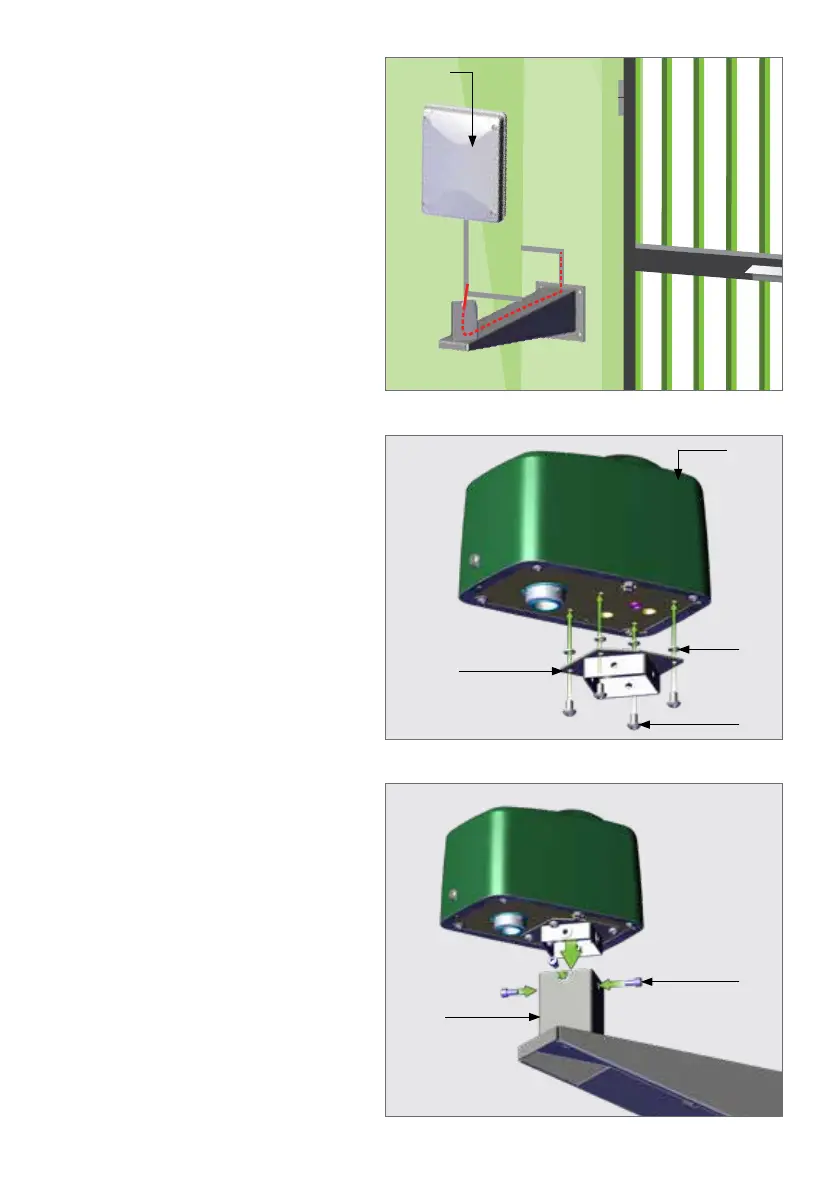

Step 8
Install the cable and bolt the Wall
Bracket to the wall using at least
M12 rawl bolts.
FIGURE 24. MOUNT PEDESTAL
FIGURE 25
Control
box
Flat
washer
Bolt
Motor
Step 9
Bolt the Pedestal Adaptor onto the
base of the Motor.
OPERATOR INSTALLATIONSECTION 6
Pedestal
adaptor
FIGURE 26
Bolt
Step 10
Bolt the Pedestal Adaptor onto the
Wall mount.
Wall
mount
To Next Page
