Installation
Electrical Connection - Single and Three Phase
1. Remove the right and front panels.
2. Route conduit to the mounting bracket located at the right rear corner of the machine (see
Fig. 9). Be sure to leave a 6 foot/2 meter service loop to the machine.
3. Remove the right and front panel to access the main terminal blocks.
4. Follow the Machine Electrical Connection Data Plates for the terminal block connections.
The data plates are Attached close to the blocks (Fig. 11).

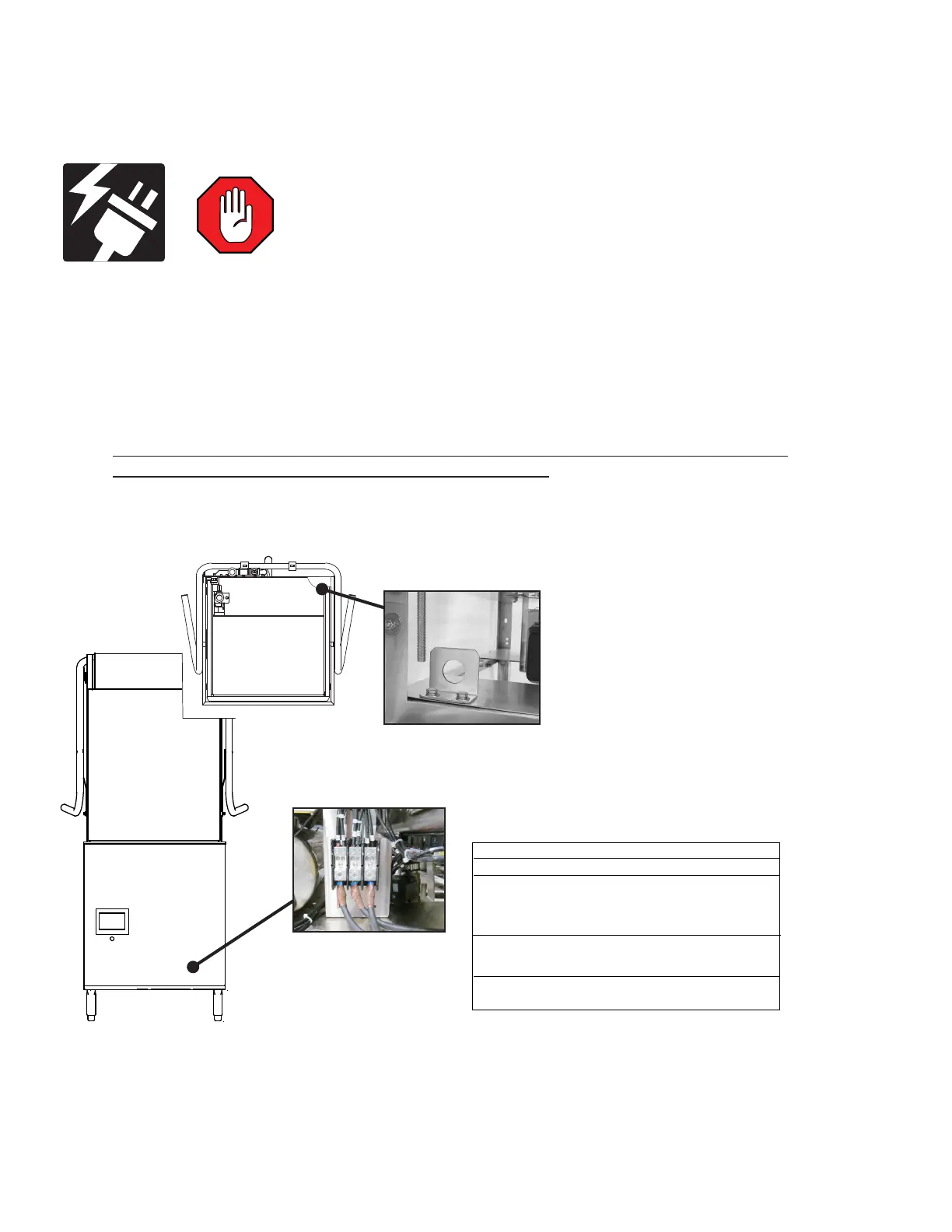

Fig. 11 - Connection data plate
Fig. 9 - Cable restraint
Front View
Volt: 208-240 Amp: 38-34Ph: 3 Hz: 60
1-Point Machine Connection Data Plate
Mod: DH6000T Series: M2-STD
Minium Supply Conductor Ampacity
For supply connection, use copper connectors in accordance
with local electrical code. Rated Minimum 90°C (194°F).
50/50 AMPS
50/50 AMPS
Maximum Supply Overcurrent
Protection Device
Overcurrent Protection Device: Time Delay or Inverse Time
Circuit Breaker
Fig. 10 - Power terminal block
WARNING:
Disconnect main power o at the dishwasher and main circuit breaker
before performing work on the circuit. There may be more than one
power source connected to the machine.
