Supervisor - Fault Counters, Temp Oset, Temp Lockout, Detergent OFF, Detergent Lockout
1. The Fault Counter shows how many times the
machine has a listed fault error.
2. Only a technician can reset fault counters.
SUPERVISOR MENUS
(continued)

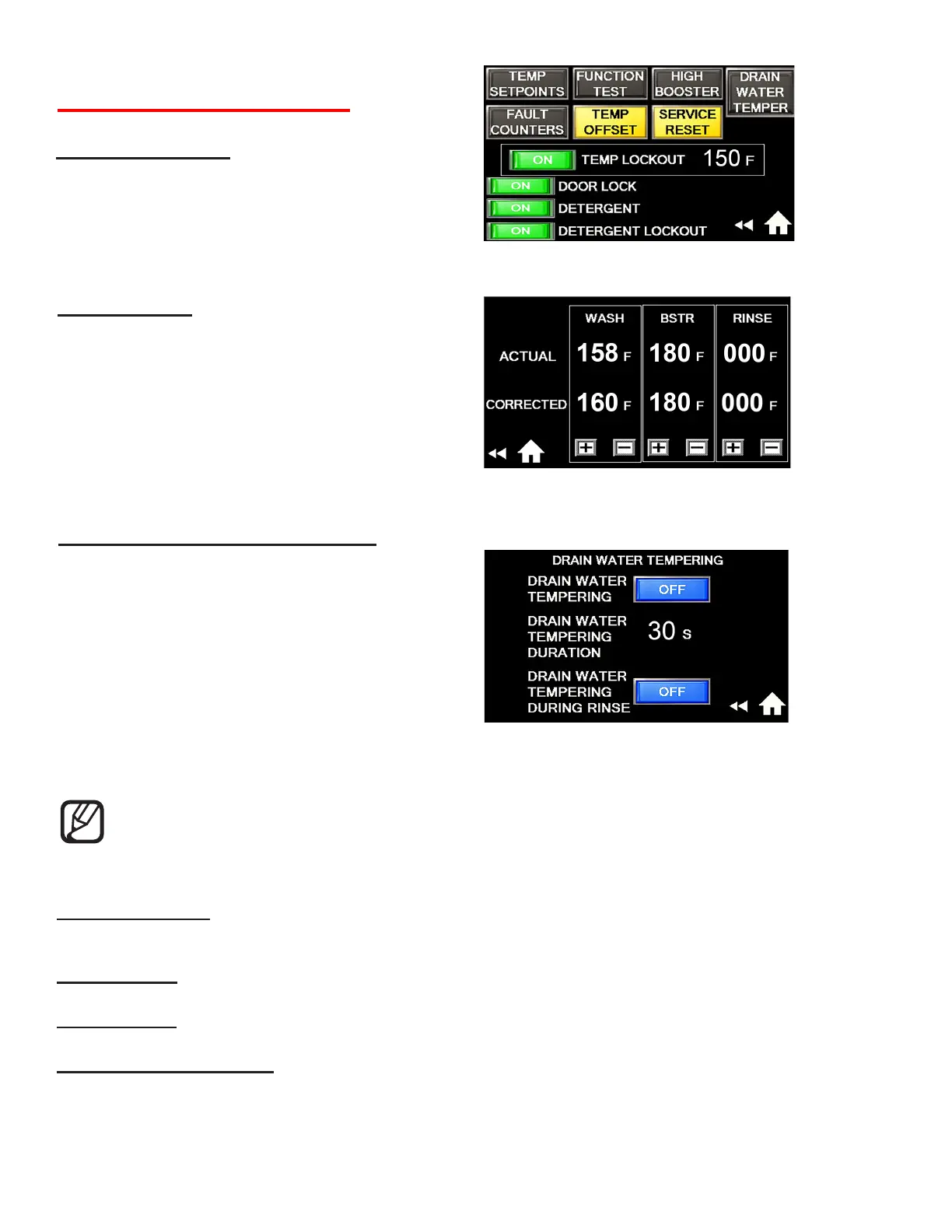

Fig. 70- MAINT menu
FAULT COUNTERS:
TEMP OFFSET:
Fig. 72- Drain water tempering settings
Fig. 71 - Only a technician can correct temperatures
TEMP LOCKOUT: When ON, machine will stop if wash temperature is below
150ºF/65.5ºC. The lockout temperature setting is adjustable.
DOOR LOCK: When ON, the door lock switch operates as required.
DETERGENT: When ON, the Optional Champion detergent system is operational.
DETERGENT LOCKOUT: When ON, the machine will not operate if detergent is
not detected in the Champion detergent system.
NOTE: The functions listed below are only used by service agents to program
the operation of a machine if equipped with special options, (Fig. 70).
DRAIN WATER TEMPERING (DWT):
(For electric DWT option only)
1. Temp Oset allows a service agent to
compensate for variances between
measured and actual temperature.
2. Only a technician can correct
temperatures, (Fig. 71).
1. Drain water tempering is an option that
includes a cold water valve connected to
the drain line to cool the water leaving
the machine.
2. Refer to Fig. 72 and note the default settings
are OFF. The default time the cold water
valve isenergized is 30 secs. The operating
range is between 1 and 120 secs.
