Supervisor Menus - Optional Champion Chemical Dispenser Set-up
Optional Champion Chemical Dispenser Set-up
(continued)
Chemical Setup Menu: (continued)
1. Press 'IN-LINE' button ON if optional
detergent sensor installed (Fig. 30).
2. Press 'TANK' button ON if tank
detergent sensor installed (Fig. 30).
3. Press both ON if both installed.
Fig. 31 - In-line sensor
Fig. 32- Tank sensor
DETERGENT SENSORS :
1. Manually runs the chemical pumps.
2. To prime: Insert pick-up hose(s) in chemical containers.
3. Press and hold a PRIME button. Release button.
DETERGENT PRIME and RINSE AID PRIME BUTTONS:
1. Rinse aid pump runs for 5 secs. during the nal rinse.
2. To change: press "5". Keypad appears, (see Fig. 28).
3. Press CLR, new value, and ENT.
SET RINSE AID SET POINT: (factory default = 5 secs.)

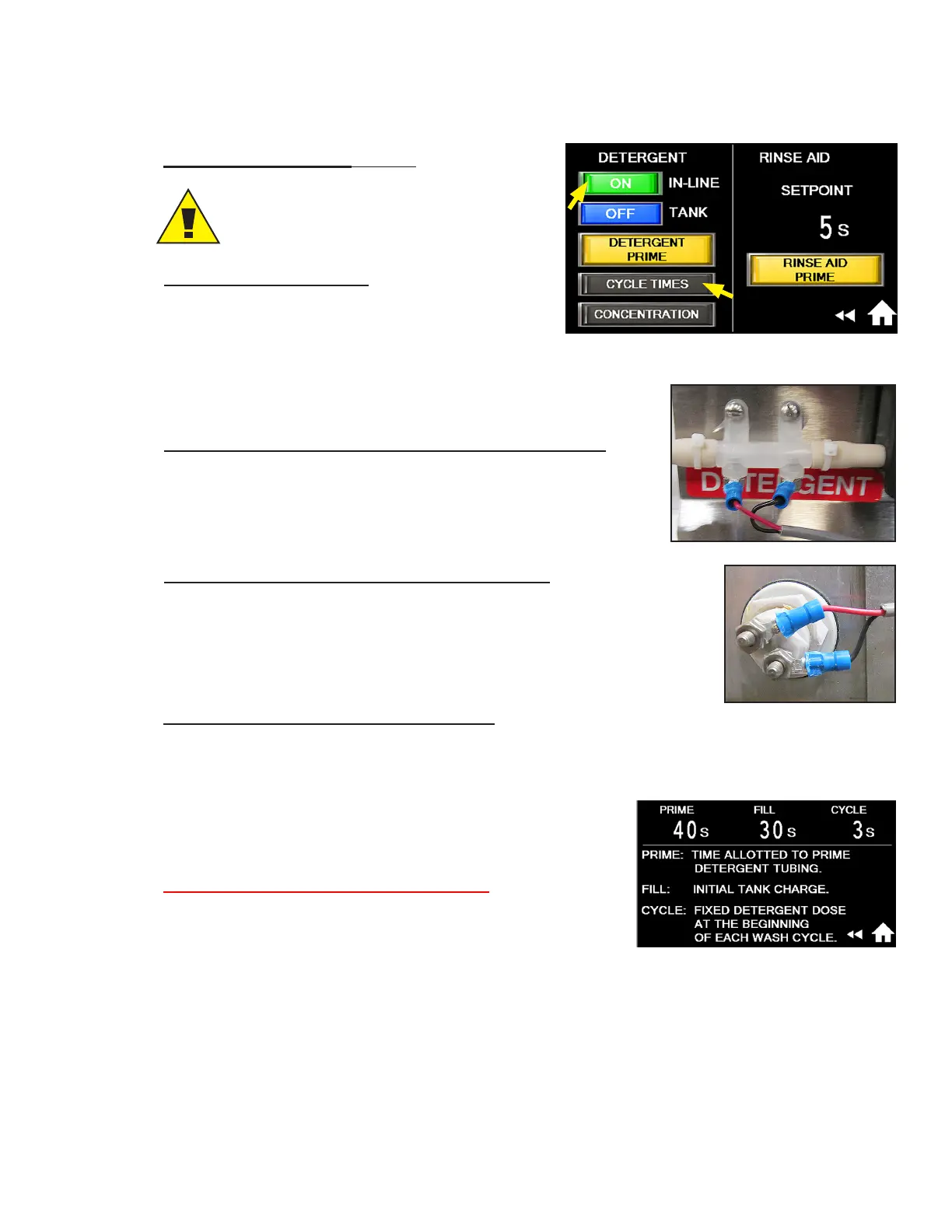

Fig. 33 - In-line sensor cycle times
Sensor Options:
Chemical dispensing controlled according to option
IN-LINE only, TANK only or both IN-LINE and TANK.
1. Press "CYCLE TIMES" Factory default Prime = 40 secs., Fill = 30 secs.,Cycle = 3 secs.)
2. To change: press "number on the screen,
Keypad appears, (see Fig. 28).
3. Select new value on keypad, then ENT.
4. Repeat for each value needing change.
SET DETERGENT CYCLE TIMES, (Fig. 25):
IN-LINE Sensor (ONLY) Normal Operation:
1. Detergent pump output = 3ml/sec.
2. At power on, the detergent pump will run for 40 secs.
or until the in-line sensor detects chemical.
3. When the lower oat is satised, detergent pump runs 30 secs. for initial charge.
4. The detergent pump runs 3 secs. at the beginning of each wash cycle.
(continued on next page)
Fig. 30 - IN-LINE sensor selected.
Instructions for the Supervisor and Chemical Supplier
