Champion DH6000T Installation Manual

120VAC
1.0 AMP
MAX.
COMMON
NEUTRAL
120VAC
120VAC
2.0 AMP
MAX.
120VAC
2.0 AMP
MAX.
FAN
SIGNAL
RINSE AID
SIGNAL
DETERGENT
SIGNAL
SIGNAL ONLY
R /A
Rinse-aid

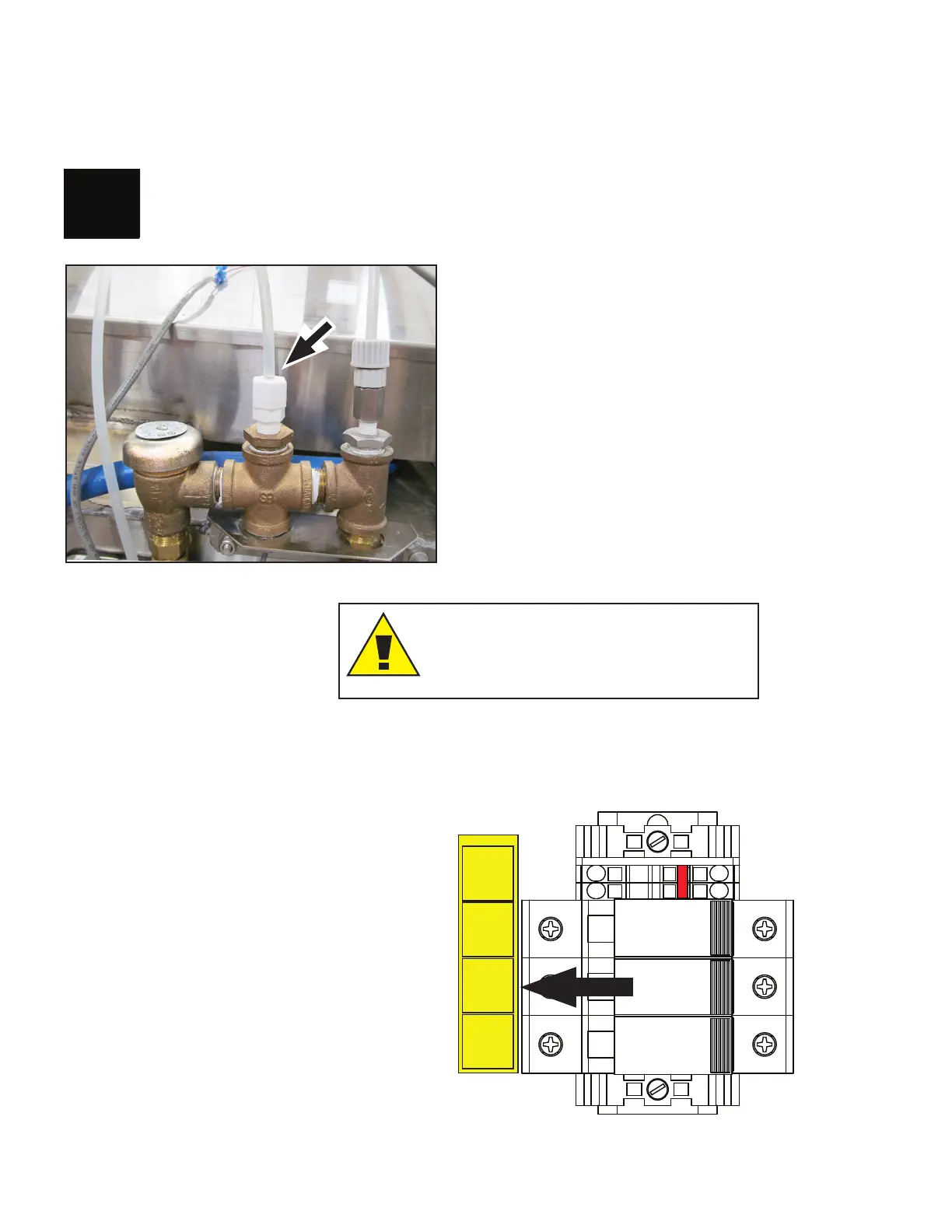

Fig. 20 - Rinse aid injection point
Fig. 21- Rinse aid signal connection
Rinse aid Signal for Dispensing System by others.
• 120VAC FUSE BLOCK
• 2.0 AMP MAX LOAD RINSE AID SIGNAL CONNECTION.
• LOCATED ON LEFT SIDE OF COMPONENT PANEL
• SIGNAL ENABLED DURING RINSE CYCLE.
CAUTION:
Warewashing chemicals are supplied by
others. Always follow supplier's instructions
for proper handling and use.
Installation
12
