Supervisor Menus - Optional Champion Chemical Dispenser Set-up
Optional Champion Chemical Dispenser Set-up (continued)
1. The concentration display indicates the sensor that is ON.
2. Setpoint value sets the amount of detergent injected.
3. Actual is the amount of detergent detected by sensor.
4. Press DETERGENT PRIME to prime in the event that
it was not completely primed automatically.
5. Press "PUMP" button to agitate wash tank.
6. Fill the dishwasher with fresh water and run cycles
until the tank temperature indicates approximately
160ºF/71ºC.
7. Press the 'Back-up button (◄◄ ), (Fig. 39c), to return to the Supervisor menu, (Fig. 39c).
8. Press the 'Home' button, (Fig. 40), to return to the main operation screen, (Fig. 41).

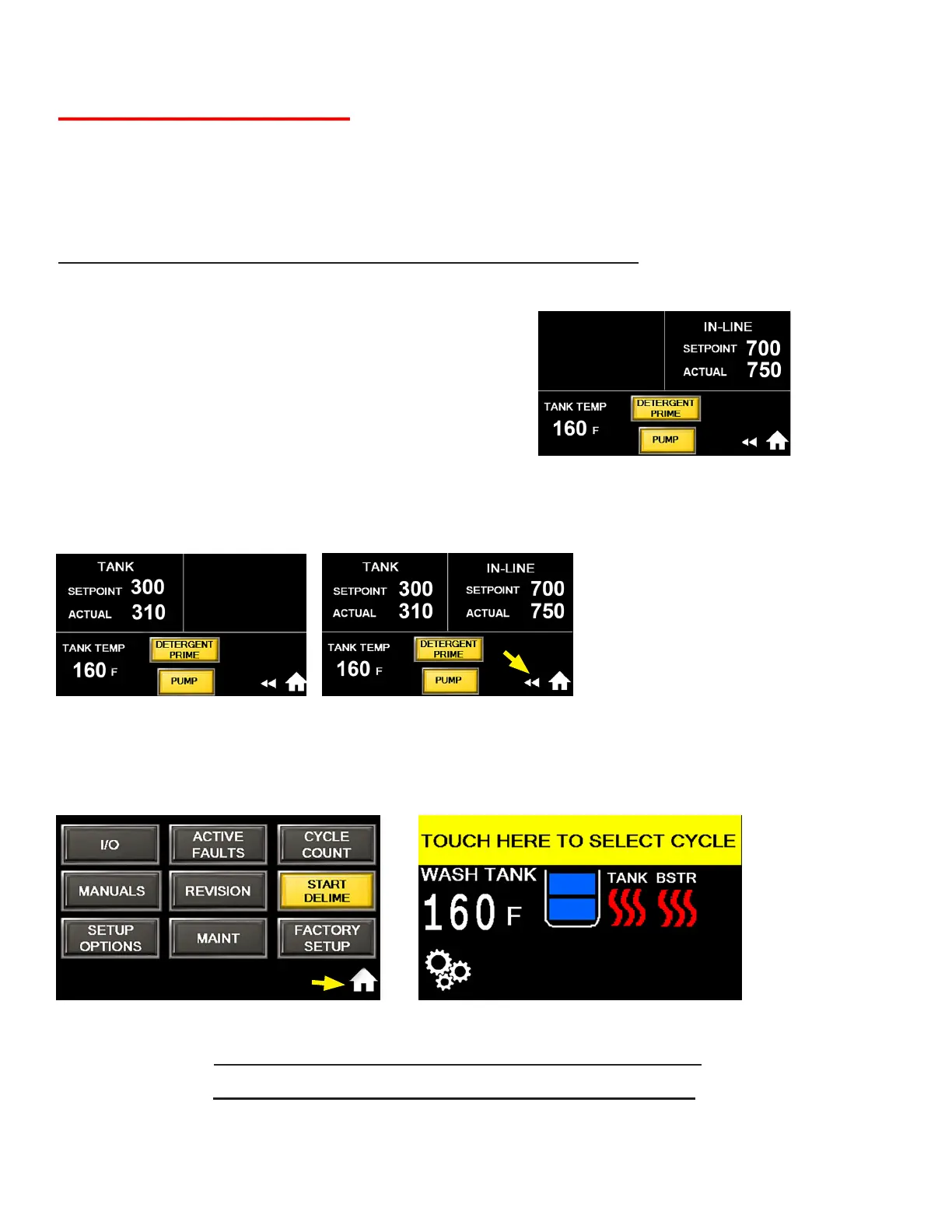

SET DETERGENT CONCENTRATION - (See Fig. 39 a,b,and c for Sensor displays).
Fig. 39a - In-line Sensor ON
THIS COMPLETES THE OPTIONAL CHAMPION
CHEMICAL DISPENSER SETUP PROCEDURE.
Instructions for the Supervisor and Chemical Supplier
Fig. 39c - Tank and In-line Sensors ONFig. 39b - Tank Sensor ON
Fig. 40 - Home button
Fig. 41 - Main operation screen
SUPERVISOR MENUS
(continued)
