APPENDIX A
: Installing DH6000T Corner Splash Shield Kit P/N 901
1
14
37
4.

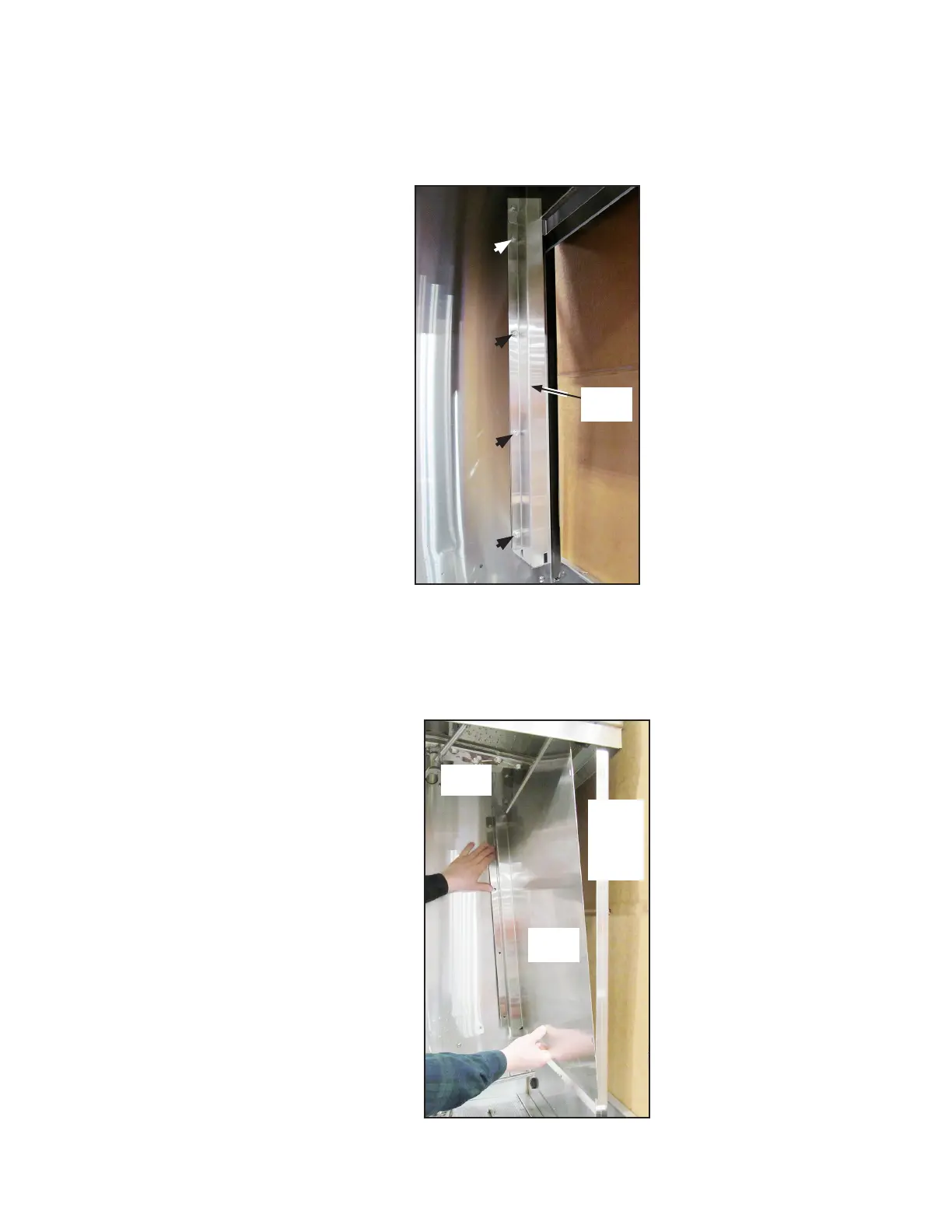

Remove the (4) bolts, locks, and washers securing the right-hand door guide cover
.
Save the fasteners and discard the cover
, (Fig. 3).
5.
Install the splash shield between the door guide and the front corner post (Fig. 4).
The left side of the splash shield covers the door guide.
Fig. 3
Guide
Cover
Fig. 4
Splash
Shield
Door
Guide
Front
Corner
Post
46
48
Table of Contents
Limited Warranty
6
Table of Contents
7
Installation
11
Receiving and Placement
11
Dish Table Connections
12
Corner Operation - Corner Splash Shield
13
Corner Operation - Track Conversion
14
VHR Cold Water Connection - DH6000-VHR, DH6000T-VHR
15
Hot Water Connection - Standard and VHR DH6000, DH6000T
15
Drain Connection
16
Optional Mechanical Drain Water Tempering Kit Valve Kit
17
Electrical Connections - Single and Three Phase
18
Single and Two Point Power Connection Conversion
19
Convert DH6000 208-240VAC Only from 3PH to 1PH Operation
20
Detergent Dispensing System by Others
21
Detergent Signal for Dispensing Signal by Others
21
Rinse Aid Signal for Dispensing System by Others
22
Vent Fan Control Supplied by Others
23
Optional Champion Chemical Dispensers
24
Supervisor Menus
26
Enter Supervisor Menu
26
Enter Chemical Setup Menu
26
Detergent Sensors
27
Detergent Prime and Rinse Aid Prime Buttons
27
Set Rinse Aid Set Point
27
Set Detergent Cycle Times
27
IN-LINE Sensor (ONLY) Normal Operation
27
In-Line Sensor Only Detergent Cycle Times
28
Inline Sensor Operation Error (A)
28
TANK Sensor Normal Operation
28
TANK Sensor Error Operation
28
IN-LINE and TANK Sensors Normal Operation
29
IN-LINE and TANK Sensor Operation Error
29
Set Detergent Concentrations
29
Supervisor Menus (Continued)
30
Sleep
31
Fill Time Exceeded
32
On for Celsius
32
Water Refresh
32
Navigation Buttons
32
I/O - Inputs Outputs
33
Active Faults
33
Cycle Count
34
Manuals
34
Revision
35
Start Delime
35
Factory Setup
35
Maint
36
Temp Setpoints
37
Function Test
37
High Booster
37
Fault Counters
38
Temp Offset
38
Drain Water Tempering (DWT)
38
Temp Lockout
38
Door Lock
38
Detergent
38
Detergent Lockout
38
Delime Setup
39
Delime Notification Setup
40
Start Delime
40
Delime Operation
41
Fault Messages
44
Fill Time Exceeded
44
Drain Time Exceeded
44
Float Fault
45
Temperature Sensor Fault
45
APPENDIX A: Installing DH6000T Corner Shield Kit, P/N 901114
46
APPENDIX B: Kit P/N 901242, DH6000/T 1 to 2-Point Terminal Block Conversion
50
APPENDIX C: Manually Operating the Drain Valve
52
