Connecting Cables to MHO-175
Quantum Maestro Getting Started Guide|100
Connecting to the Management Port with Breakout Cables
Important - When you connect two Quantum Maestro Orchestrators for redundancy, the
Check Point Management Server connects only to one of the Quantum Maestro
Orchestrators.

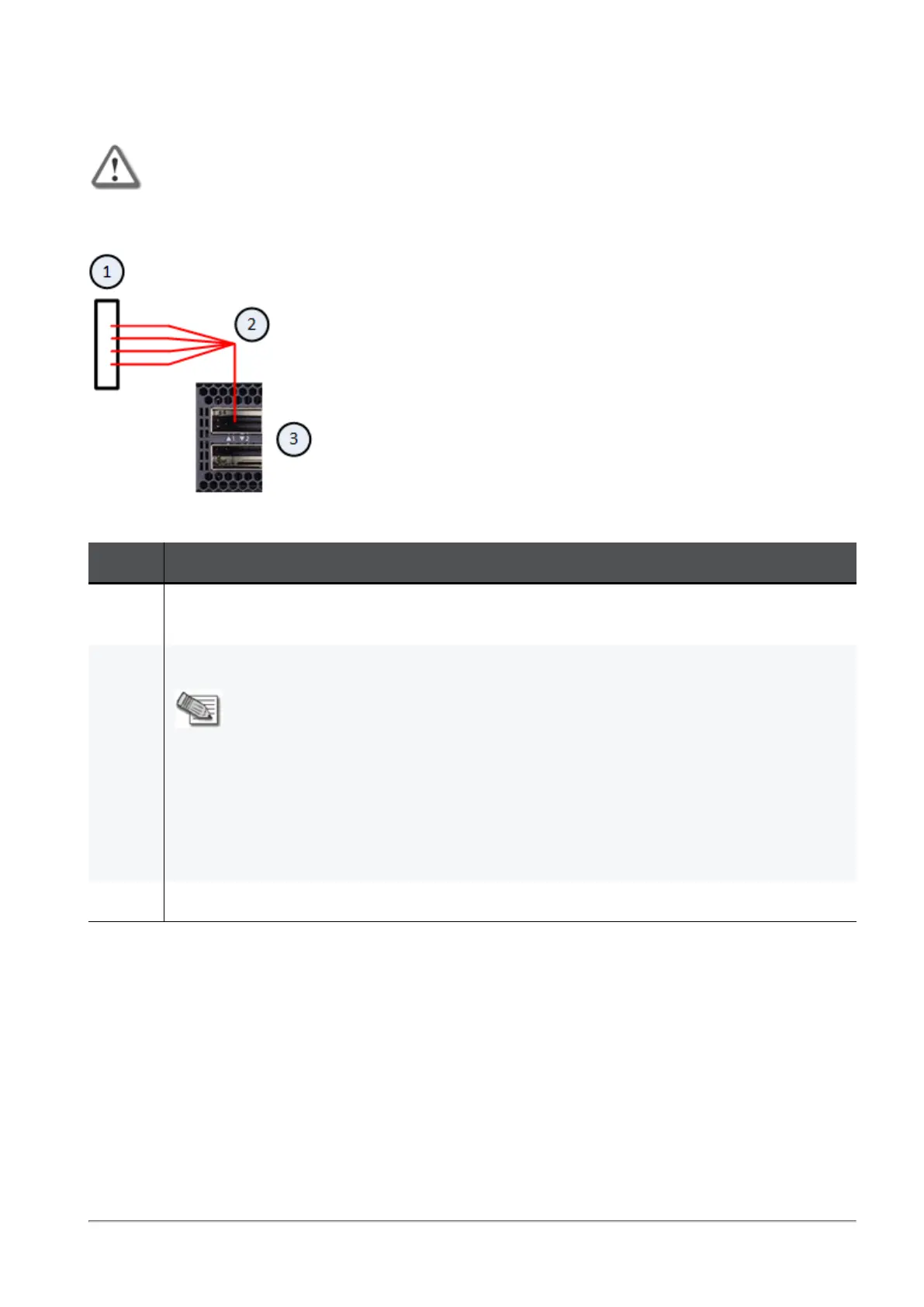

Example:
Explanations:
Item Description
1 Layer 2 switch.
To this switch you connect the Check Point Management Server(s).
2 A Breakout cable connected to the Management port 1. See
"Breakout Cables" on page82
.
Notes:
n
This cable splits the Management port 1 into four interfaces.
n
You assign these split Management interfaces to the applicable Security
Groups.
Shared Management feature allows to assign the same Management port
(interface ethX-MgmtY) on a Quantum Maestro Orchestrator to different
Security Groups.
The assigned Management port has a different IP address and a different
MAC address in each Security Group, to which this port is assigned.
3 The first Quantum Maestro Orchestrator.
