Hardware Components
This section provides a description of hardware components of Quantum Maestro Orchestrators.

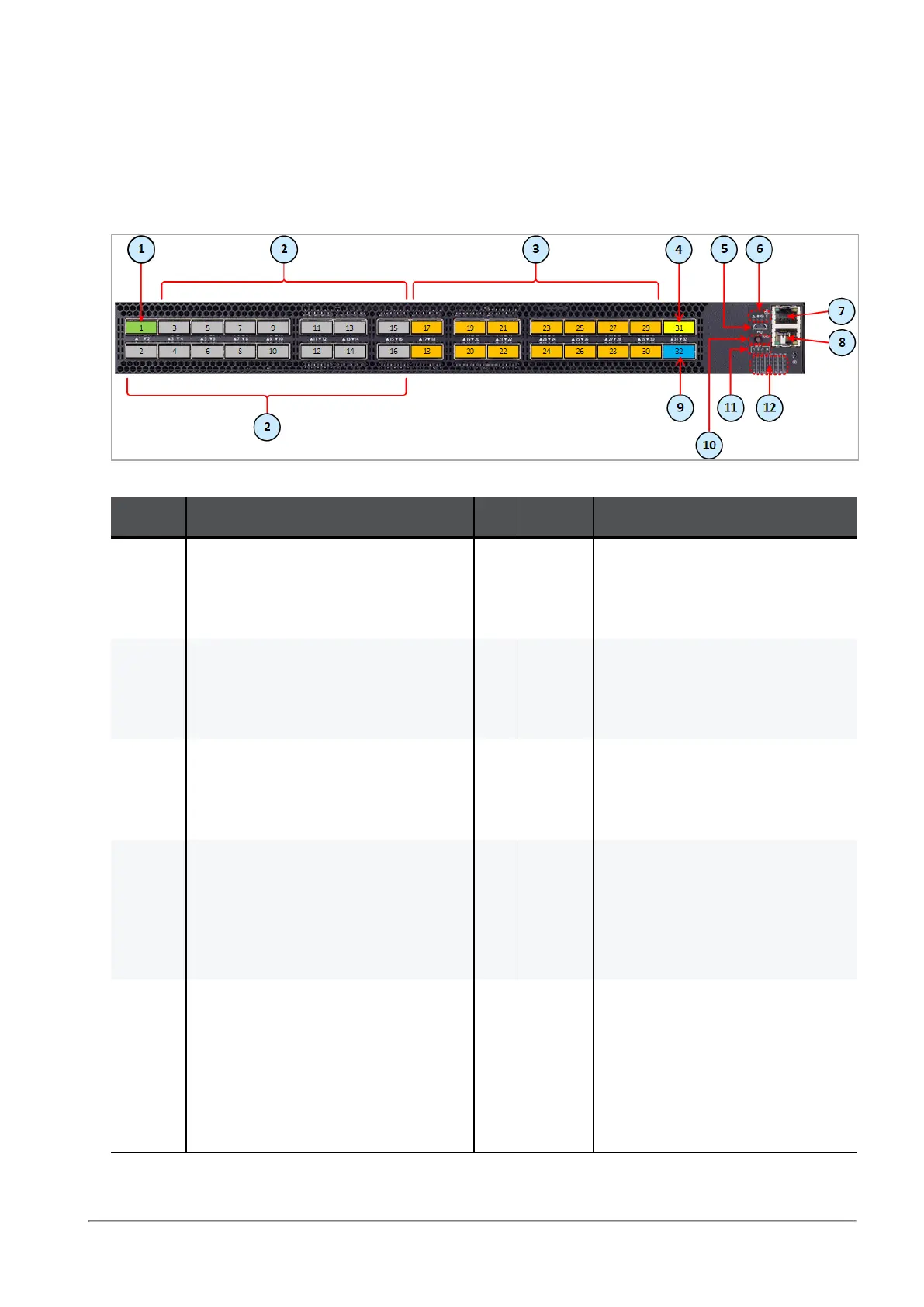

Port Mapping for the Quantum Maestro Orchestrator MHO-175
Item Description Item Description
1 Port 1 is the Management port for
Security Groups
(leads to the Check Point
Management Server)
7 Management port (Mgmt1) for the
Gaia OS on the Orchestrator
2 Ports 2 – 16 are the Uplink ports 40
Gbps / 100 Gbps
(lead to external and internal
networks)
8 RJ45 port for Console connection
3 Ports 17 – 30 are the Downlink ports
(lead to Security Appliances)
9 Port 32 is the Synchronization
port on the same Site
(leads to the peer Orchestrator on
the same Site
4 Port 31 is the Synchronization port in
Dual Site
(leads to the peer Orchestrator on
another Site)
In the Split mode, the 4th split is Sync
and other splits are Downlinks
10 Button to select indication states
for the splitting control LEDs
5 Micro USB 2.0 port 11 Splitting control LEDs that show
the indication state for Port LEDs:
n
State of which port to show
(without a split cable).
n
State of which split port to
show (in 1-to-2 split, or 1-
to-4 split).
