Dual Site with two Switches
Quantum Maestro Getting Started Guide|146
Dual Site with two Switches
Diagram
This example is for MHO-140.
Description
1. On each site, two Quantum Maestro Orchestrators are connected for redundancy:
n
On each site, Port 48 on Quantum Maestro Orchestrators is for the internal synchronization.
n
On each site, Port 47 on Quantum Maestro Orchestrators is for the external synchronization
between sites.
This Port 47 on Quantum Maestro Orchestrators connects to the Layer 2 Switch on the site.
n
On each site, each Security Appliance has an Expansion Line Card.
Downlink ports on different Quantum Maestro Orchestrators connect to odd and to even
ports on the Expansion Line Card.
2. Port 47 on the first Orchestrator on the first site (Orchestrator ID 1_1) connects to the Layer 2
Switch (to Port 1) on the first site.
3. Port 47 on the second Orchestrator on the first site (Orchestrator ID 1_2) connects to the same
Layer 2 Switch (to Port 2) on the first site.
4. Port 47 on the first Orchestrator on the second site (Orchestrator ID 2_1) connects to the Layer 2
Switch (to Port 1) on the second site.
5. Port 47 on the second Orchestrator on the second site (Orchestrator ID 2_2) connects to the same
Layer 2 Switch (to Port 2) on the second site.
6. The Layer 2 Switch (Port 32) on the first site connects directly to the Layer 2 Switch (to Port 32) on
the second site.

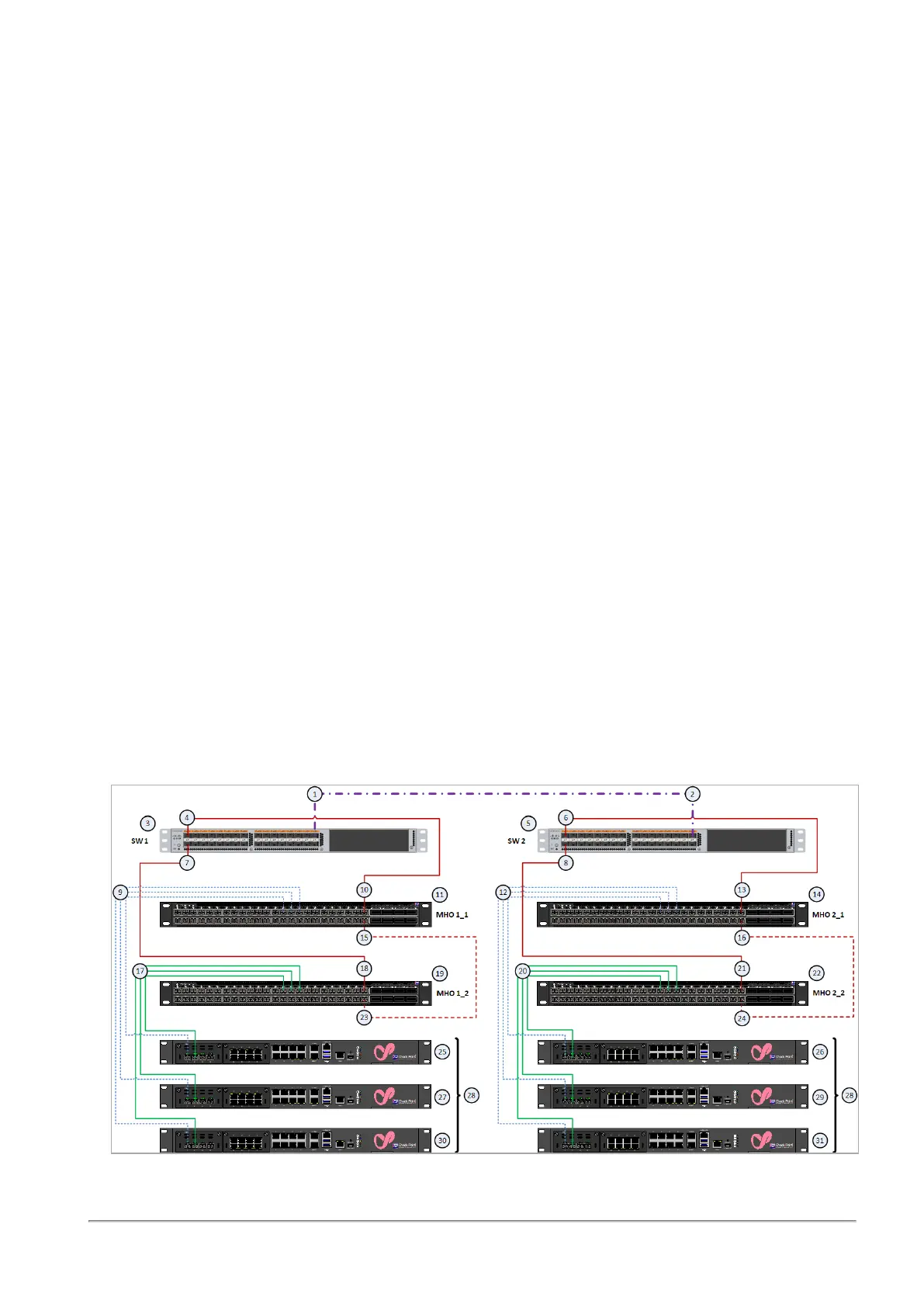

Diagram
