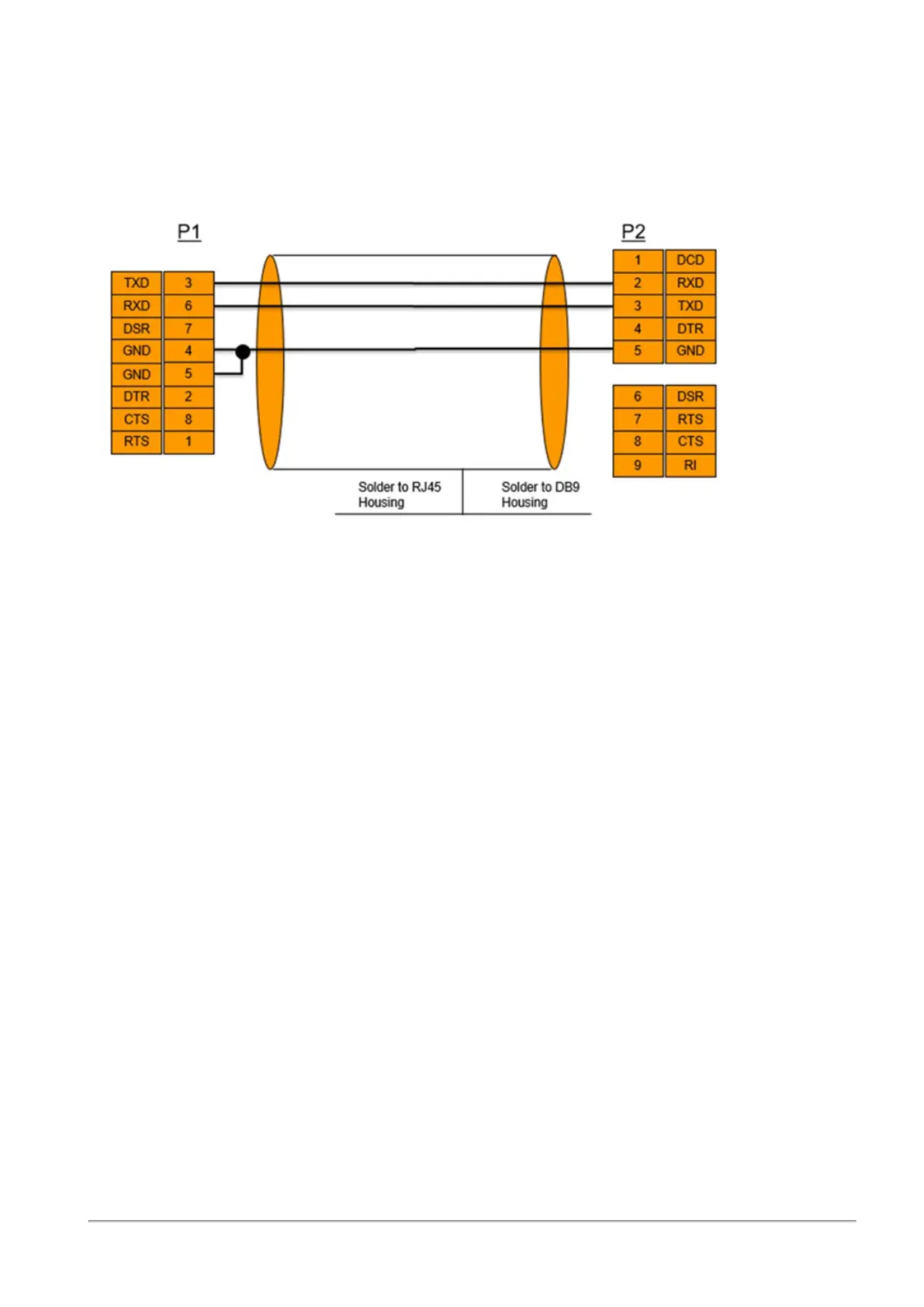

RJ45 to DB9 Harness Pinout
Quantum Maestro Getting Started Guide|184
RJ45 to DB9 Harness Pinout
To connect a host PC to the Console RJ45 port on the Quantum Maestro Orchestrator, an RS232 harness
cable (DB9 to RJ45) is supplied.
