Quantum Maestro Getting Started Guide|83

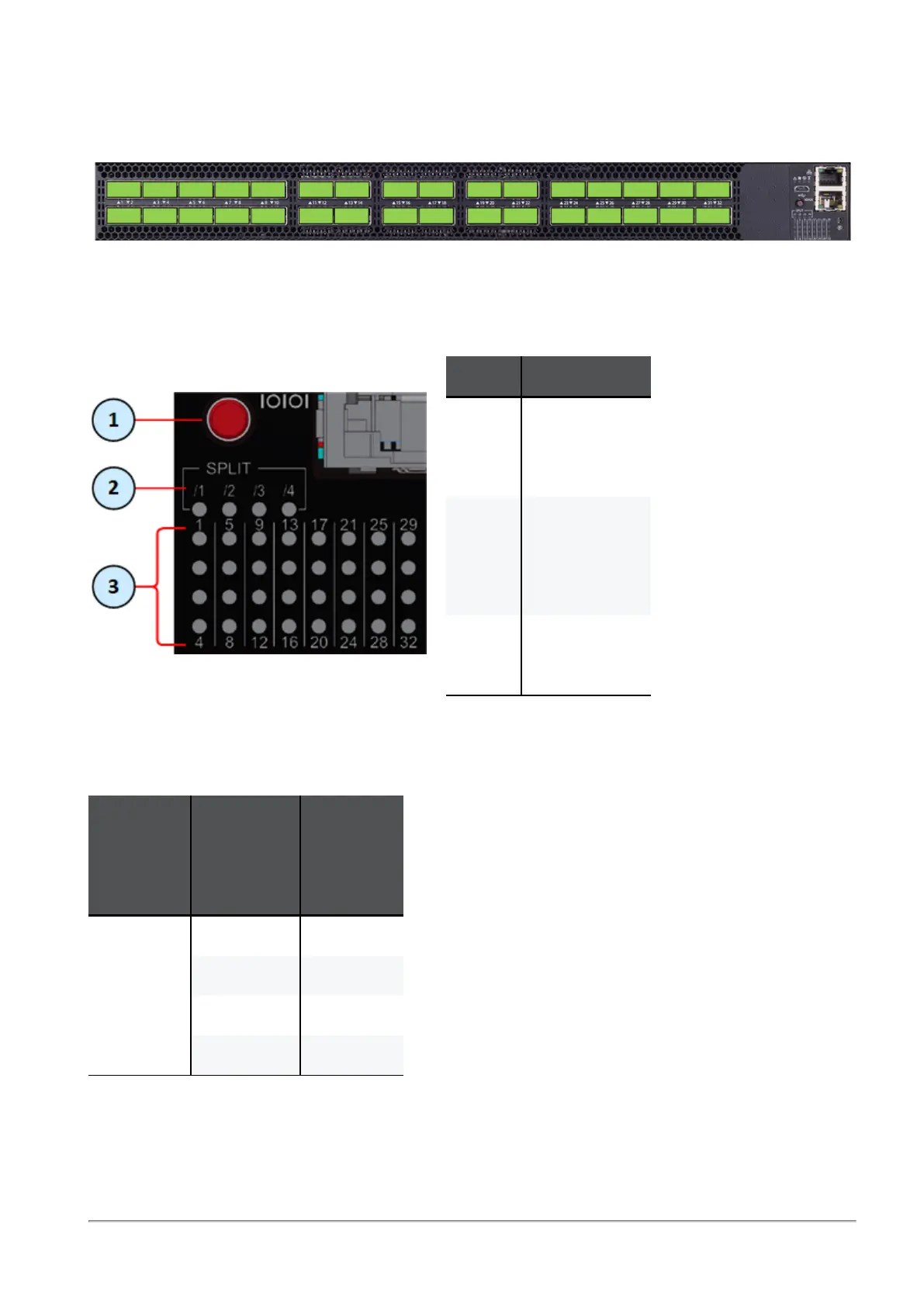

MHO-175 Splitting Options
It is possible to split each of the QSFP28 ports 1 to 32 (colored green) into four SFP28 ports.
In MHO-175 all port LEDs are located on the right side.
There are 32 LEDs that correspond to the 32 physical ports.
You can connect 1-to-4 breakout cables to physical ports and get a maximum of 128 ports.
Item Description
1 Button to
select the LED
indication
mode.
2 LEDs that
show the
selected LED
indication
mode.
3 LEDs that
show the port
states.
After you connect a breakout cable to a port, you get
four
additional interfaces starting from the original
interface name. You assign these interfaces to Security Groups.
Example - When you connect a breakout cable to the top port 8 (interface "eth1-29"), you get:
Port
Number
on the
Front
Panel
Interface
Name
in Gaia OS
Port
Name
in Gaia OS
8 eth1-29 Port 1/8/1
eth1-30 Port 1/8/2
eth1-31 Port 1/8/3
eth1-32 Port 1/8/4
Note - For more information about the ports and interface names in Gaia, see
"Quantum Maestro
Orchestrator Ports and Gaia OS Interfaces" on page170
.
