Hardware Components
Quantum Maestro Getting Started Guide|22

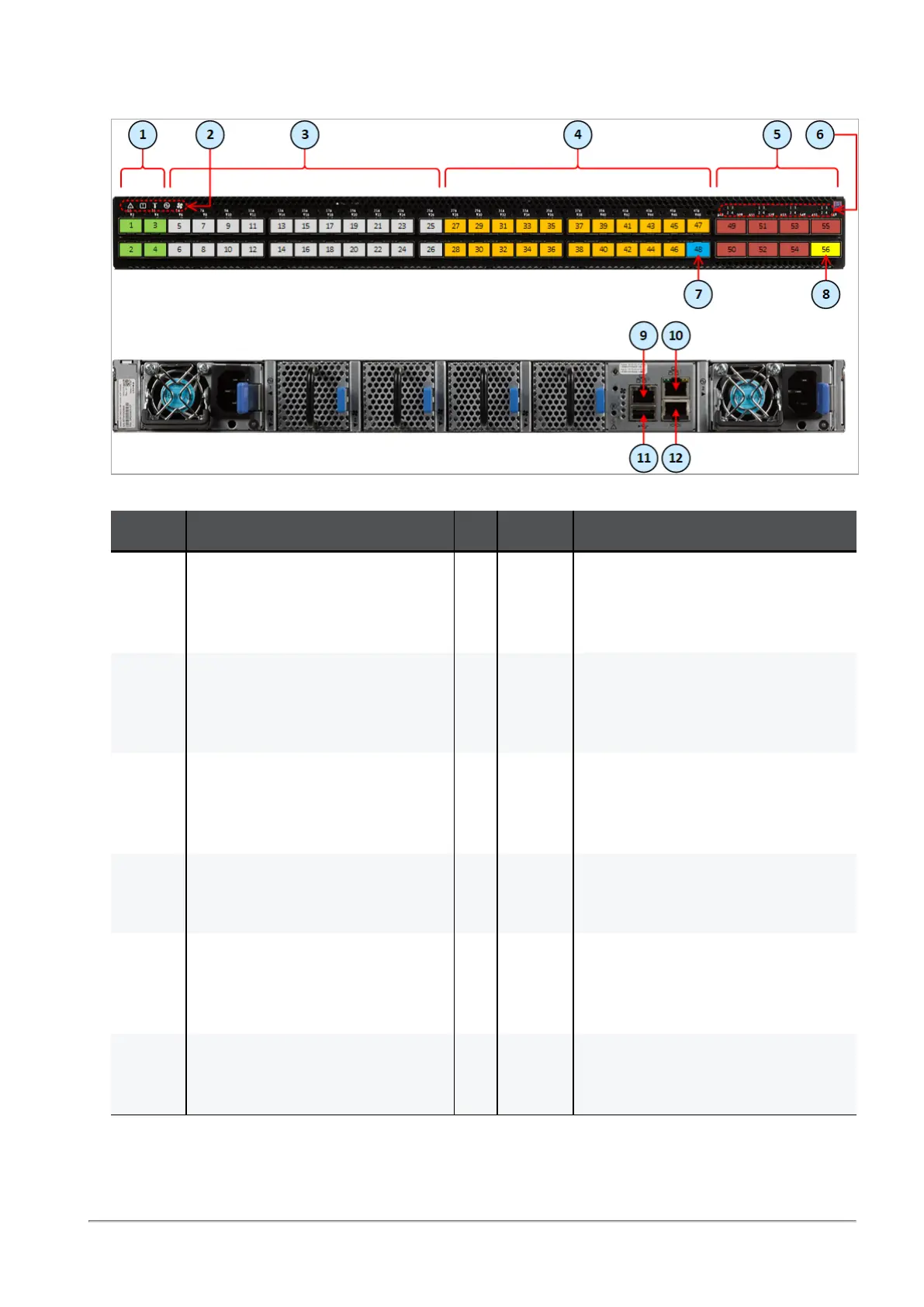

Port Mapping for the Quantum Maestro Orchestrator MHO-140
Item Description Item Description
1 Ports 1 - 4 are the Management
port for Security Groups
(lead to the Check Point
Management Server)
7 Port 48 is the Synchronization port
on the same Site
(leads to the peer Orchestrator on
the same Site)
2 System Health LEDs 8 Port 56 is the Synchronization port in
Dual Site
(leads to the peer Orchestrator on
another Site)
3 Ports 5 – 26 are the Uplink ports 1
Gbps / 10 Gbps
(lead to external and internal
networks)
9 Management port (Mgmt1) for the
Gaia OS on the Orchestrator
4 Ports 27 – 47 are the Downlink
ports
(lead to Security Appliances)
10 Management port (Mgmt2) for the
Gaia OS on the Orchestrator
5 Ports 49 – 55 are the Uplink ports
40 Gbps / 100 Gbps
(lead to external and internal
networks)
11 USB 2.0 port
6 LEDs that show the state of the
split ports
when connecting Breakout cables
12 RJ45 port for Console connection
Legend
