Mounting the Quantum Maestro Orchestrator MHO-175 in a Rack
Quantum Maestro Getting Started Guide|60
Installation in standard racks (58 - 80 cm / 19.6 - 31.5 inches):
n
In case there are cables that cannot bend within the rack, or in case more space is needed for
cable bending radius, it is possible to recess the connector side or the rear panel side by 8.9 cm
(3.5 inches), by optional placement of the Quantum Maestro Orchestrator's rails.
n

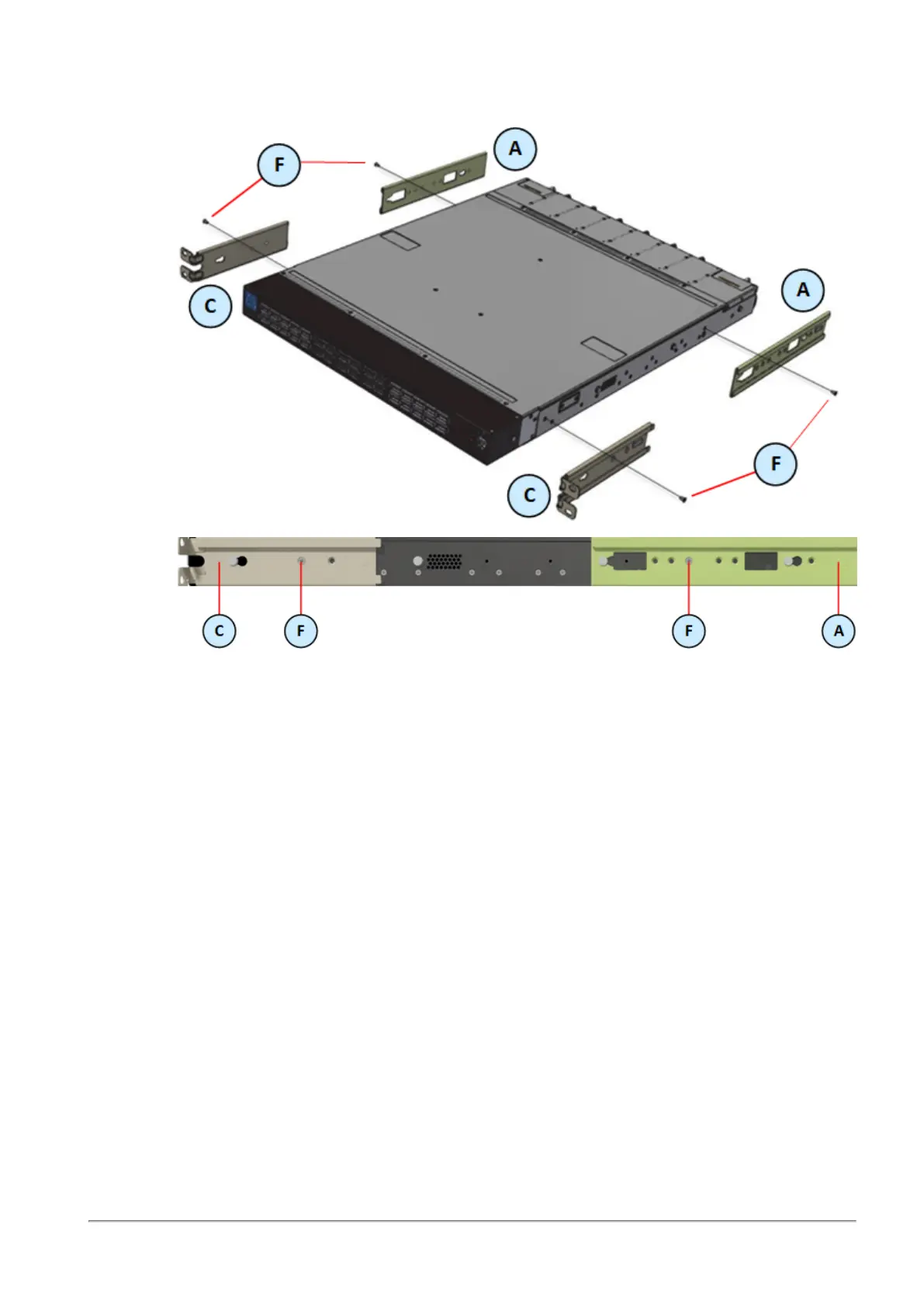

If you mount the rack blades as depicted in
Installation Option 2
above, it lets you slide the PSUs
and Fan Units in and out easier.
