Mounting the Quantum Maestro Orchestrator MHO-140 and MHO-170 in a Rack
Quantum Maestro Getting Started Guide|76
Step 4: Sliding the Blades in the Rails
While your installation partner is supporting the Quantum Maestro Orchestrator, perform these steps:
Step Instructions
1 Slide each rack mount blade (B) into the corresponding rack mount rail (A).
Note - Make sure the mount blade ears (F) face the rack's posts correctly.
2 Slide the rack mount blades (B) inside the rack mount rails (A) to fit your rack's depth.
3 Attach the mount blade ears (F) to the rack's posts.
4 Use the four Phillips pan head screws (C) to secure each mount blade ear (F) to each side
of the rack.
5 Do not tighten the screws yet.

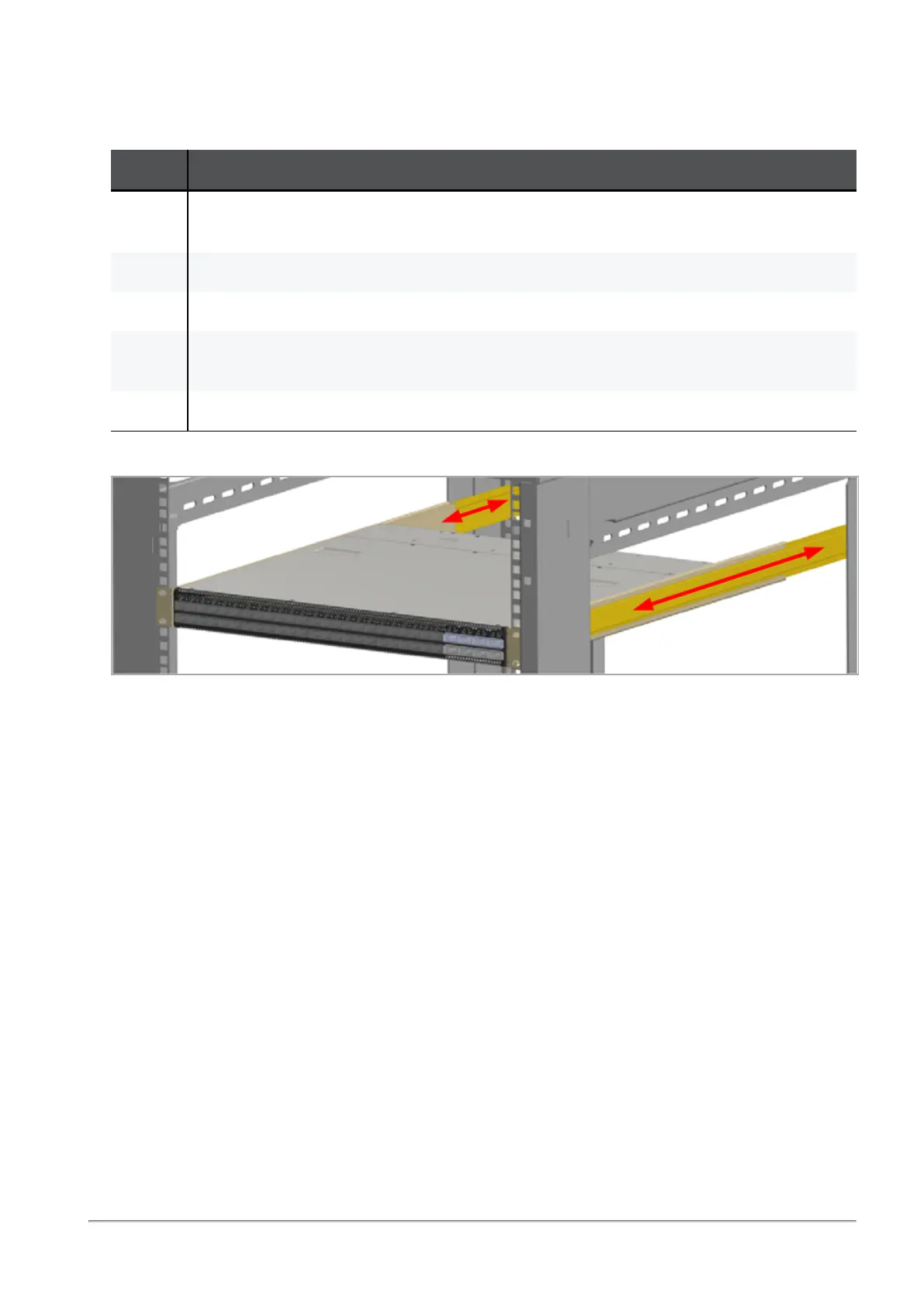

Example:
Step 5: Tightening the Screws
While your installation partner is supporting the Quantum Maestro Orchestrator, tighten the eight Phillips
pan-head screws (C) you inserted in the previous steps.
To tighten the screws, use a torque of 4.5±0.5 Nm.
