- 48 -
FNC code……Application function code, R/W……R: READ, W: WRITE
Reference
number
FNC
Code
R/W Data name
Setting range
(Communication
range)
Initial value Remarks
49095
03
06
16
R
W
W
[Pattern/step
editing]
Add step
[READ]
0/1/2/3/4/5
(0/1/2/3/4/5)
[WRITE]
0101h to 1312h
(0101h to 1312h)
-
Reading of [pattern/step] status
[READ] (FNC_03)
0= No edition
1= Add step
2= Delete step
3= Pattern copy
4= Pattern clear (1 pattern)
5= Clear all patterns
Step adding
[WRITE] (FNC_06, FNC_16)
･High order 8 bits = Pattern No.
1= PTN1 (pattern 1)
to
19= PTN19 (pattern 19)
･Low order 8 bits = Step No.
1= STP1 (step1)
to
18= STP18 (step18)
High order 8 bit Low order 8 bit
*When program operation (reference
49067) is other than RESET, writing is
not possible.
*When step number in existence
(reference 49040) is other than 19
step, writing (add step) is not
possible.
*When step number is exceed the
step number in existence (reference
49040), writing (add step) is not
possible.
[Supplemental remarks]

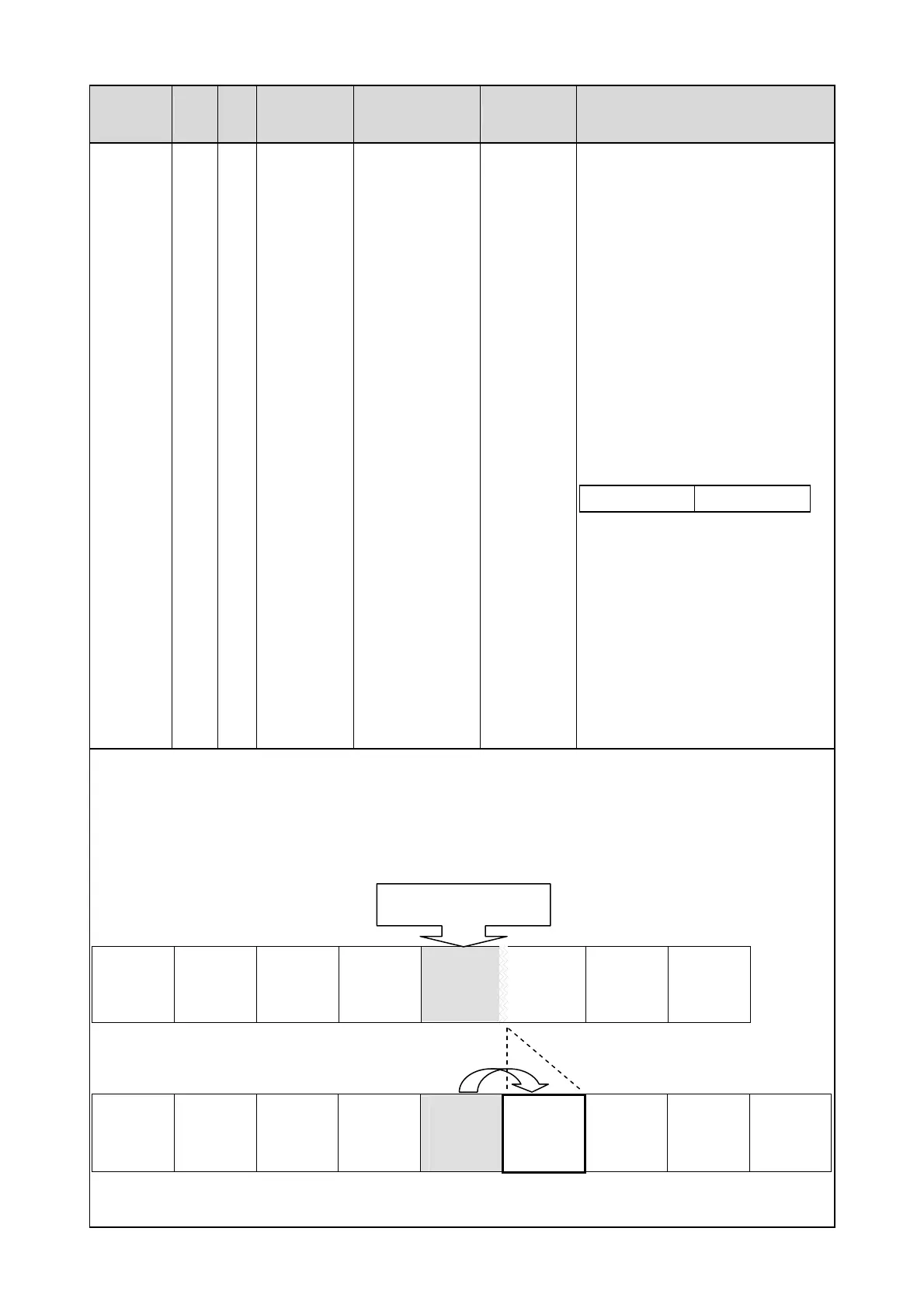

The following is the example of adding new step between step 4 and step 5 of pattern 10.
<Command of step adding>
Issue of command of FNC code = 0.6, reference No. = 49095, setting data = 0A04h (0Ah → pattern No. =
pattern 10, 04h → step No. = step 4).
* Example of command [MODBUS_RTU, slave address (instrument number) = 01] ……010623860A0464C4
<Before step adding>
Pattern 10
Step 0
SV=0.0
Step 1
SV = 10.0
TIME = 1:01
SV No. =
No.1
Step 2
SV = 20.0
TIME = 2:02
SV No. =
No.2
Step 3
SV = 30.0
TIME = 3:03
SV No. =
No.3
Step 4
SV = 40.0
TIME = 4:04
SV No. =
No.4
Step 5
SV = 50.0
T
IME = 5:05
SV No. =
No.5
Step 6
SV = 60.0
TIME = 6:06
SV No. =
No.6
Step 7
SV = 70.0
TIME = 7:07
SV No. =
No.7
<After step adding>
Pattern 10
Step 0
SV = 0.0
Step 1
SV = 10.0
TIME = 1:01
SV No. =
No.1
Step 2
SV = 20.0
TIME = 2:02
SV No. = No.
2
Step 3
SV = 30.0
TIME = 3:03
SV No. =
No.3
Step 4
SV = 40.0
TIME = 4:04
SV No. =
No.4
Step 5
SV = 40.0
TIME = 4:04
SV No. =
No.4
Step 6
SV = 50.0
TIME = 5:05
SV No. =
No.5
Step 7
SV = 60.0
TIME = 6:06
SV No. =
No.6
Step 8
SV = 70.0
TIME = 7:07
SV No. =
No.7
Content of step adding operation:
1) Setting content of step 5 to step 7 is moved step 6 to step 8.
2) Add same content of step 4 to step 5.
Pattern No.
S
tep No.
15 8 7 0
ADD STEP!
Copy of setting contents
