CHINT NVF2G-S Series User Manual

Standby status
50.00Hz flash
Press PRG
1st level menu
Group F0
Press SET
2nd level menu
Fd.00
Press
Press
Modify index number
by
Parameter reading
is: 523
Press SHIFT
PressPress
Modify index value
by
Change modify position
by SHIFT
Press PRG
Press
Press
Press PRG
Press SET
Detailed
parameters reading
Press

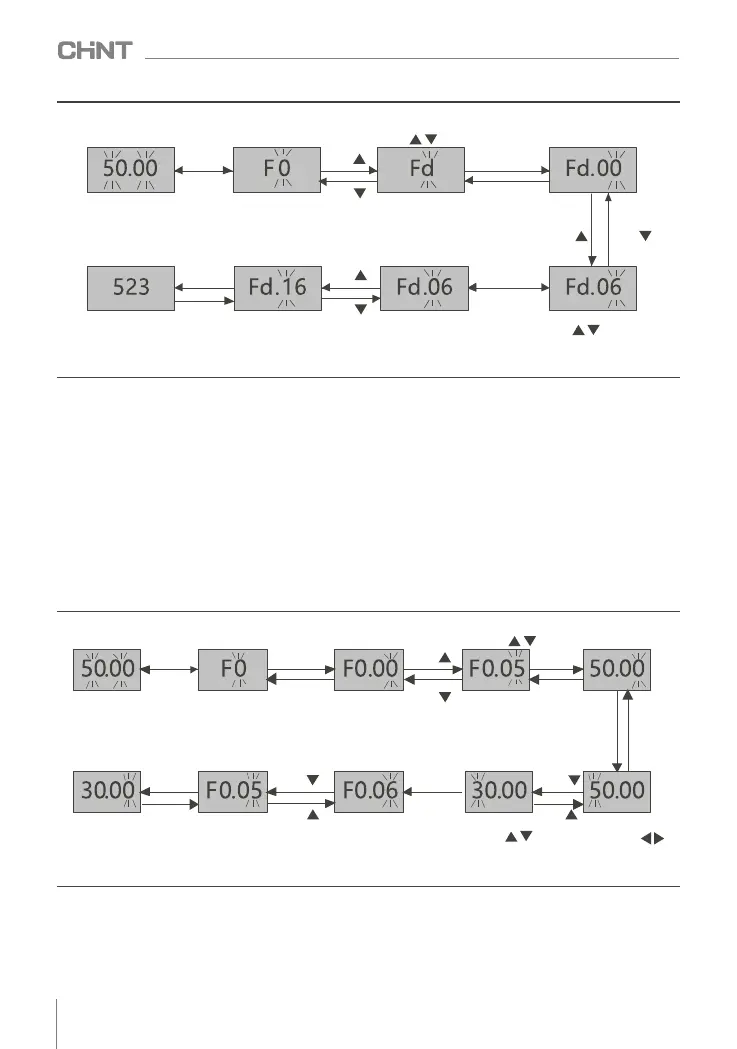

Figure 7.3 Example of reading read-only parameters
Figure 7.4 Operation example of modifying parameters
In the function parameter display state, if the parameter has no flashing bit, it means that the function code
cannot be modified, and the possible reasons are as follows:
(1) This function code is an unmodifiable parameter. Such as actual detection parameters, operation record
parameters, etc.;
(2) This function code cannot be modified in the running state, and can only be modified after stopping
the machine;
(3) Parameters are protected. When the function code F7.03 is 1 or 2 , the function code cannot be modified.
This is to protect the parameters from misoperation. For details, refer to the description of F7.03.
Example 2: modify parameters
When modifying parameters, take modifying the set frequency F0.05 as an example, modify 50.00Hz to
30.00Hz. The operation steps are as shown in Figure 7.4, and the operation methods of other modifiable
parameters can be deduced in the same way :
Standby status
50.00Hz flash
Press
PRG
1st level menu
Group F0
Press
SET
2nd level menu
Fd.00
Press
PRG
Press
Press
Modify index
number by
Press
SET
Parameter reading is:
50.00
Press
PRG
Press
SHIFT
Press
Press
Press
Press
Press
SET
Press
PRG
Press SET
Modify index
value by
Change modify
position by
Press SET and enter
the next index
Check the modified
parameter
Parameter is
modified to:30.00
Example 3: Modify the set frequency
After the inverter is powered on, the set frequency can be directly modified by pressing the ▲ or ▼ keys.
Example: To change the set frequency from 50.00Hz to 40.00Hz, the operation steps are as shown in Figure 7.5:
