CHINT NVF2G-S Series User Manual

Output current
Stall overcurrent point
Output frequency
Time
Time

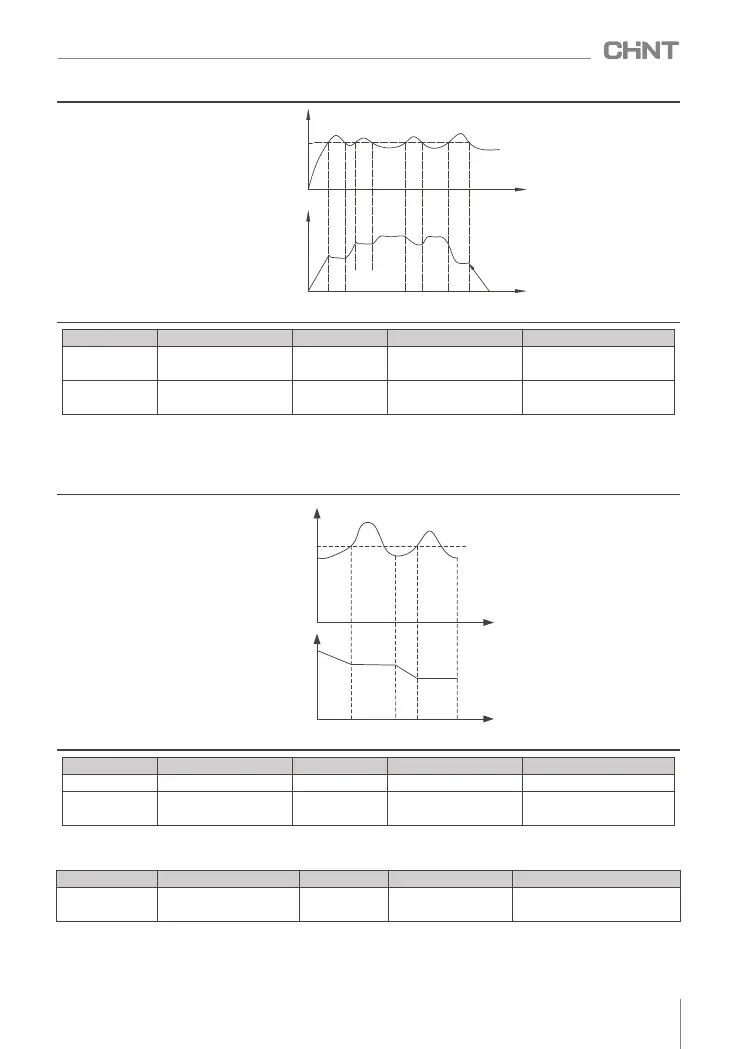

Figure 8 -7-1 Schematic diagram of overflow stall action
function code
name
default value
Predetermined area
Parameter Description
FE.07
Overrun stall gain
1
0~1
0: disabled
1: valid
FE.08
Overcurrent stall
protection current
150%
(100~200 )%
8.8 Overvoltage stall suppression
During the operation of the inverter, if the bus voltage exceeds the overvoltage stall protection voltage
FE.06, the overvoltage stall will take effect, adjust the output frequency, and the actual deceleration time will
be automatically lengthened to avoid trip protection.
Figure 8 -8-1 Schematic diagram of overvoltage stall action
Output voltage
Stall overvoltage
point
Output frequency
Time
Time
function code
name
default value
Predetermined area
Parameter Description
FE.05
Overvoltage stall gain
1
0~100
0: disabled
FE.06
Overvoltage stall
protection voltage
120%
(120~150)%
8.9 Protection function
8.9.1 Power - on start-up protection
function code
name
default value
Predetermined area
Parameter Description
F8.31
Boot Protection Selection
1
0~1
0: Startup protection is invalid
1: start protection is valid
The start protection of the inverter can be protected by parameter F8.31 startup protection : if the running
command is valid when the inverter is powered on (for example, the terminal running command is in the closed
state before power-on), the inverter will not respond to the running command, and must be turned off first. The
053
NVF2G-S Series Inverter User's Guide
