CHINT NVF2G-S Series User Manual

Standby status
50.00Hz flash
PressRUN,
Operating for a
while
Operation
frequency:
50.00Hz
Enter the
parameter group
F7.05
Press SET
Operation parameter display:
output frequency, set frequency,
bus voltage and output current
Operation parameter display:
output frequency, set frequency
Parameter
modify
Press
SET
Press PRG
Press PRG
Press
SHIFT
Setting
frequency Hz
lighting
Press
SHIFT
Check operation parameter by
SHIFT cyclic switching
Running frequency
Hz lighting
Press SET to enter next
index valus
Press
SHIFT
Press
SHIFT
Press
SHIFT
Present PLC segmeng
No lighting
PID feedback:
A+V lighting
Output currency:
A lighting
Bus voltage:
V lighting
7.3 Common parameters
7.3.1 Common parameters

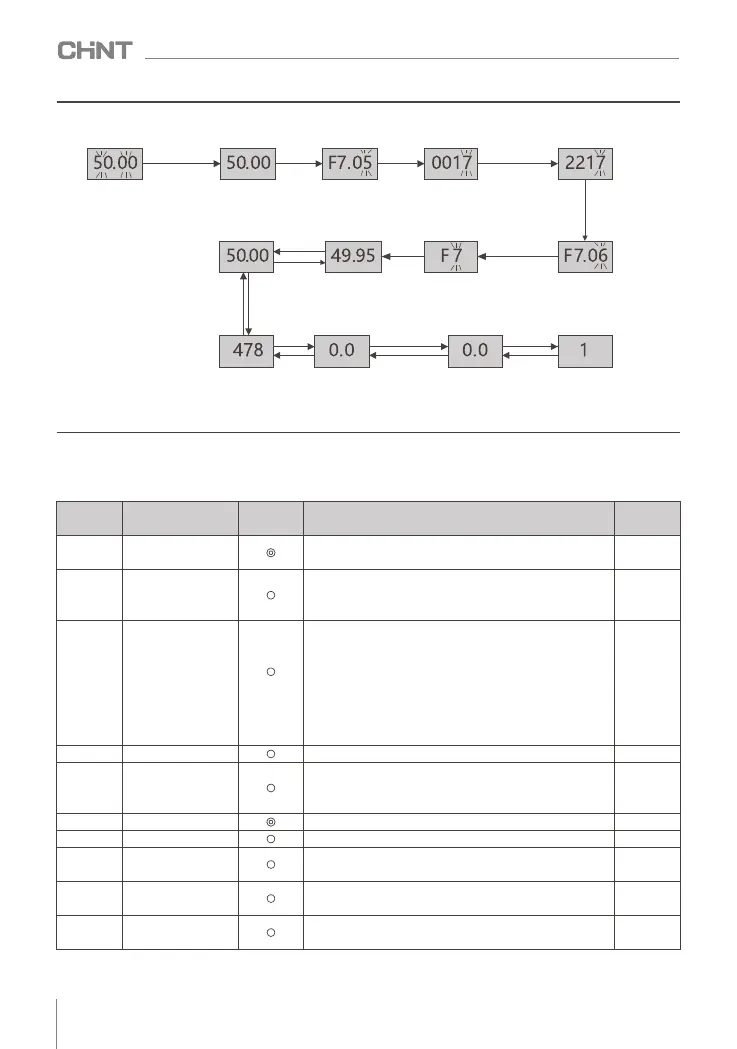

Figure 7.9 Operation example of monitoring running state parameters
Table 7.7 List of Common Parameters
function
code
name
Attributes
Detailed description of parameters
default
value
F0.00
control mode
selection
0: SVC control ;
1: V/ F control
1
F0.01
run command
channel selection
0 : keyboard control
1 : terminal control
2 : Communication Control
0
F0.02
Main frequency
source selection
0: digital setting;
1: AI1;
2: AI2;
3 : reserved ;
4 : reserved ;
5: Multi-segment instructions ;
6 : Simple PLC;
7 : Closed-loop PID;
8: Communication given frequency
0
F0.05
digital setting
F0.09～F0.08
50 .00Hz
F0.06
Motor running
direction
0 : default direction;
1 : reverse operation;
2: No reversing
0
F0.07
output frequency
F0.08～600.00Hz
50.00Hz
F0.08
frequency cap
F0.09～F0.07
50.00Hz
F0.09
Operating frequency
lower limit
0.00Hz～F0.08 0.00Hz
F0.14
Acceleration time 1
(0.0～6500.0)s
Model
confirmed
F0.15
Deceleration time 1
(0.0～6500.0)s
Model
confirmed
032
