General Information
1. General Information
1.1 Introduction
This manual contains specifications, installation, operation, and programming instructions of
63200 series high power electronic loads. All the machines are tested according to safety
standard EN61010-1: TYPE POLLUTION II and INSTALLTION CATEGORY II.
1.2 Description
The functions of the 63200 series loads are the same except the variations on input voltage,
load current, and power ratings. They can be operated independently in constant current
(CC) mode, constant resistance (CR) mode, constant voltage (CV) mode or constant power
(CP) mode.

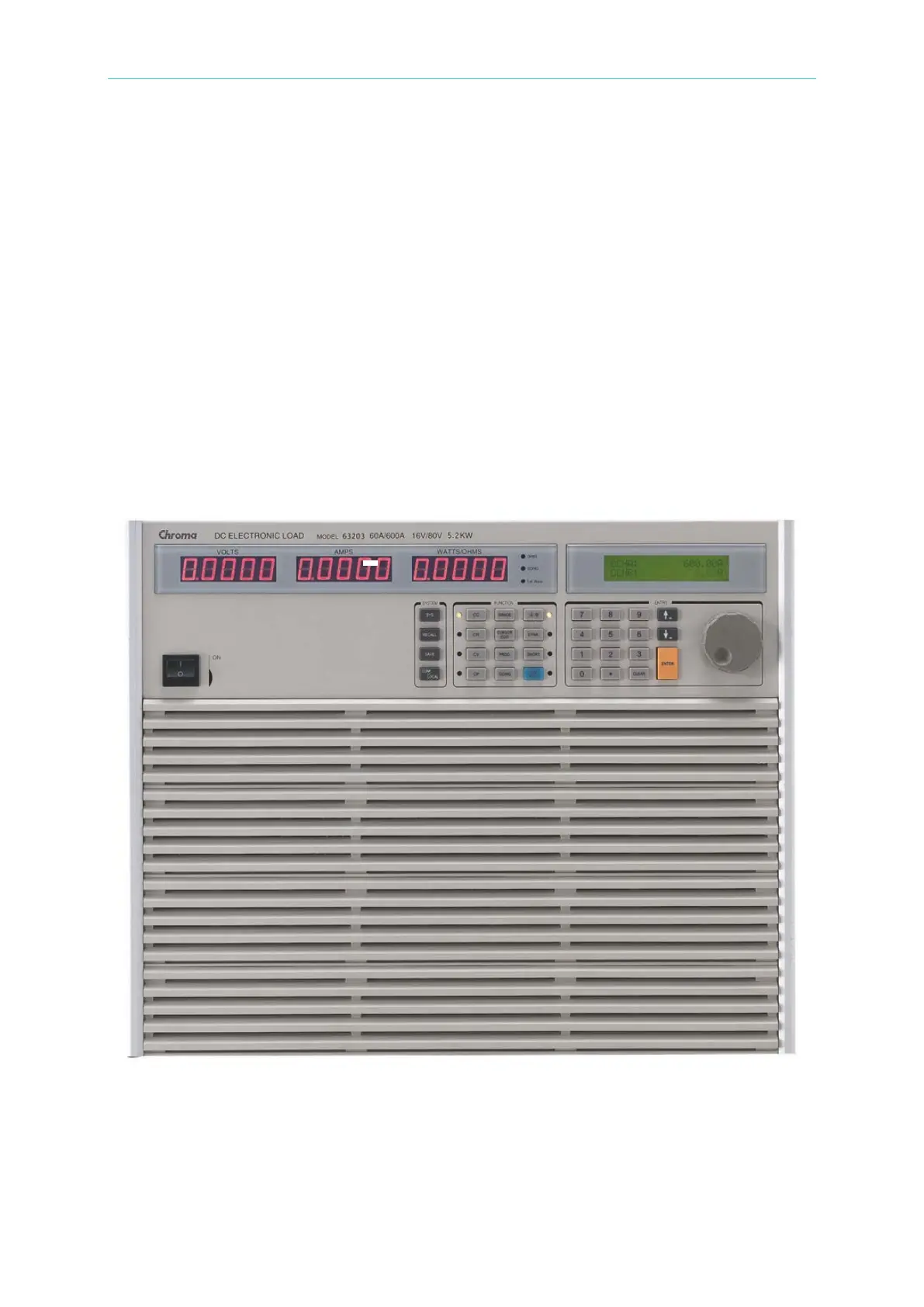

Figure 1-1 Front Panel of the Electronic Load
There are three groups of keypads on the electronic load front panel shown in Figure 1-1.
They are System keypad, Function keypad and Entry keypad from left to right.
