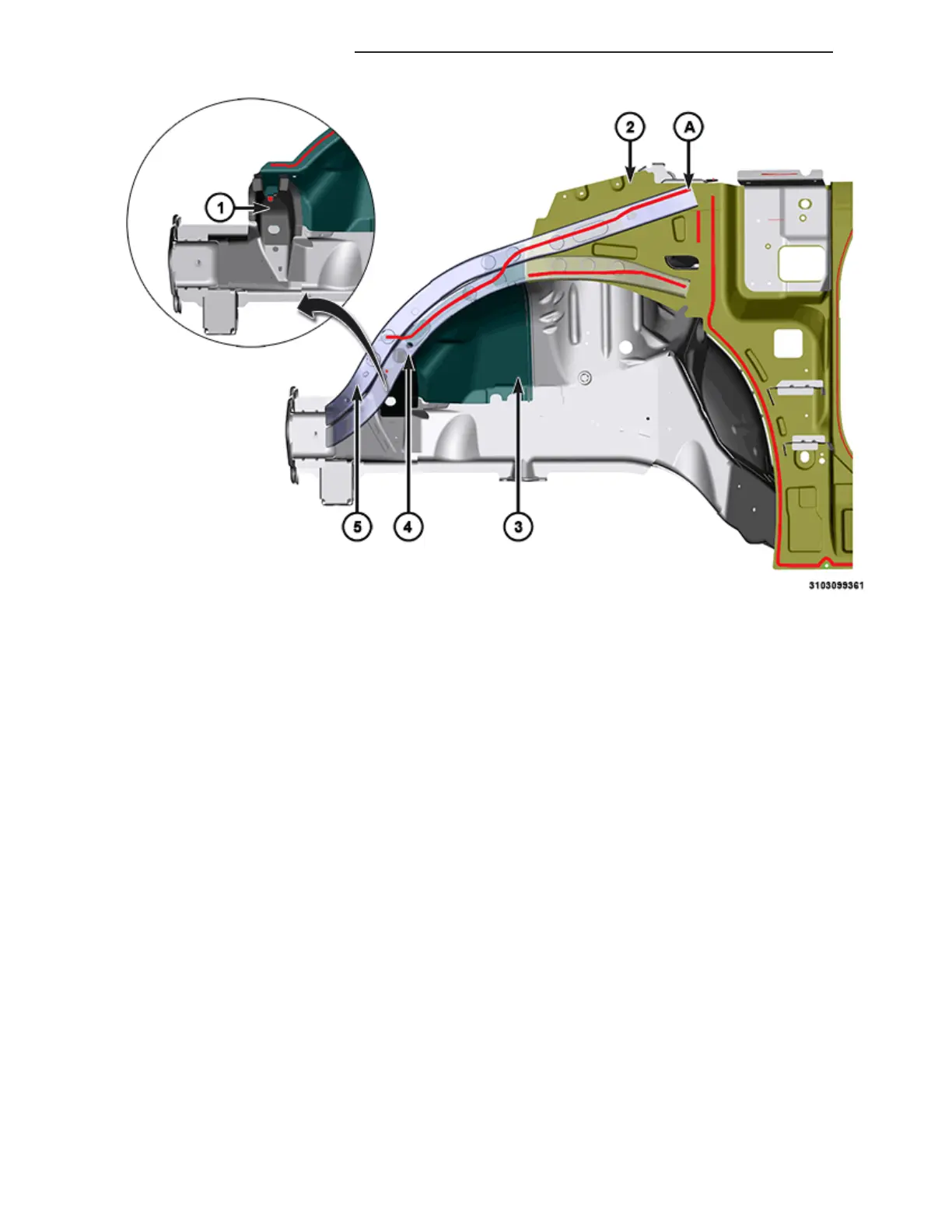

Cowl Side Panel and Load Path Beam
NOTE: Left side shown, right side similar.
1- Load Beam Bracket
2- Cowl Side Panel
3- Front Wheelhouse Panel
4- Lower Load Beam
5- Upper Load Beam
A- Structural Adhesive
