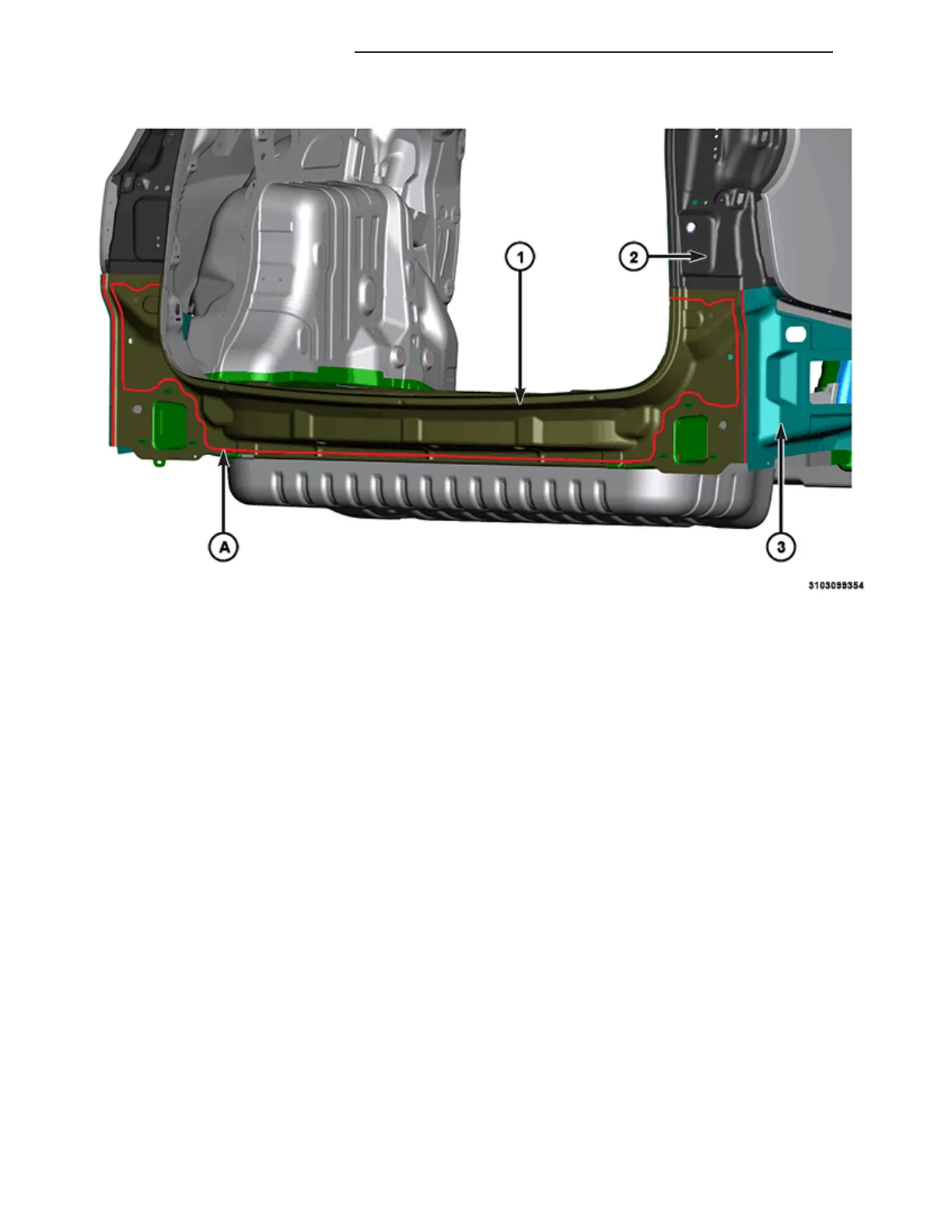

Rear Closure Outer Panel
NOTE: Right view side shown, left side similar.
1- Rear Closure Outer Panel (Transparent for clarity)
2- Liftgate Opening Drain Trough
3- Rear Bodyside Extension Panel
A- Structural Adhesive
31 - 152 31 - Collision Information RU
