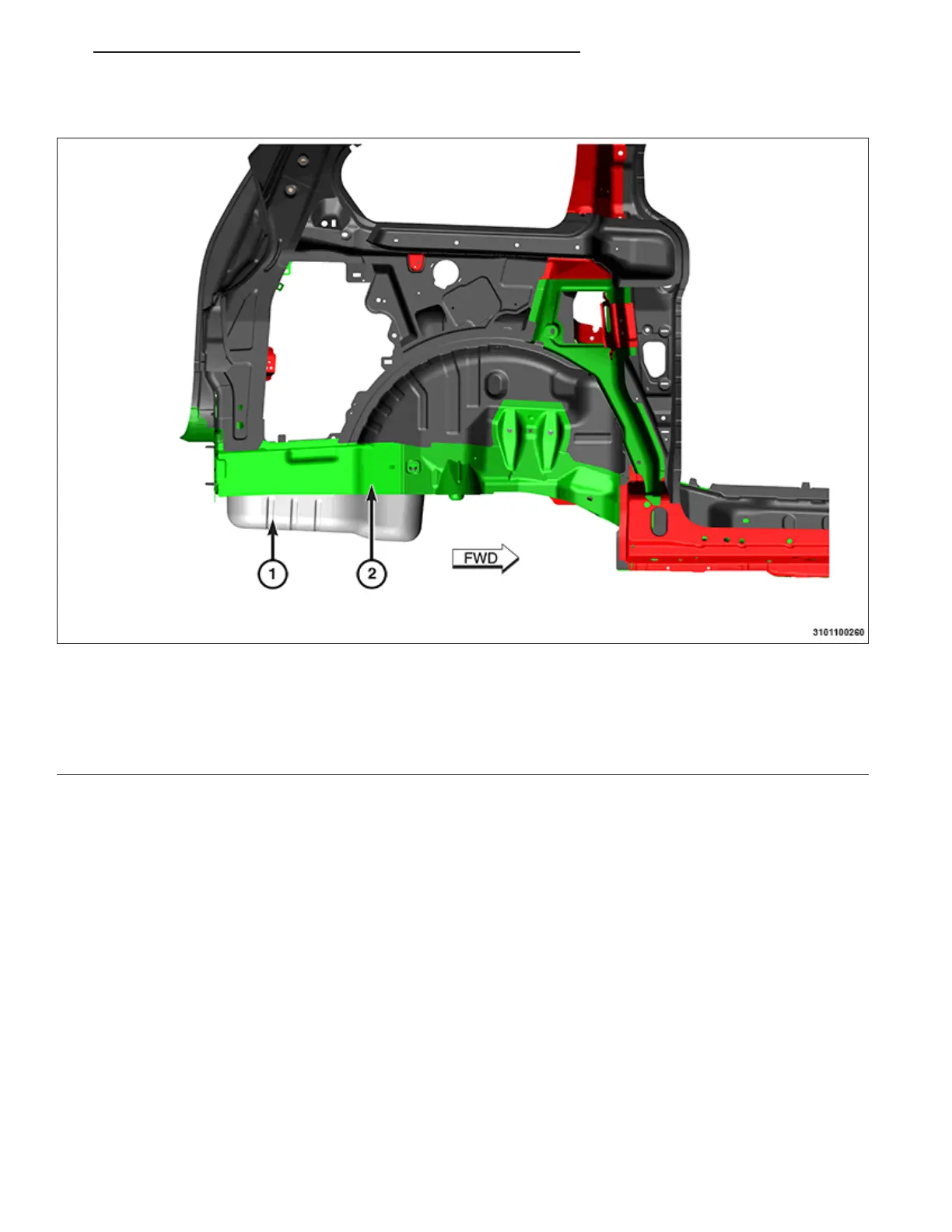

Rear Rail
NOTE: Right side shown, left side similar.
1 - Third Row Seat Tub (270 MPa)
2 - Rear Rail Cover (590 MPa)
WARNING: Sectioning of components may only be performed in the described areas if damage to
component does not extend past sectioning location. Should damage extend past sectioning
location entire component replacement is the only acceptable repair
WARNING: Failure to follow these directions may result in serious or fatal injury
Remove the 3rd row seat tub assembly (1) and the rear rail cover (2).
Rear Rail Cover
RU 31 - Collision Information 31 - 49
