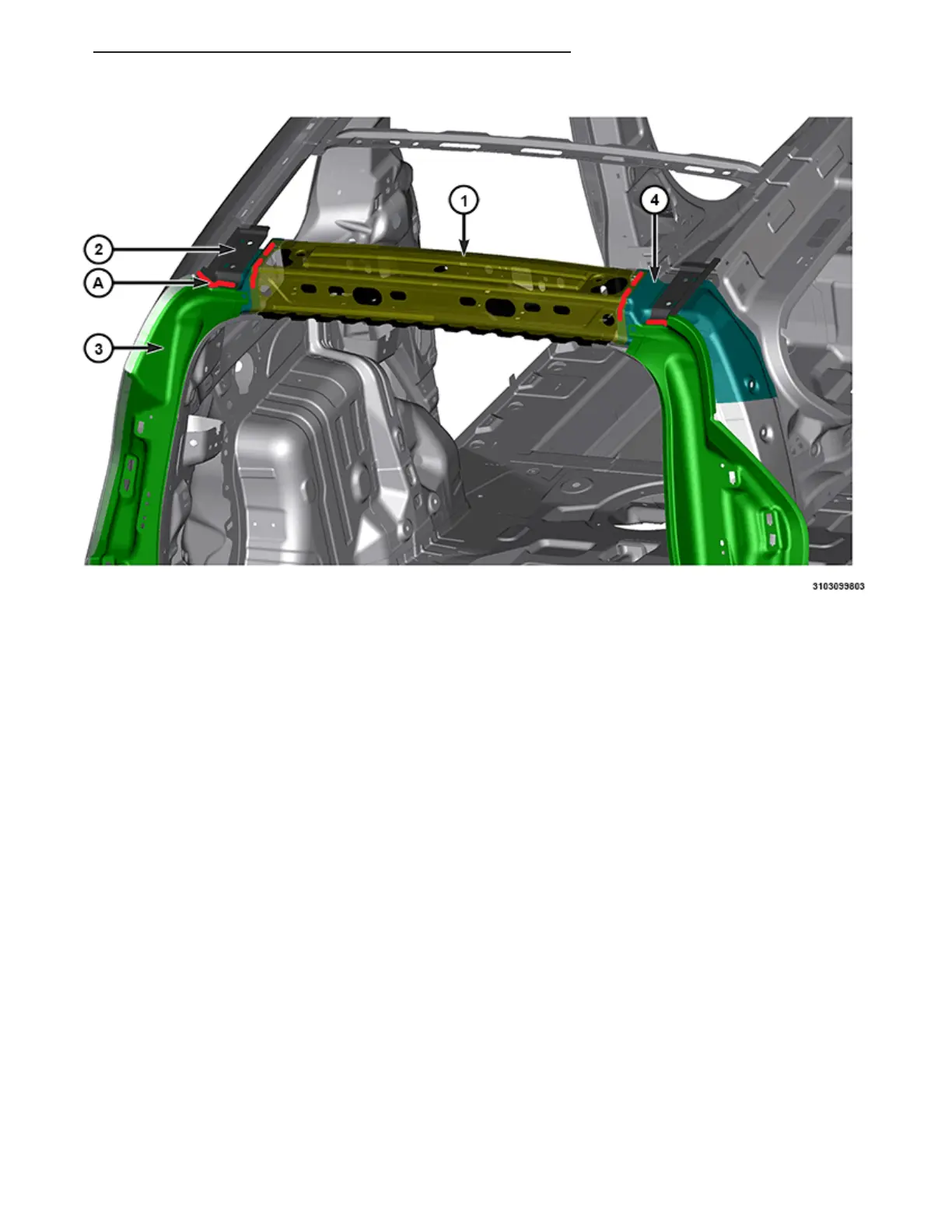

Rear Header Panel
1- Rear Header Panel (Transparent for clarity)
2- Hinge Closeout
3- Drain Trough Panel (Transparent for clarity)
4- D-pillar Reinforcement
A- Structural Adhesive
RU 31 - Collision Information 31 - 147
