FRAME DIMENSIONS
NOTE: Frame dimensions are listed in metric scale millimeter (mm). All dimensions are from center to
center of Principal Locating Point (PLP), or from center to center of PLP and fastener location.
VEHICLE PREPARATION-
Position the vehicle on a level work surface. Using screw or bottle jacks, adjust the vehicle PLP heights to the
specified dimension above a level work surface. Vertical dimensions can be taken from the work surface to the
locations indicated were applicable.
INDEX
DESCRIPTION FIGURE

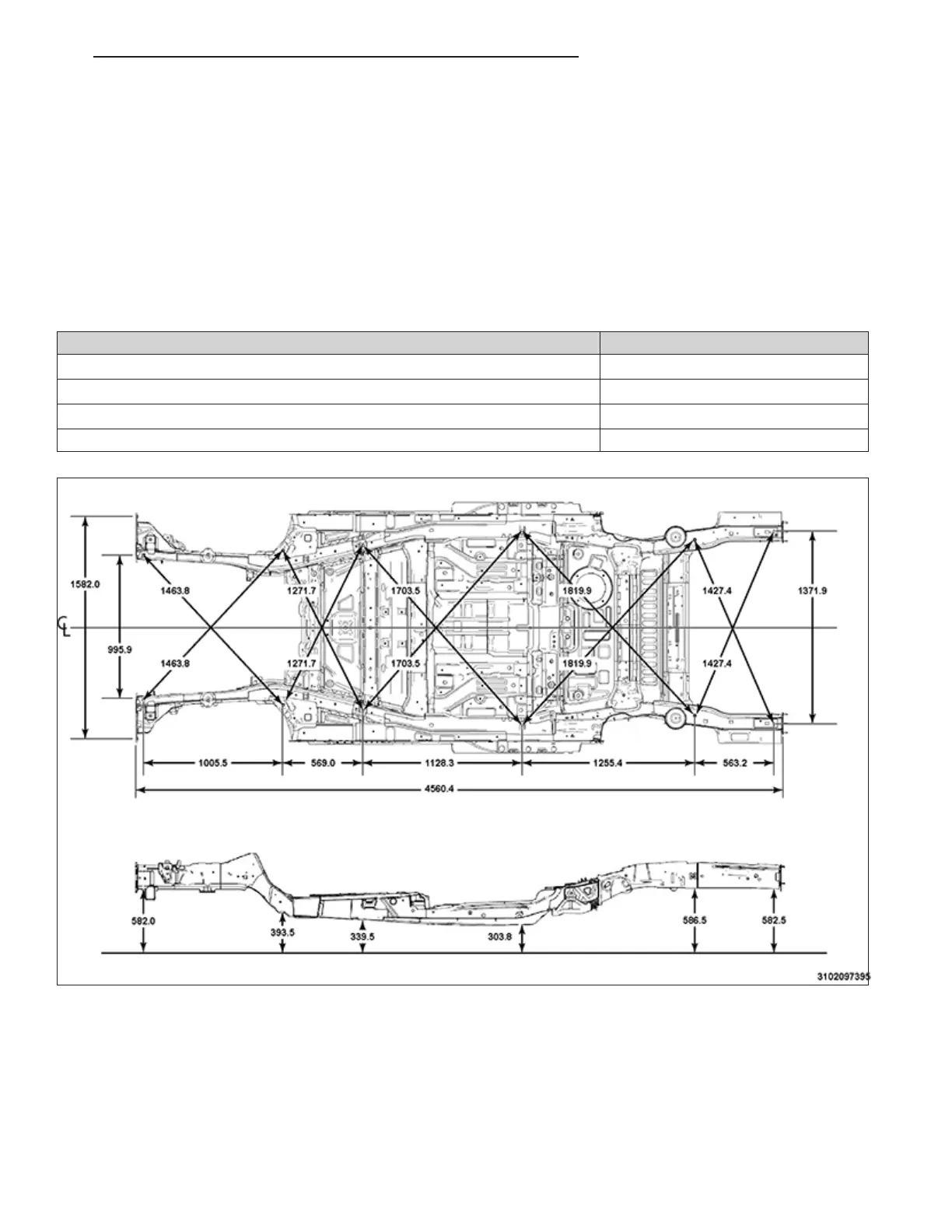

Under Body Dimensions
Figure 1
Under Hood Dimensions (1 of 2) Figure 2
Under Hood Dimensions (2 of 2) Figure 3
Front View Dimensions Figure 4
Under Body Dimensions
RU 31 - Collision Information 31 - 65
