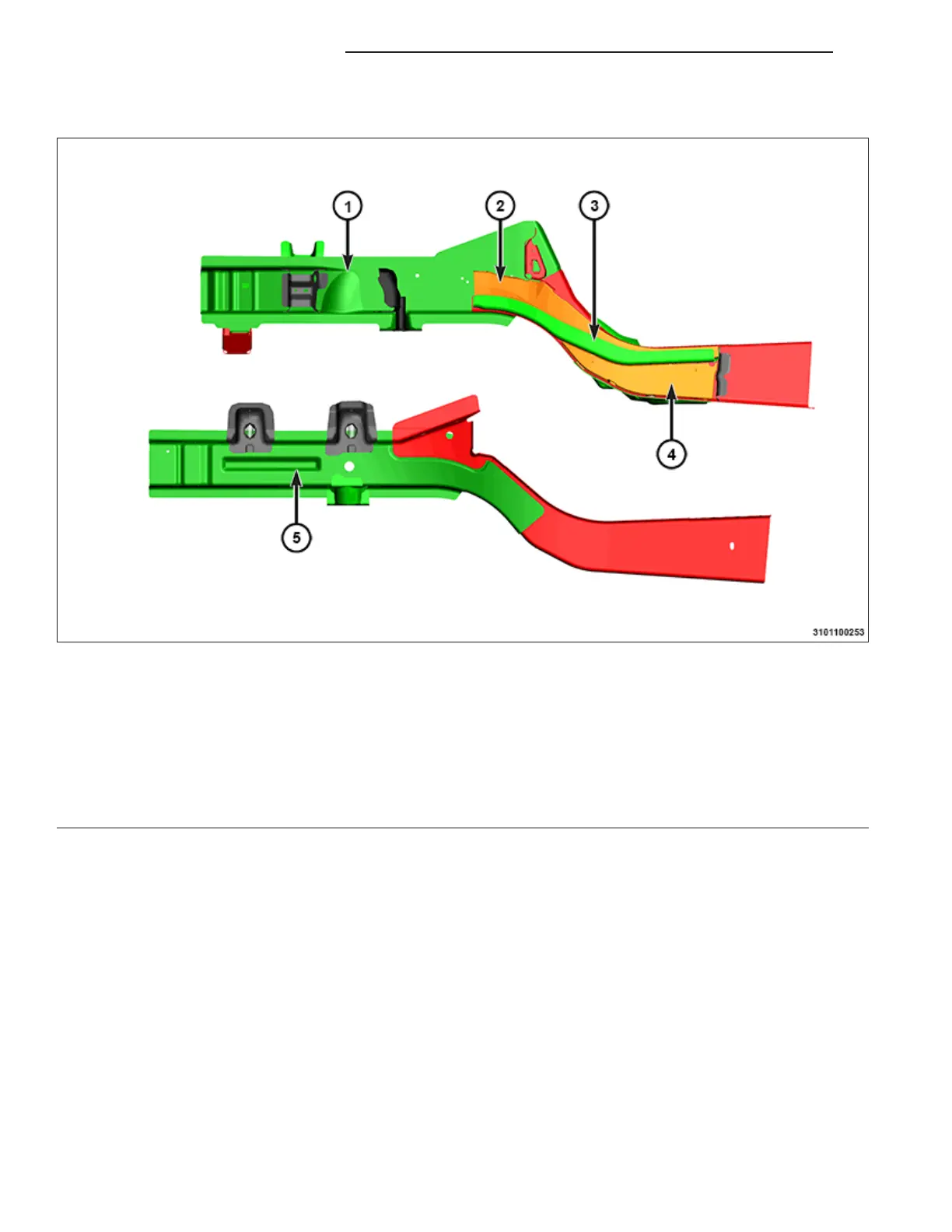

Power Hybrid Electric Vehicle (PHEV) Front Frame Rail
NOTE: Right side shown, left side similar.
1 - PHEV Front Frame Rail Assembly (shown with Inner Front Frame Rail removed for clarity)
2 - Front Frame Rail Upper Composite Insert
3 - Side Front Frame Rail To Dash Panel Reinforcement (410 MPa)
4- Front Frame Rail Lower Composite Insert
5- Front Frame Rail Assembly
WARNING: Composite Reinforcements must be installed to maintain component strength standards.
NOTE: PHEV front rail will utilize the same sectioning locations as the standard front rail.
NOTE: It will be necessary to order the complete front rail and create the sectioning portions at the same
cut lines.
The PHEV Front Rail (1) will differ from the other models of RU. The PHEV will contain two composite
reinforcements. An upper composite insert (1) above the side front frame rail to dash panel reinforcement (3) and a
lower composite insert (4).
31 - 42 31 - Collision Information RU
