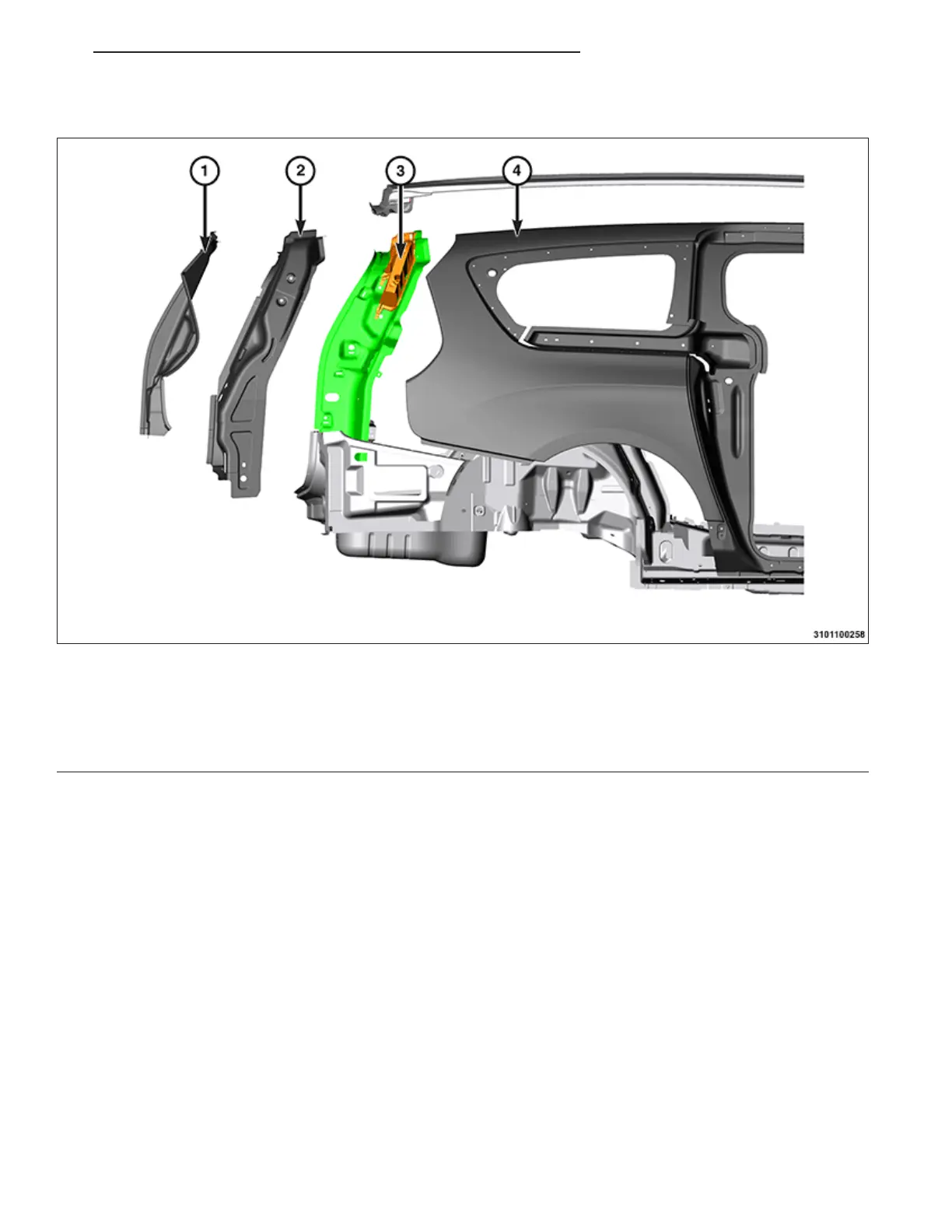

Roof D-pillar Composite Reinforcement
1- Drain Trough Panel
2- D-pillar Outer Reinforcement
3- D-pillar Composite Reinforcement
4- Outer Bodyside Aperture Panel
WARNING: Composite Reinforcements must be installed to maintain roof strength standards
WARNING: Failure to follow these directions may result in serious or fatal injury
If the D-pillar composite reinforcement (3) or any component that makes contact with the reinforcement is replaced it
will need to be secured. Composite Reinforcements absolutely must be reinstalled.
Replace the new or the re-used undamaged, D-pillar composite reinforcement with structural adhesive during the
repair process. Approved structural adhesive include LORD Fusor 112B and 3M 08116.
When mounting the D-pillar composite reinforcement (3) align the front alignment tab with the corresponding hole in
the D-pillar inner upper reinforcement.
Composite Reinforcement
RU 31 - Collision Information 31 - 47
