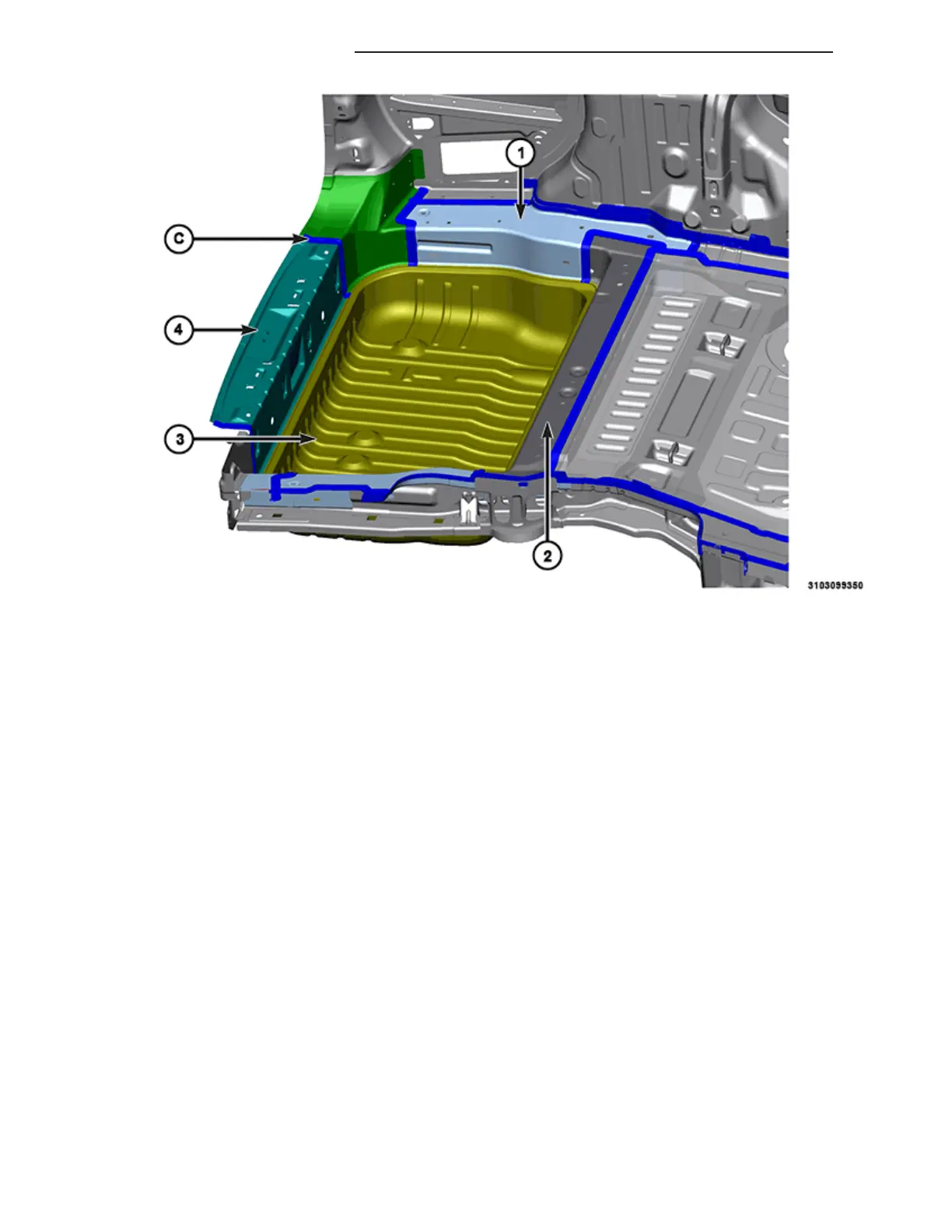

Rear Interior
NOTE: Left side view shown, right side similar.
1- Rear Frame Rail Reinforcement
2- Third Row Crossmember
3- Third Row Seat Tub
4- Rear closure Inner Panel
C- Seam Sealer
31 - 146 31 - Collision Information RU
