BODY OPENING DIMENSIONS
NOTE: Body opening dimensions are listed in metric scale millimeter (mm). Principal Locating Points
(PLP), fastener locations, and holes are measured to center, unless noted otherwise.
Position the vehicle on a level work surface. Remove any weatherstrips, door strikers or any other parts that may
interfere with the reference point.
DESCRIPTION FIGURE

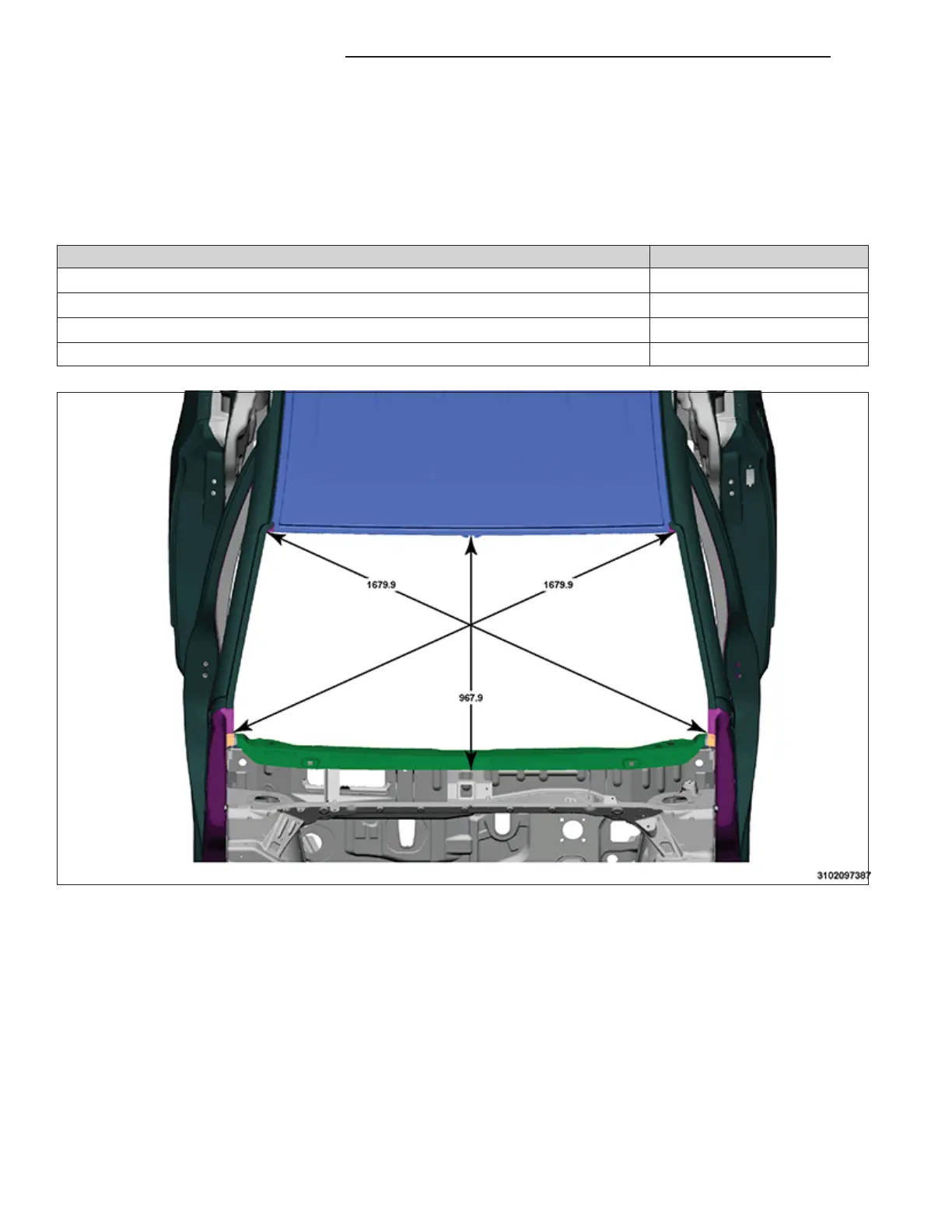

Windshield Opening
Figure 1
Front Door Opening Figure 2
Sliding Door and Quarter Glass Opening Figure 3
Liftgate Opening Figure 4
Windshield Opening
