Test Weld Coupon
NOTE: Periodically check the electrodes tips to
determine wether the faces have been
contaminated, damaged or increased in size.
If any of these conditions have occurred,
replace or re-face the electrode tips per
equipment manufacturer recommendations.

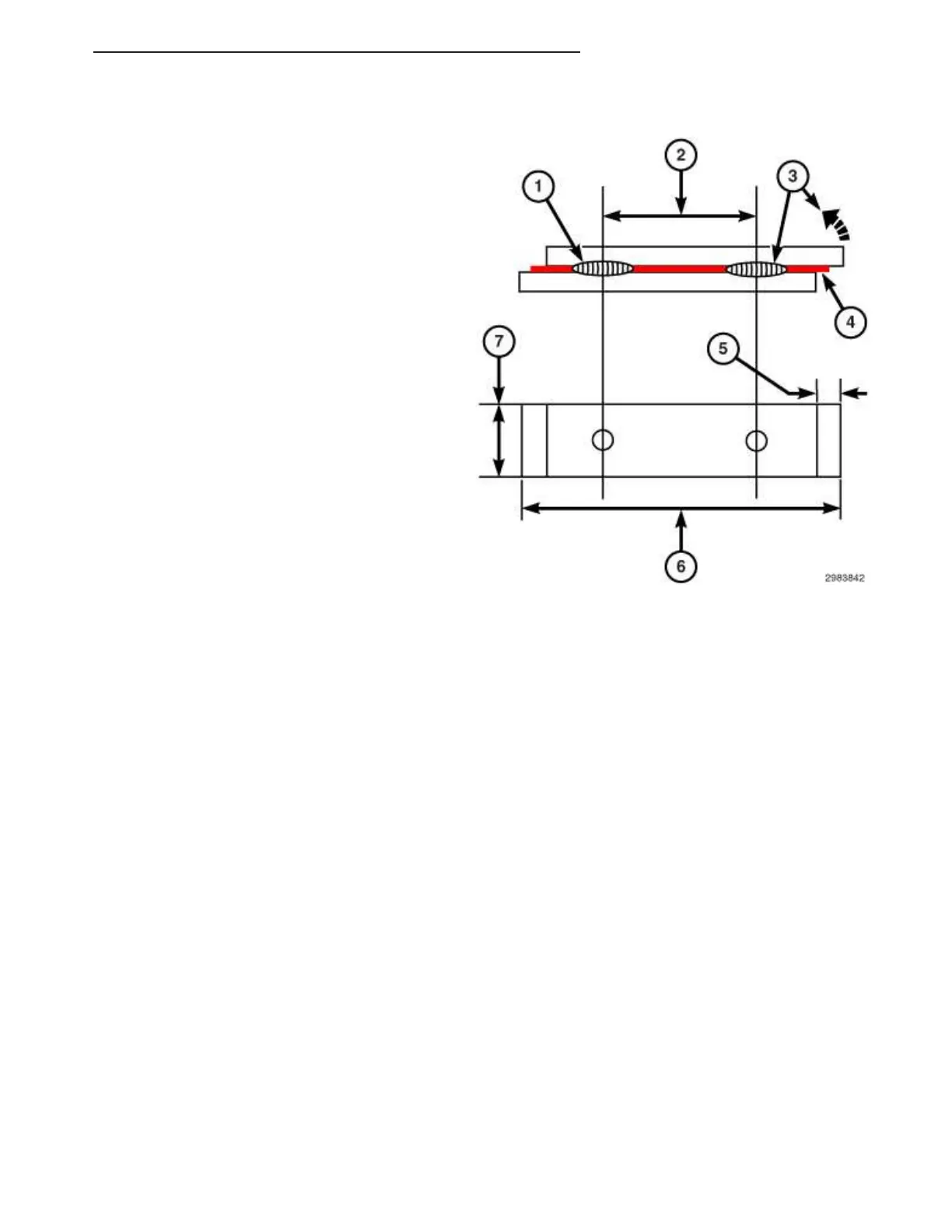

Weld Coupon
1 - FIRST WELD TOWARD END OF COUPON, AT LEAST
12.5 mm. (0.5 in.) FROM ANY EDGE
2 - DISTANCE MUST EQUAL THE SPACING FROM THE
REPAIR WELD TO THE CLOSEST EXISTING WELD ON
THE VEHICLE
3 - TEST THE SECOND WELD BY PEELING APART IN
DIRECTION SHOWN (USING PLIERS OR EQUIVALENT
4 - STRUCTURAL ADHESIVE
5 - APPROXIMATELY 13 mm. (0.5 in.)
6 - APPROXIMATELY 100 mm. (4 in.)
7 - APPROXIMATELY 25 mm. (1 in.)
RU 31 - Collision Information 31 - 35
