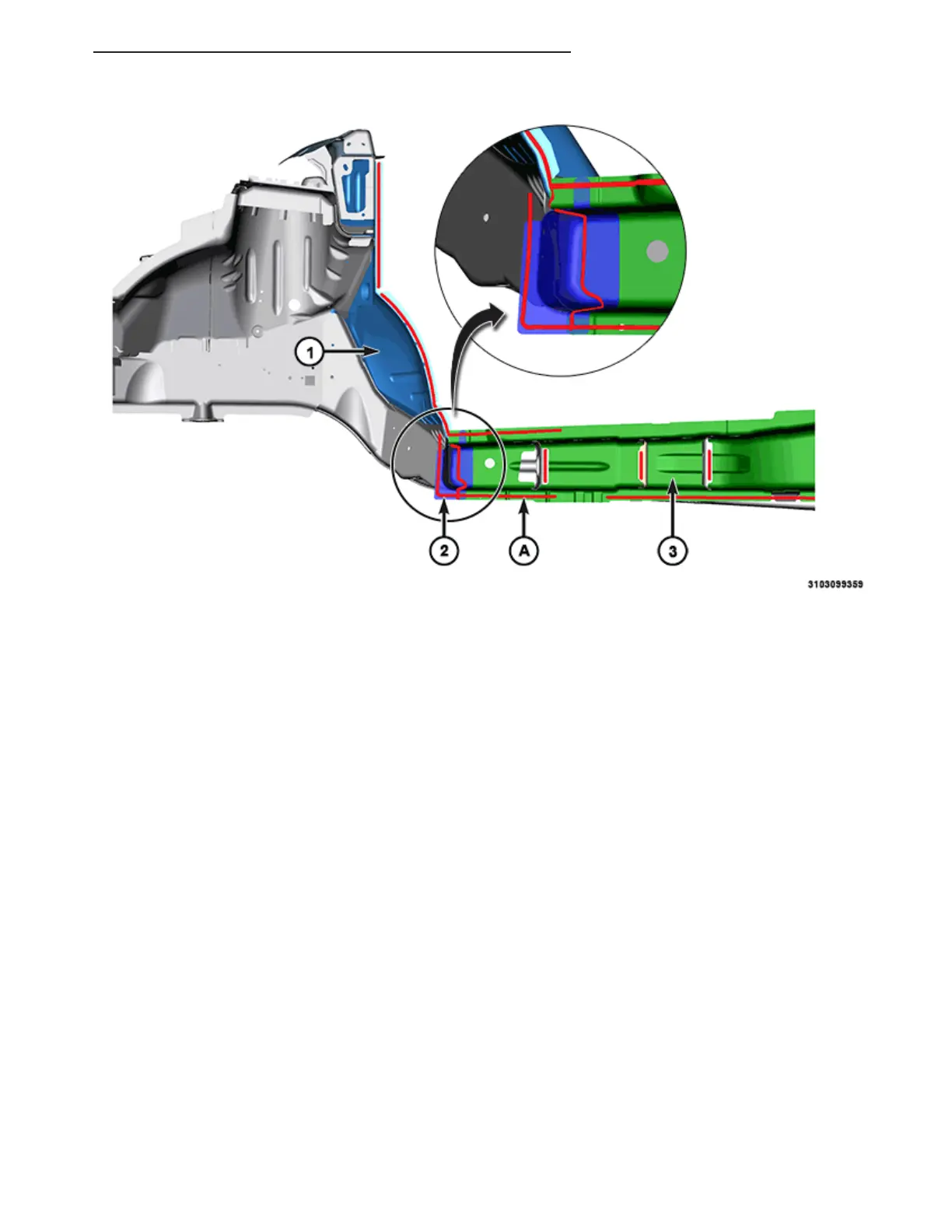

Sill Inner Reinforcement
NOTE: Left side shown, right side similar.
1- Dash Panel
2- Inner Sill Front End Cap (Transparent for clarity)
3- Inner Sill Reinforcement
A- Structural Adhesive
RU 31 - Collision Information 31 - 115
