Reset Button 9-
The 5150 has a reset button. To avoid accidentally triggering the reset button,
it is recessed behind the faceplate. You will need a straightened paper clip or
similar small tool to depress the reset button. The reset button is located to the
left of the management port on the far right of the chassis.

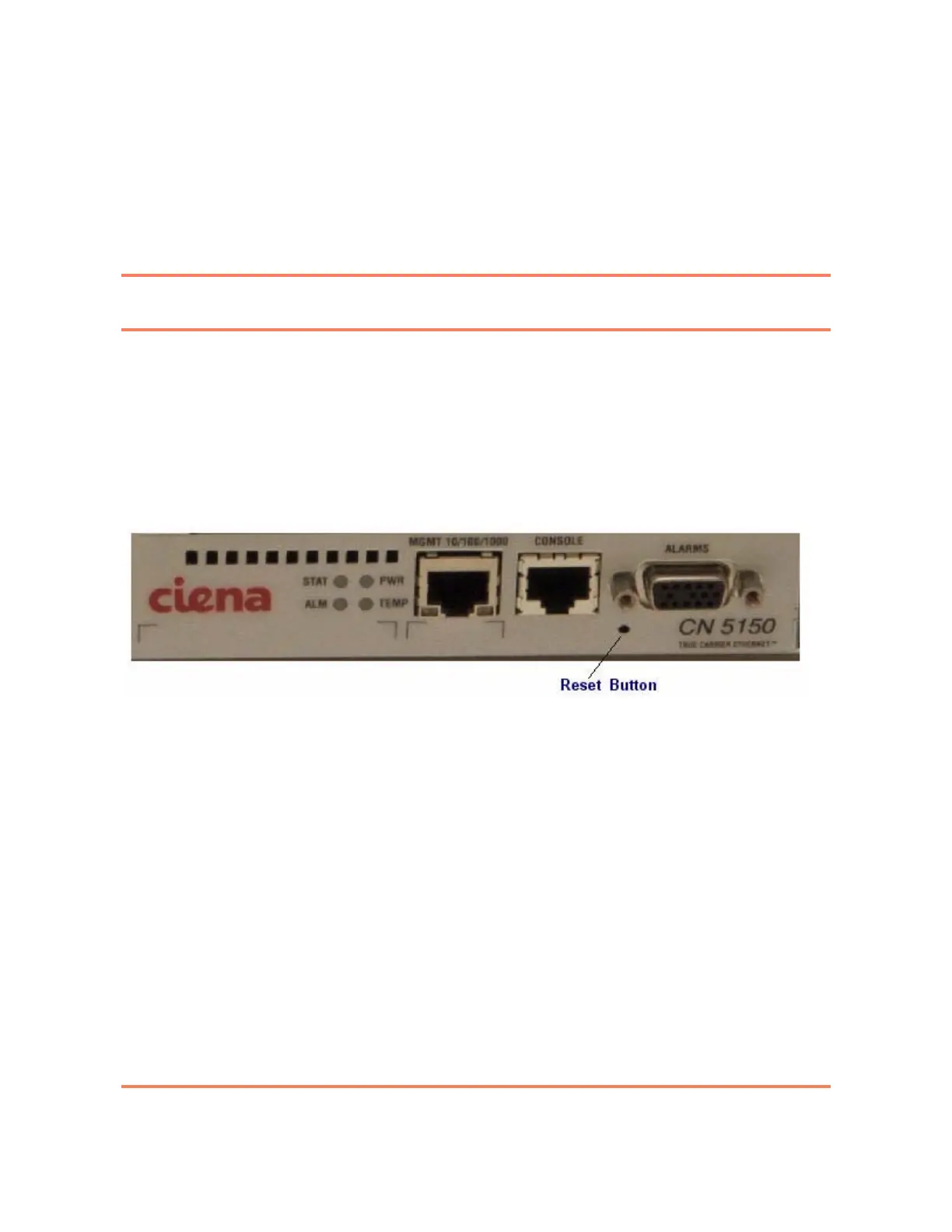

Figure 9-1 shows the location of the reset button.
Figure 9-1
Location of the 5150 Reset Button
There are two different types of resets available:
• Quick reset, which is accomplished by depressing the reset button for less
than three seconds. A quick reset reboots the system with the current
saved configuration.
• Hard reset, which is accomplished by depressing the reset button for three
seconds or more continuously. A hard reset erases the current
configuration and restores the unit to the factory default settings. See
39XX/51XX Product Fundamentals for more information about the factory
default settings.
Note: It is also possible to initiate soft resets of the system through the
local console port, local management port, or the management VLAN.
Instructions for initiating a soft reset are included in the 39XX/51XX
Command Reference.
