TRANSTIG 170Pi
Manual 0-5242 4-5
OPERATION

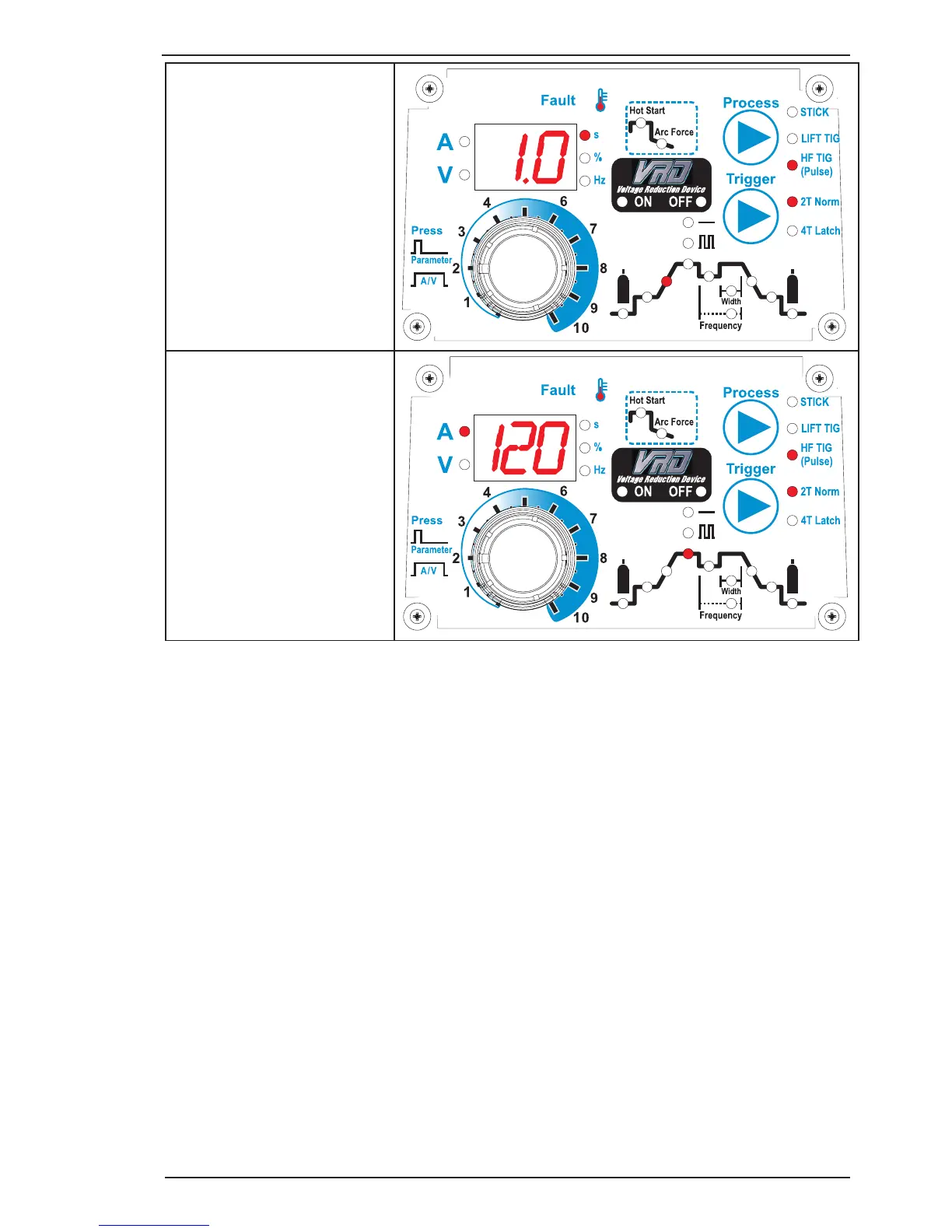

Up Slope
This parameter operates in TIG
modes only and is used to set the
time for the weld current to ramp
up from INITIAL current to BASE
current.
Range is 0.0 to 15.0 seconds.
Factory default is 1.0 second.
Base Current
In DC TIG mode, this parameter
sets the TIG welding current. In
PULSE TIG mode, this parameter
sets the PEAK current.
Range is 5 to 170A. Factory default
is 120A.
